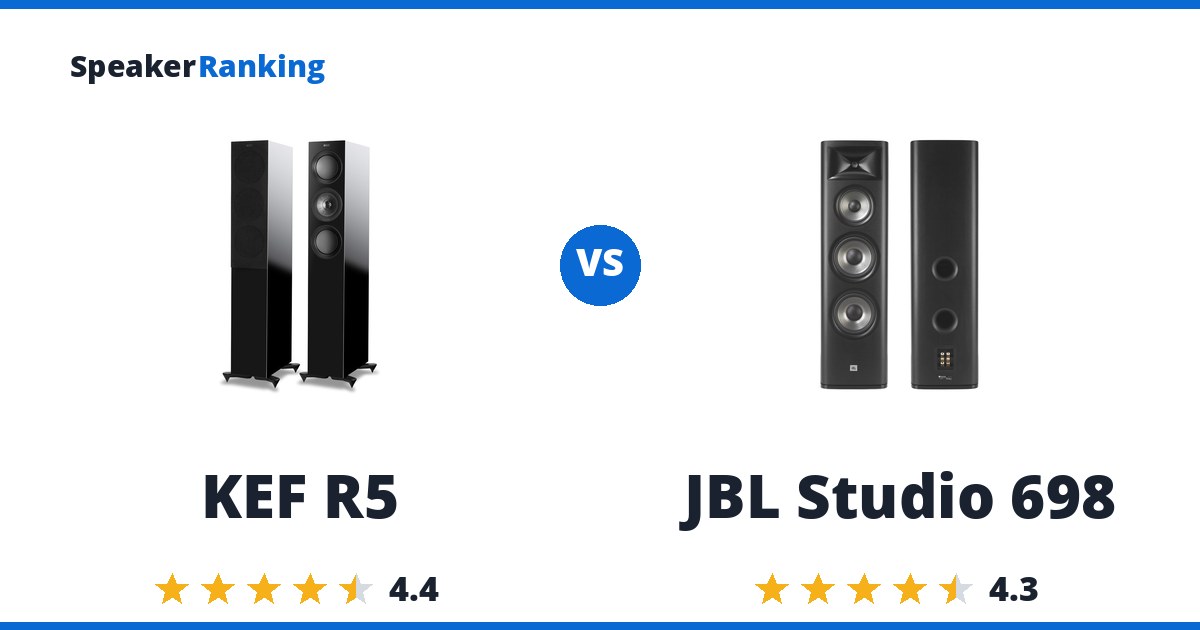

Short answer: the KEF R5 for better sound quality, the JBL Studio 698 for the lower price. The KEF R5 ranks #9 of 56 floorstanding speakers at $2999. The JBL Studio 698 ranks #16 at $699, $2300 cheaper.
On the KEF R5 side: Slim three-way tower with the acoustic advantages of KEF’s coincident Uni-Q midrange/tweeter: horizontal and vertical off-axis responses track the direct sound smoothly. Set against that: The unusual gap between 77Hz F3 and 33Hz F10 indicates a gradual bass contour rather than flat deep-bass output; a subwoofer and roughly 80Hz high-pass are recommended for high-level playback.
The case for the JBL Studio 698: High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. The tradeoff: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ.
Buy the KEF R5 if sound quality matters more than the price. Buy the JBL Studio 698 if the price matters more than sound quality.
Specifications Side By Side
| KEF R5 | JBL Studio 698 | |
|---|---|---|
| Price | $2,999/pair Discontinued | $699.00 |
| Ranked | #9 of 56 in Large Size Floorstanding Speakers | #16 of 56 in Large Size Floorstanding Speakers |
| Bass Extension (-3dB) | 77Hz (measured, Erin’s Audio Corner) | 53Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-10dB) | 33Hz (measured, Erin’s Audio Corner) | 34Hz (measured, Erin’s Audio Corner) |
| Sensitivity | Approximately 86dB/2.83V/1m (measured, Erin’s Audio Corner) | 90dB (measured average, Erin’s Audio Corner) |
| Impedance | Approximately 3.5 ohms minimum near 150Hz (measured, Erin’s Audio Corner) | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin’s Audio Corner) |
| Drivers | 1" aluminum tweeter coaxial with 5" midrange; dual 5.25" woofers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers |
| Dimensions | 40.4"H x 6.9"W x 13.5"D | 41.7"H x 11.8"W x 15.7"D (1058 x 300 x 400 mm) |
| Discontinued | Yes | - |
| Weight | 59.5 lb each | 78.9 lbs / 35.8 kg each |
| Woofer Cabinet | ported, rear | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Revel F206 vs Q Acoustics 5040
- Revel F206 vs Polk Audio Reserve R700
- Revel F208 vs Revel F206
- KEF R5 vs Focal Chora 816
- KEF R5 vs Revel Concerta2 F35
The Two Speakers In Full
KEF R5: $2,999/pair Discontinued
Pros: Slim three-way tower with the acoustic advantages of KEF’s coincident Uni-Q midrange/tweeter: horizontal and vertical off-axis responses track the direct sound smoothly, producing stable imaging and a well-behaved directivity index. Erin measured deep low-frequency reach for the cabinet width—77Hz F3 but 33Hz F10—and less than 1% harmonic distortion at 86dB. At 96dB it remains clean when high-passed, and its mild response deviations are suitable for equalization because the radiation pattern stays orderly.
Cons: The unusual gap between 77Hz F3 and 33Hz F10 indicates a gradual bass contour rather than flat deep-bass output; a subwoofer and roughly 80Hz high-pass are recommended for high-level playback. Erin measured a minimum near 3.5 ohms around 150Hz, although most of the curve remains above 4 ohms, so amplifier quality still matters. Sensitivity is approximately 86dB/2.83V/1m. At 102dB, compression reaches roughly 1dB around 150Hz, showing the limits of the twin 5.25-inch woofers. This original model lacks the Meta version’s MAT rear-wave absorption. Discontinued.
Full KEF R5 review and specifications →
| Bass Extension (-10dB) | 33Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 77Hz (measured, Erin's Audio Corner) |
| Dimensions | 40.4"H x 6.9"W x 13.5"D |
| Discontinued | Yes |
| Drivers | 1" aluminum tweeter coaxial with 5" midrange; dual 5.25" woofers |
| Impedance | Approximately 3.5 ohms minimum near 150Hz (measured, Erin's Audio Corner) |
| Sensitivity | Approximately 86dB/2.83V/1m (measured, Erin's Audio Corner) |
| Weight | 59.5 lb each |
| Woofer Cabinet | ported, rear |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
JBL Studio 698: $699.00 Amazon Crutchfield
Pros: High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. Dual 8” PolyPlas woofers deliver robust low-end authority with solid bass extension down to an F3 of 53Hz and F10 of 34Hz. High voltage sensitivity (90dB SPL at 2.83V/1m) and clean power handling provide effortless dynamic headroom and low distortion for home theater and music listening.
Cons: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ. Treble response lacks top-octave ‘air’ above 12kHz compared to high-end dome or ribbon tweeters. Physically large, heavy cabinet (35.8 kg per speaker) requires careful room placement and a wide acoustic footprint.
Full JBL Studio 698 review and specifications →
| Bass Extension (-10dB) | 34Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 53Hz (measured, Erin's Audio Corner) |
| Dimensions | 41.7"H x 11.8"W x 15.7"D (1058 x 300 x 400 mm) |
| Drivers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers |
| Impedance | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin's Audio Corner) |
| Sensitivity | 90dB (measured average, Erin's Audio Corner) |
| Weight | 78.9 lbs / 35.8 kg each |
| Woofer Cabinet | ported, rear |
