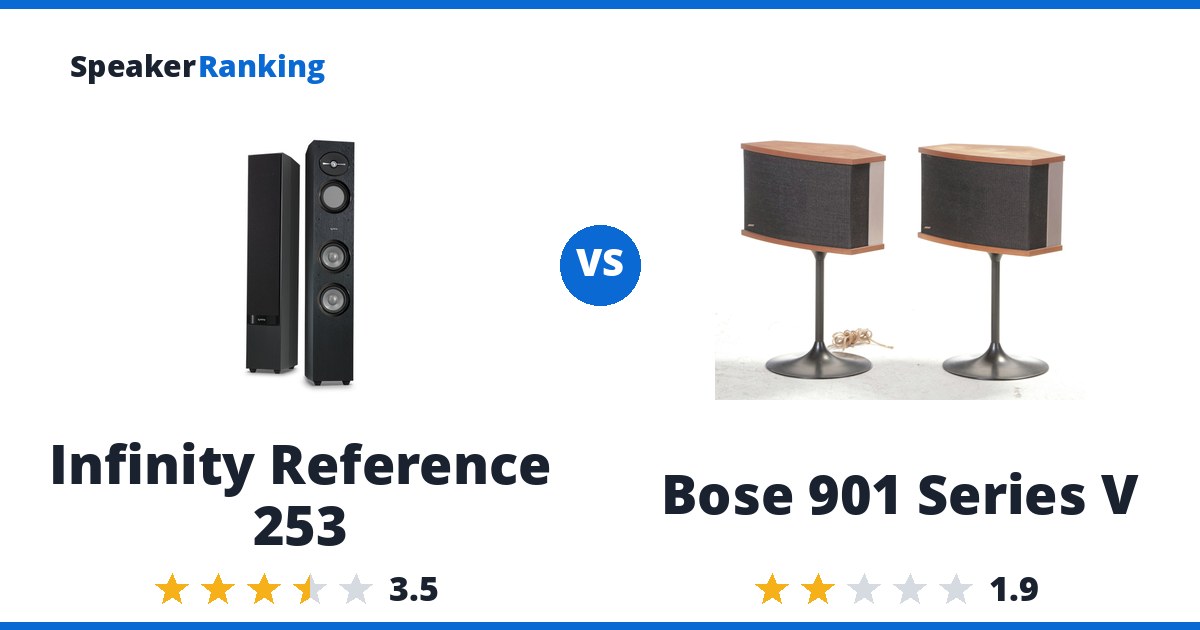

Infinity Reference 253 vs Bose 901 Series V

Short answer: the Infinity Reference 253, unless you specifically want the Bose 901 Series V’s room-filling presentation. The Infinity’s horizontal beamwidth of about ±60 degrees is smooth and controlled, but its spinorama shows treble above 4kHz as too hot, a dip around 2kHz and bass shelved down. The Bose uses eight rear-firing plus one front-firing driver, yet Erin measured only about 81dB sensitivity with very high distortion.

Buy the Infinity Reference 253 only if you find one used in good condition; both are discontinued, and it is the better rated of the two. For a new speaker, start with the MoFi SourcePoint V10 Master Edition instead.

Looking for alternatives? See the complete Passive Home rankings.

Specifications Side By Side

Related Speaker Comparisons

More worthwhile head-to-heads for Infinity Reference 253:

• Revel F226Be vs Infinity Reference 253
• KEF Reference 203 vs Infinity Reference 253
• JBL HDI-3800 vs Infinity Reference 253
• Focal Chora 816 vs Infinity Reference 253
• Revel F208 vs Infinity Reference 253

Prices on this page were last checked October 2, 2026 at 10:18 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

The Two Speakers In Full

Infinity Reference 253: $400 per pair used Discontinued eBay

Pros: Horizontal beamwidth of about ±60 degrees is fairly smooth and well controlled. Really amazing value for the performance. Measured bass extension of 78Hz (-3dB), with a measured sensitivity of 86.9dB.

Cons: CEA2034 spinorama and predicted in-room response both show elevated treble above 4kHz (“too hot”), a dip around 2kHz, and bass shelved down relative to the midrange. Vertical directivity requires staying at or below the tweeter axis for accurate tonal balance. Distortion at 96dB SPL/1m is broadly elevated above the reviewer’s audibility threshold across much of the midrange. Minimum impedance dips to 4.2 ohms. Discontinued.

Full Infinity Reference 253 review and specifications →

Bass Extension (-10dB)	38Hz (measured, Audio Science Review)
Bass Extension (-3dB)	78Hz (measured, Audio Science Review)
DIY Kit	No
Dimensions	40.3”H x 6.8”W x 12.4”D (1023.6 x 172.7 x 315 mm)
Drivers	Dual 5.25” (130mm) CMMD™ woofers, 5.25” (130mm) flat-piston CMMD™ midrange, 1” (25mm) CMMD™ tweeter
Impedance	6 ohms
Sensitivity	86.9dB (measured by Audio Science Review; 88dB manufacturer specified)
Spinorama Preference Score	5.43 (spinorama.org)
Spinorama Preference Score with Perfect Sub	7.31 (spinorama.org)
Weight	39.2 lbs (17.8 kg) each
Woofer Cabinet	ported, rear

• Links
  • Official Infinity Reference 253 Website
• Reviews, Comparisons and Sound Samples
  • Audio Science Review Infinity Reference 253 More from Audio Science Review →
  • Audio Science Review Measurements (spinorama.org)
• Head-to-Head Comparisons
  • Infinity Reference 253 vs Magnepan LRS+
  • Infinity Reference 253 vs Polk Signature Elite ES60
  • Infinity Reference 253 vs JBL Stage 2 280F
  • Infinity Reference 253 vs Focal Aria Evo X N°2
  • Infinity Reference 253 vs Polk T50
  • Infinity Reference 253 vs SVS Ultra Evolution Pinnacle
  • Infinity Reference 253 vs Definitive Technology BP-9020
  • Infinity Reference 253 vs Sony SS-CS3
  • See all 34 comparisons

Bose 901 Series V Discontinued Amazon eBay

Pros: Historically distinctive direct/reflecting architecture uses eight rear-firing and one front-firing full-range drivers to create a very large, room-filling presentation. Erin measured a benign 6.2-ohm minimum impedance, so the raw electrical load is easier than many modern four-ohm speakers. The supplied active equalizer offers user-adjustable tonal balance and is integral to obtaining usable bandwidth. Measured bass extension of 55.8Hz (-3dB), with a measured sensitivity of 81dB.

Cons: Even with the required EQ, Erin measured only about 81dB sensitivity, grossly non-flat response, numerous impedance/resonance irregularities and very high distortion. Output above roughly 90-95dB at his seat became audibly poor; multitone testing reached only about 98dB before the distortion limit. The reflection-dominant radiation prevents precise imaging and makes results strongly room-dependent. It requires the proprietary equalizer and substantial amplifier power despite its benign impedance. Discontinued.

Full Bose 901 Series V review and specifications →

Bass Extension	Strongly dependent on supplied active equalizer and room (measured, Erin’s Audio Corner)
Bass Extension (-10dB)	34.5Hz (measured, Erin’s Audio Corner)
Bass Extension (-3dB)	55.8Hz (measured, Erin’s Audio Corner)
DIY Kit	No
DSP	External analog active equalizer required
Dimensions	21”H x 21”W x 12.6”D (533.4 x 533.4 x 320.7 mm)
Drivers	Nine full-range drivers: eight rear-firing, one front-firing
Impedance	6.2 ohms minimum (measured, Erin’s Audio Corner)
Sensitivity	Approximately 81dB/2.83V/1m with tested EQ setting (measured, Erin’s Audio Corner)
Spinorama Preference Score	0.43
Spinorama Preference Score with Perfect Sub	2.11
Weight	35.3 lbs (16 kg) each
