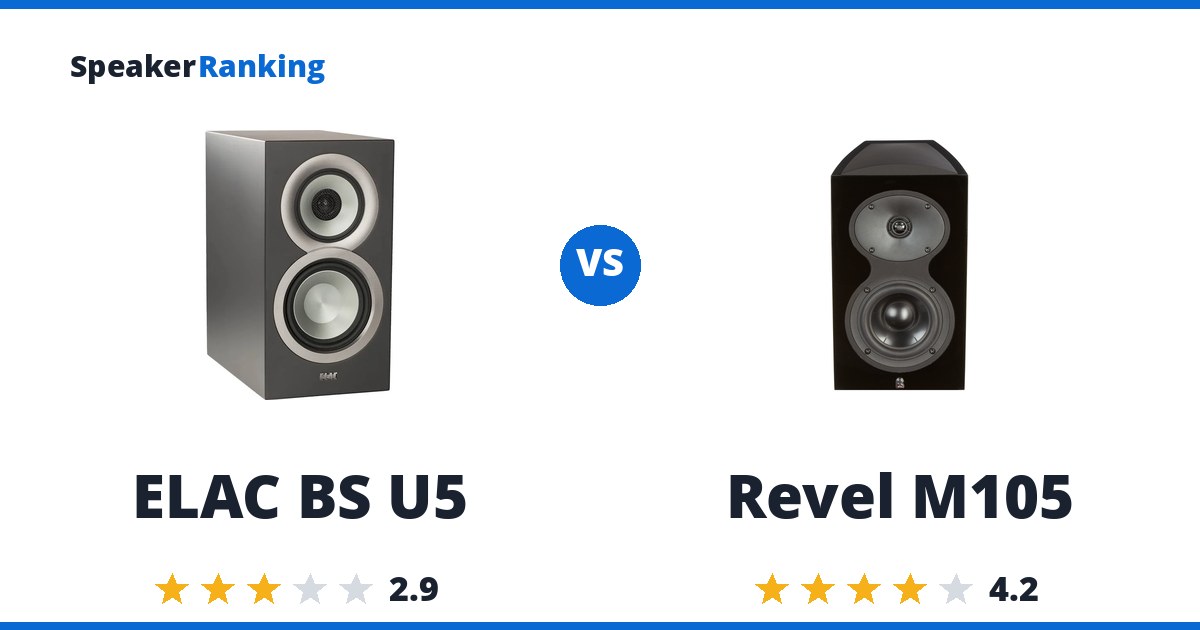

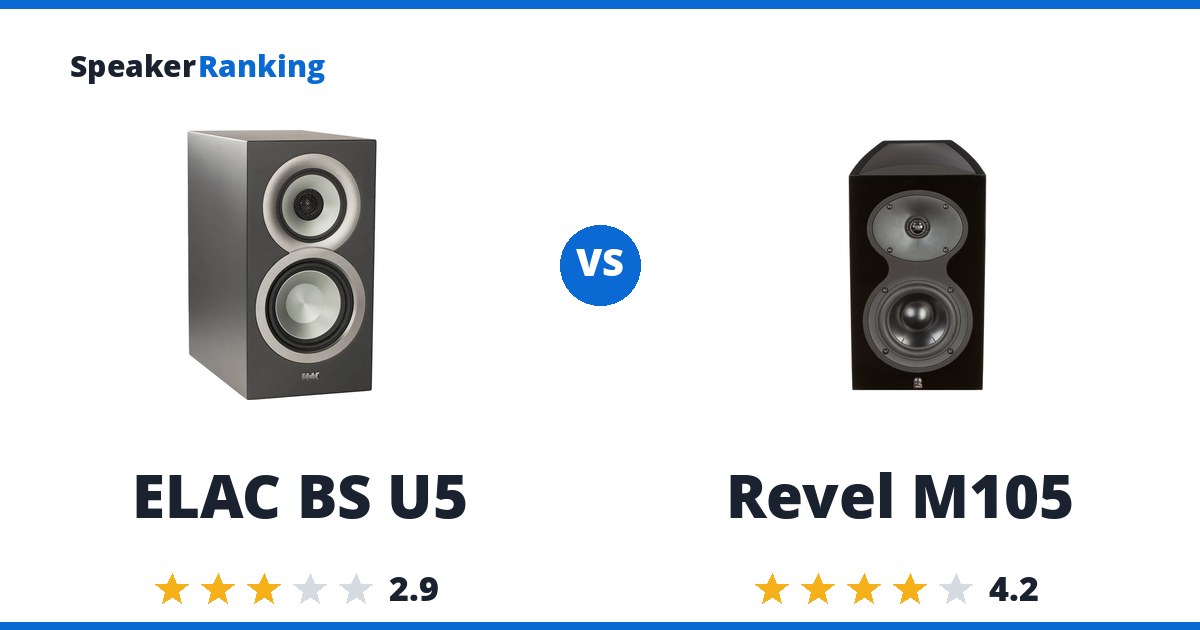

Short answer: both are discontinued, so this only matters if you are buying used. Used, the Revel M105 is the better pick: it ranks #15 of 160 bookshelf speakers by sound quality (rated 4.2/5), against #108 (rated 2.9/5) for the ELAC BS U5. If you want one new, the Revel Performa4 M145 replaces the Revel M105 and is rated 4.3/5 at $1,999.95.
The case for the ELAC BS U5: This slim three-way coaxial design (an Andrew Jones creation) shows a fairly even on-axis response up to 3kHz, with off-axis behavior notably smoother than the on-axis curve. The catch: Distortion is very high right at both crossover points (around 270Hz (mid-range) and 2700Hz (tweeter)) at both 86dB and 96dB SPL/1m, exceeding 3% at the mid-range crossover.
The Revel M105 is the more accurate choice. CEA2034 spinorama shows an essentially flat on-axis response with only a small 5kHz peak, a smooth listening window, and clean waterfall decay. Its measured preference score, a predictor of how neutral it sounds, is 5.76 against 4.71 for the ELAC BS U5. Watch for: Low nominal impedance demands a capable amplifier that can handle low-impedance loads.
Buy the Revel M105 only if you find one used in good condition; both are discontinued, and it is the better rated of the two. For a new speaker, buy the Revel Performa4 M145, which replaces the Revel M105.
Still deciding? The full Passive Home rankings cover every ranked option.
Specifications Side By Side
| ELAC BS U5 | Revel M105 | |
|---|---|---|
| Price | $856 per pair Discontinued | $1,500 per pair Discontinued |
| Ranked | #108 of 160 in Medium Size Bookshelf Speakers | #15 of 160 in Medium Size Bookshelf Speakers |
| Bass Extension (-3dB) | 63Hz (measured, Audio Science Review) | 63Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 41Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) | 49.8Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) |
| Drivers | 1” tweeter + 5.25” woofer | 5.25” aluminum cone woofer, 1” aluminum tweeter with acoustic lens waveguide |
| Weight | 13.2 lbs (6 kg) | 15.4 lbs (7 kg) each |
| Sensitivity | 83dB (2.83V/1m, measured, Audio Science Review) | 85dB (2.83V/1m, measured, Audio Science Review) |
| Impedance | 4 ohms nominal (3.4 ohms minimum) | 8 ohms nominal, low minimum |
| Dimensions | 13.4”H x 7”W x 11.5”D (339.1 x 178.0 x 293.1 mm) | 14”H x 7.9”W x 9.8”D (355.6 x 200.7 x 248.9 mm) |
| Woofer Cabinet | ported, rear | ported, rear |
| Spinorama Preference Score | 4.71 (spinorama.org) | 5.76 |
| Spinorama Preference Score with Perfect Sub | 6.79 (spinorama.org) | 8.18 |
| DIY Kit | No | No |
| Frequency Response | - | 60Hz - 44kHz (+/-3dB) (Manufacturer specified) |
Related Speaker Comparisons
More worthwhile head-to-heads for Revel M105:
- Ascend Sierra 1 v2 vs Revel M105
- KEF LS50 Meta vs Revel M105
- Arendal 1961 Monitor vs Revel M105
- Monitor Audio Silver 50 7G vs Revel M105
- Revel M105 vs Klipsch RP-500M II
Prices on this page were last checked October 9, 2026 at 8:01 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
ELAC BS U5: $856 per pair Discontinued eBay
Pros: This slim three-way coaxial design (an Andrew Jones creation) shows a fairly even on-axis response up to 3kHz, with off-axis behavior notably smoother than the on-axis curve. Predicted in-room response looks like it should give good tonality. Vertical directivity is better than average, a benefit of the coaxial layout. Measured bass extension of 63Hz (-3dB), with a measured sensitivity of 83dB.
Cons: Distortion is very high right at both crossover points (around 270Hz (mid-range) and 2700Hz (tweeter)) at both 86dB and 96dB SPL/1m, exceeding 3% at the mid-range crossover. Minimum impedance dips to 3.4 ohms with a possible resonance around 500Hz visible in the impedance/phase curve. Discontinued.
Full ELAC BS U5 review and specifications →
| Bass Extension (-10dB) | 41Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) |
|---|---|
| Bass Extension (-3dB) | 63Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 13.4”H x 7”W x 11.5”D (339.1 x 178.0 x 293.1 mm) |
| Drivers | 1” tweeter + 5.25” woofer |
| Impedance | 4 ohms nominal (3.4 ohms minimum) |
| Sensitivity | 83dB (2.83V/1m, measured, Audio Science Review) |
| Spinorama Preference Score | 4.71 (spinorama.org) |
| Spinorama Preference Score with Perfect Sub | 6.79 (spinorama.org) |
| Weight | 13.2 lbs (6 kg) |
| Woofer Cabinet | ported, rear |
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- ELAC BS U5 vs Acoustic Energy AE100 Mk2
- ELAC BS U5 vs Dynaudio X14
- ELAC BS U5 vs Pioneer SP-BS22-LR (Philharmonic AAM Mod)
- ELAC BS U5 vs Dynaudio Emit M10
- ELAC BS U5 vs JBL L52 Classic
- ELAC BS U5 vs JBL Stage 250B
- ELAC BS U5 vs Paradigm Monitor SE Atom
- ELAC BS U5 vs Sony SS-CS5 M2
- See all 32 comparisons
Revel M105: $1,500 per pair Discontinued eBay
Newer model: the Revel Performa4 M145, ranked higher, estimated 4.3/5.
Same family: the Revel M106 (larger bookshelf, rated 4.6/5), the Revel F206 (smaller floorstanding, rated 4.5/5), the Revel F208 (larger floorstanding, rated 4.5/5), the Revel Performa3 C205 (smaller center, rated 4.1/5) and the Revel Performa3 C208 (larger center, rated 4/5).
Pros: CEA2034 spinorama shows an essentially flat on-axis response with only a small 5kHz peak, a smooth listening window, and clean waterfall decay. Wide horizontal dispersion gives flexibility with toe-in. The reviewer called it reference-quality performance with minor EQ correction applied. Measured bass extension of 63Hz (-3dB), with a measured sensitivity of 85dB.
Cons: Low nominal impedance demands a capable amplifier that can handle low-impedance loads. Bass distortion runs high in the 80-250Hz range from woofer displacement, and maximum output is limited compared to larger designs. Discontinued.
Full Revel M105 review and specifications →
| Bass Extension (-10dB) | 49.8Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) |
|---|---|
| Bass Extension (-3dB) | 63Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 14”H x 7.9”W x 9.8”D (355.6 x 200.7 x 248.9 mm) |
| Drivers | 5.25” aluminum cone woofer, 1” aluminum tweeter with acoustic lens waveguide |
| Frequency Response | 60Hz - 44kHz (+/-3dB) (Manufacturer specified) |
| Impedance | 8 ohms nominal, low minimum |
| Sensitivity | 85dB (2.83V/1m, measured, Audio Science Review) |
| Spinorama Preference Score | 5.76 |
| Spinorama Preference Score with Perfect Sub | 8.18 |
| Weight | 15.4 lbs (7 kg) each |
| Woofer Cabinet | ported, rear |
