Coverage note. Speaker Ranking currently covers 2 K-array models across pa speakers. These are the products in our database, not a complete list of everything K-array makes.
What this page covers. The K-array models ranked here span pa speakers, including K-array Dragon KX12 and K-array Dragon-KX12 I. Use each model’s category position to compare it with alternatives of the same size and use case.
This page lists all 2 K-array speakers ranked on this site across pa speakers. Each model is shown in the category where it competes, with its current rank and the size of that ranking.
Use the category position rather than the brand name alone: speakers from the same manufacturer can perform very differently by size, price and product family.
Prices on this page were last checked October 9, 2026 at 8:01 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
Quick Navigation
12-Inch PA Speakers

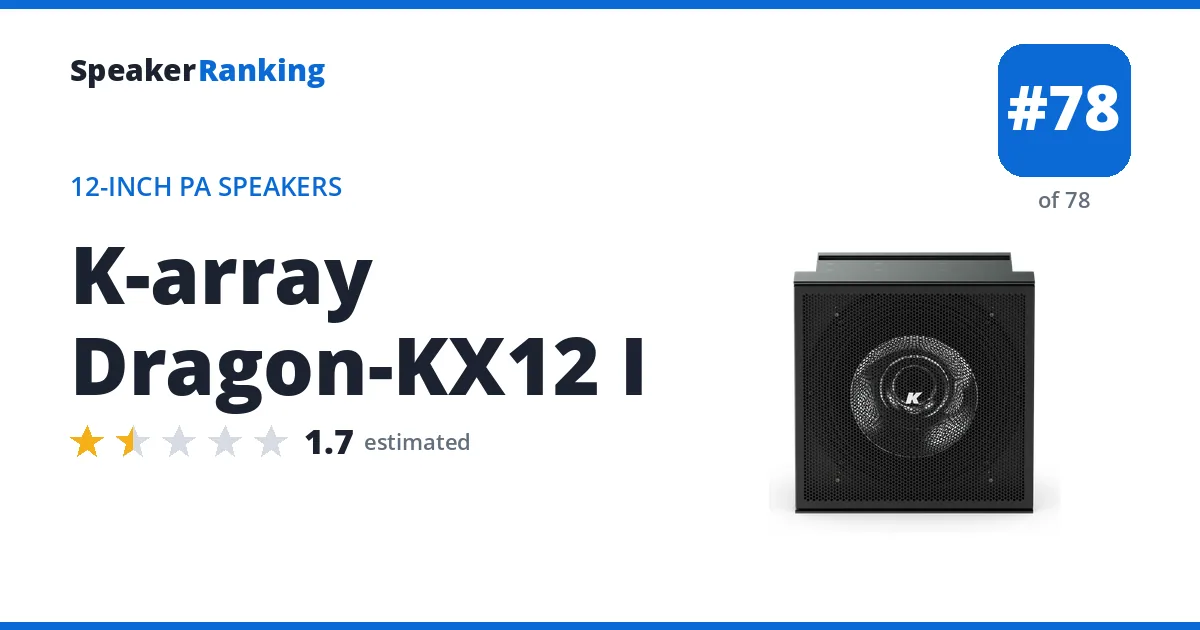

Ranked #78 of 78 in 12-Inch PA Speakers - K-array Dragon-KX12 I Estimated eBay
Older model: the K-array Dragon KX12 (ranked higher, rated 1.7/5).
Pros: The updated K-array Dragon KX12 with software control and support for K-array’s electronic beam steering, keeping its coaxial 12” woofer and 1.7” compression driver in a stainless steel IP54 cabinet rated at 133dB peak.
Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. Rated only down to 120Hz (-6dB), it needs subwoofers for any full-range use, and it is sold only through professional dealers.
Full K-array Dragon-KX12 I review and specifications →
| Bluetooth | No |
|---|---|
| Coverage | 40° x 60°, rotatable |
| Dimensions | 13.8”H x 13.8”W x 8”D (350 x 350 x 203 mm) |
| Drivers | 1x 12” coaxial woofer, 1x 1.7” compression driver |
| Frequency Response | 120Hz - 18kHz (-6dB, manufacturer specified) |
| Impedance | 8 ohms nominal (manufacturer specified) |
| Maximum SPL | 133dB peak (manufacturer specified) |
| Rigging | M10 inserts; pole mount; K-FLY2B fly bar; K-WALL2 wall brackets; U-bracket |
| Weight | 33.1 lbs (15 kg) |
- Links
- Reviews, Comparisons and Sound Samples
- No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.
Discontinued K-array Models
Still ranked, and often still worth buying used, but no longer in production. Check availability before planning around one of these.
12-Inch PA Speakers

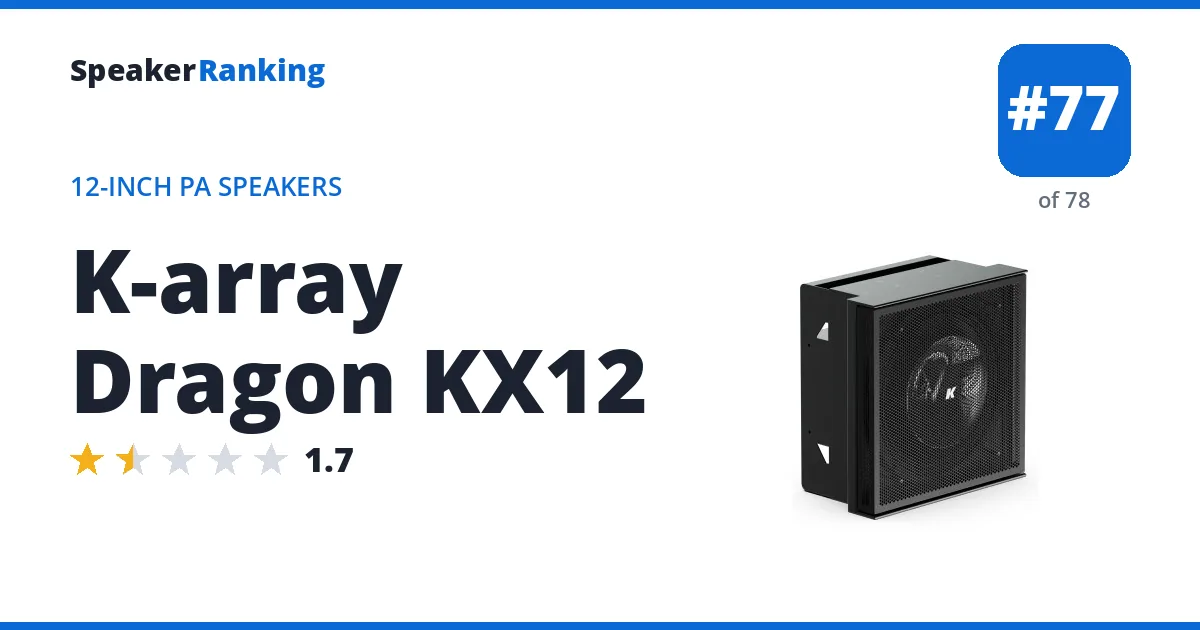

Ranked #77 of 78 in 12-Inch PA Speakers - K-array Dragon KX12 Passive Discontinued eBay
Newer model: the K-array Dragon-KX12 I, ranked lower, estimated 1.7/5.
Pros: A slim 201mm deep stainless steel cabinet with a 133dB peak, and the most consistent off-axis tone in this group (2.26dB directivity-index deviation). Measured bass extension of 109Hz (-3dB).
Cons: Vendor measurements give the lowest preference scores here, -4.28 standalone and -0.41 with an ideal subwoofer, because bass stops near 109Hz (-3dB) and the response tilts strongly. It is passive and discontinued, so it is mainly found used.
Full K-array Dragon KX12 review and specifications →
| AES Input | No |
|---|---|
| Amplifier Power | Passive speaker; requires external amplification |
| Aux Input | No |
| Bass Extension (-10dB) | about 80.8Hz (measured, vendor Spinorama data) |
| Bass Extension (-3dB) | 109Hz (measured, vendor Spinorama data) |
| Bluetooth | No |
| Coaxial Input | No |
| Configuration | Passive 2-way coaxial PA speaker, IP54 stainless steel enclosure |
| DSP | No (passive) |
| Dimensions | 13.4”H x 12.6”W x 7.9”D (340 x 320 x 201 mm) |
| Drivers | 12” coaxial woofer with compression driver |
| Frequency Response | 120Hz - 18kHz (manufacturer specified) |
| Guitar Input | No |
| HDMI Input | No |
| Impedance | 8 ohms |
| Maximum SPL | 133dB peak (manufacturer specified) |
| Microphone Input | No |
| Optical Input | No |
| Passive | Yes |
| RCA Input | No |
| Spinorama Preference Score | -4.28 |
| Spinorama Preference Score with Perfect Sub | -0.41 |
| TRS Input | No |
| USB Input | No |
| Weight | 26.9 lbs (12.2 kg) |
| XLR Input | No |
- Reviews, Comparisons and Sound Samples
