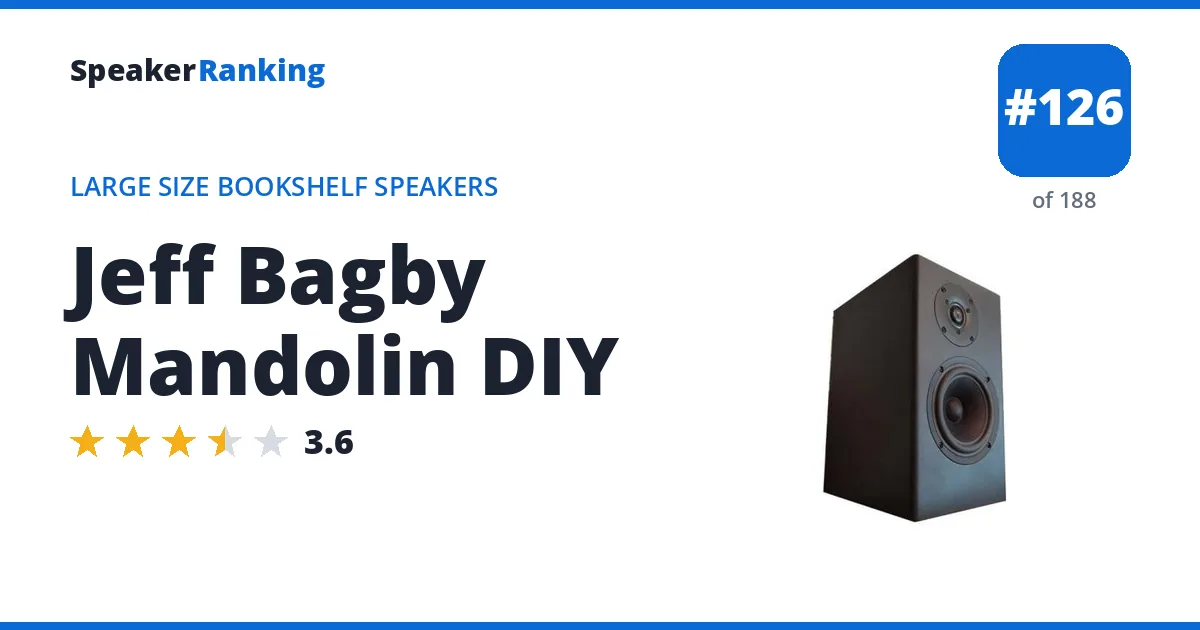

The Jeff Bagby Mandolin DIY ranks #126 out of 188 total Large Size Bookshelf Speakers for sound quality. See all Passive Home rankings for every top pick.
Prices on this page were last checked October 6, 2026 at 10:23 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
#126 Jeff Bagby Mandolin DIY: $300 per pair kit Discontinued eBay
Pros: A DIY two-way kit by the late Jeff Bagby with an SB Acoustics SB17 6.5” woofer and an SB29 ring radiator tweeter, with a crossover at 1.8kHz. Audio Science Review measured a preference score of 5.1 that reaches 7.18 with an ideal subwoofer, with 0.34 listening window deviation. Measured bass extension of 55.7Hz (-3dB).
Cons: The on-axis response is uneven (1.35 average deviation). It is a kit to build yourself, and the original version has been replaced by the Mandolin 2. Bass reaches 55.7Hz (-3dB) and about 38Hz (-10dB). Discontinued.
How it compares: Just above it: Parts Express Samba MT - $135 cheaper, 1Hz higher bass extension (-3dB). Just below it: Natural Sound NS17 - $2000 more, 1Hz higher bass extension (-3dB).
| Bass Extension (-10dB) | about 38.1Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 55.7Hz (measured, Audio Science Review) |
| DIY Kit | Yes |
| Drivers | SB Acoustics SB17NRX 6.5” woofer, SB29RDC ring radiator tweeter |
| Impedance | 8 ohms |
| Sensitivity | 86dB (designer specified) |
| Spinorama Preference Score | 5.1 |
| Spinorama Preference Score with Perfect Sub | 7.18 |
