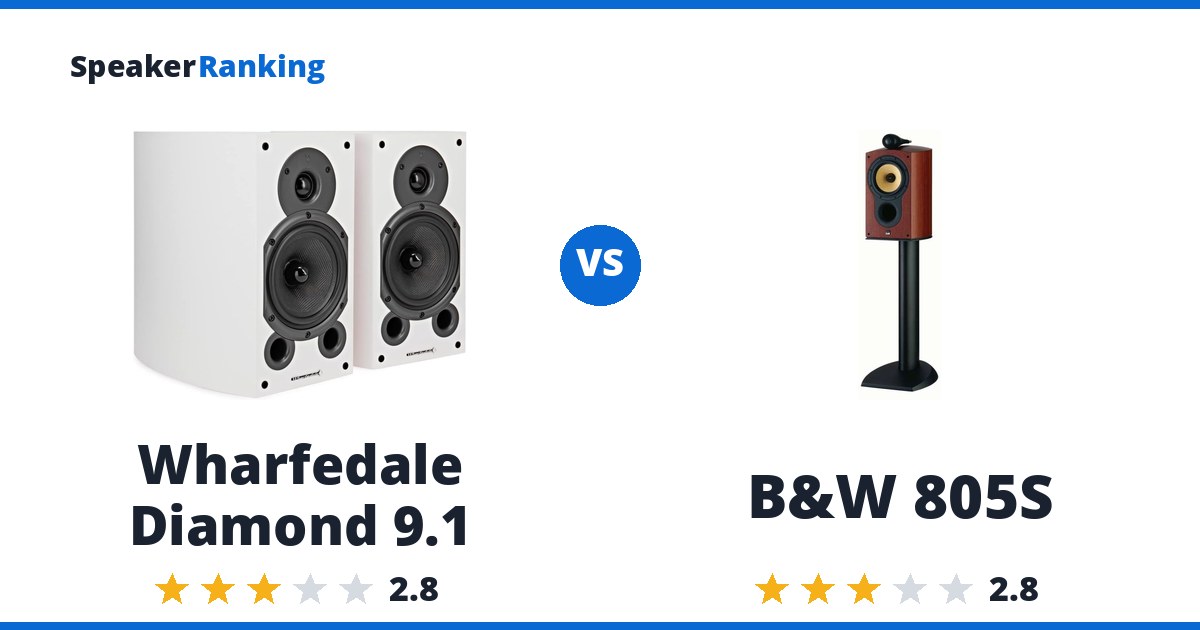

Wharfedale Diamond 9.1 vs Bowers & Wilkins 805S

Last updated: October 31, 2026

Short answer: the Bowers & Wilkins 805S, since the Diamond 9.1 you can buy today is not the original design, though neither ranks well in its class. The 805S plays very loud with strong bass and dynamics for its cabinet size, but its CEA2034 spinorama shows directivity breaking down badly from about 1kHz to 3kHz, which leaves vocals recessed. The Diamond 9.1’s original was good, but all current new ones are a weaker later revision. Both are rated below 3.0/5 among the 222 bookshelf speakers, and the AsciLab C6B, ranked #6 at $1,145, is a better place to start if sound quality matters.

Wharfedale Diamond 9.1 vs Bowers & Wilkins 805S

Buy the Wharfedale Diamond 9.1 or the Bowers & Wilkins 805S, whichever you find used in better condition; both are discontinued. For a new speaker, buy the Wharfedale Diamond 12.1i, which replaces the Wharfedale Diamond 9.1.

Want more options? Browse the full Passive Home rankings.

Measured Differences

Prices on this page were last checked November 14, 2026 at 6:17 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

Wharfedale Diamond 9.1 Bowers & Wilkins 805S
Price$350 per pair Discontinued$2,500 per pair Discontinued
Ranked#197 of 222 in Large Size Bookshelf Speakers#199 of 222 in Large Size Bookshelf Speakers
Impedance6 ohms8 ohms nominal (3.7 ohms minimum)
Sensitivity87dB86.5dB (2.83V/1m, measured, Audio Science Review)
Drivers6.5” Kevlar cone woofer, 1” soft dome tweeter1” aluminum dome tweeter, 6.5” woven Kevlar cone mid/bass
Weight12.1 lbs (5.5 kg) (good version), 9.9 lbs (4.5 kg) (bad version) each25.4 lbs (11.5 kg) each
Woofer Cabinetportedported, rear
Dimensions11.7”H x 7.6”W x 10.9”D (296.0 x 194.0 x 278.0 mm)16.5H x 9.4W x 13.8D in
Bass Extension (-3dB)40Hz (measured, Hi-Fi World)46.9Hz (measured, Audio Science Review)
DIY KitNoNo
Bass Extension (-10dB)-35.6Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points)
Frequency Response-49Hz - 22kHz +/-3dB (-6dB at 42Hz and 50kHz) (Manufacturer specified)
Power Handling-50-120W
Spinorama Preference Score-4.12
Spinorama Preference Score with Perfect Sub-6.07

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
