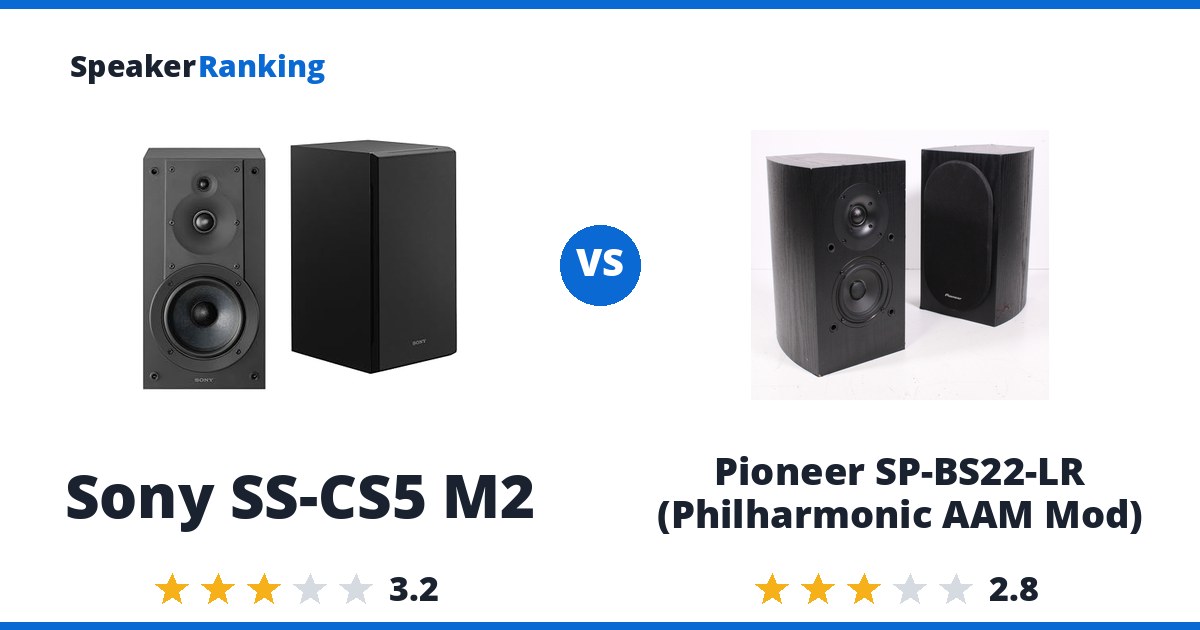

Short answer: the Sony SS-CS5 M2 for better sound quality, the Pioneer SP-BS22-LR (Philharmonic AAM Mod) for the lower price. The Sony SS-CS5 M2 ranks #19 of 34 bookshelf speakers at $278. The Pioneer SP-BS22-LR (Philharmonic AAM Mod) ranks #24 at $168, $110 cheaper.
What the Sony SS-CS5 M2 offers: Added internal bracing (corners, sides, front baffle) plus an updated crossover meaningfully reduce the resonance issues that plagued the original SS-CS5, giving a smoother, more neutral character overall. Watch for: Mild sibilance in the 3-5kHz range stands out on S and T sounds in vocals.
What the Pioneer SP-BS22-LR (Philharmonic AAM Mod) offers: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued, budget Pioneer SP-BS22-LR: the stock tweeter is swapped for a Peerless BC25TG15 dome and a redesigned 3rd-order crossover is built to match it to the stock 4” woofer. Watch for: Some directivity error appears near the crossover frequency.
Buy the Sony SS-CS5 M2 if sound quality matters more than the price. Buy the Pioneer SP-BS22-LR (Philharmonic AAM Mod) if the price matters more than sound quality.
Specifications Side By Side
| Sony SS-CS5 M2 | Pioneer SP-BS22-LR (Philharmonic AAM Mod) | |
|---|---|---|
| Price | $278.00 | $168 |
| Ranked | #19 of 34 in Medium Size Bookshelf Speakers | #24 of 34 in Medium Size Bookshelf Speakers |
| Bass Extension (-10dB) | 54Hz (measured, Erin’s Audio Corner) | - |
| Bass Extension (-3dB) | 80Hz (measured, Erin’s Audio Corner) | - |
| Dimensions | 13.2"H x 7"W x 8.7"D (335 x 178 x 220 mm) | 12.6"H x 7.1"W x 8.5"D (320.0 x 180.0 x 215.0 mm) |
| Impedance | 6 ohms | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 82.5dB | 83dB (2.83V/1m, measured by Audio Science Review) |
| Supertweeter | 0.75 in | - |
| Drivers | 5.12" woofer, 0.98 in tweeter | 1x 4" curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1" silk dome tweeter (replacement) |
| Weight | 9.5 lbs / 4.3 kg each | 9 lbs / 4.1 kg |
| Woofer Cabinet | ported, rear | ported, rear |
| Crossover Frequency | - | 3000Hz |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- ELAC Debut 2.0 B5.2 vs Jamo S 803
- ELAC Debut 2.0 B5.2 vs JBL Stage A120
- ELAC Debut 2.0 B5.2 vs JBL Stage 2 250B
- Neumi Silk 4 vs Sony SS-CS5 M2
- Emotiva B1+ vs Sony SS-CS5 M2
The Two Speakers In Full
Sony SS-CS5 M2: $278.00 Amazon
Pros: Added internal bracing (corners, sides, front baffle) plus an updated crossover meaningfully reduce the resonance issues that plagued the original SS-CS5, giving a smoother, more neutral character overall. A modest mid-range dip (about 1-2dB) is present but tolerable, and the reviewer would rather have this dip than a peak in that region. Slightly deeper bass than the previous version, measuring about 2dB more output around 60Hz. Distortion drops noticeably when crossed to a subwoofer around 80-120Hz, meaningfully improving midrange clarity and detail versus running full-range. Easy to drive on a standard AVR - no need for a dedicated high-power amplifier. More modern, understated waveguide look compared to the previous version’s glossy trim.
Cons: Mild sibilance in the 3-5kHz range stands out on S and T sounds in vocals. Some forwardness in the midrange noticeable on certain vocal recordings. Soundstage and sense of envelopment are comparatively flat and two-dimensional, especially next to reference-quality speakers with strong 3D imaging. Marketed as a “three-way” design mainly due to an added super-tweeter that the reviewer considers largely superfluous - it engages only at very high frequencies and adds complexity without a clearly audible benefit, when that cost might have been better spent on the main crossover. Output-limited: realistic ceiling is around the mid-90s dB SPL at a few meters, with comfortable listening closer to 75-85dB at 3-4 meters before distortion and compression become audible. Bass noticeably compresses/shelves below about 120Hz as volume increases, softening kick-drum impact at higher output. Smaller drivers and a lighter motor structure than rivals like the Polk XT20, which the reviewer generally prefers for its better directivity and higher SPL capability. Still needs a subwoofer for any real bass extension.
Full Sony SS-CS5 M2 review and specifications →
| Bass Extension (-10dB) | 54Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 80Hz (measured, Erin's Audio Corner) |
| Dimensions | 13.2"H x 7"W x 8.7"D (335 x 178 x 220 mm) |
| Drivers | 5.12" woofer, 0.98 in tweeter |
| Impedance | 6 ohms |
| Sensitivity | 82.5dB |
| Supertweeter | 0.75 in |
| Weight | 9.5 lbs / 4.3 kg each |
| Woofer Cabinet | ported, rear |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Pioneer SP-BS22-LR (Philharmonic AAM Mod): $168
Pros: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued, budget Pioneer SP-BS22-LR: the stock tweeter is swapped for a Peerless BC25TG15 dome and a redesigned 3rd-order crossover is built to match it to the stock 4” woofer. CEA2034 spinorama shows only small variations from a flat on-axis response with some directivity error near the crossover, a marked improvement over the unmodified Pioneer, which the reviewer notes shows much more variation from flat. Distortion at 86dB SPL/1m is reasonably controlled above 200Hz, and tweeter distortion barely rises even at 96dB SPL/1m.
Cons: Some directivity error appears near the crossover frequency. Distortion climbs in the woofer’s range (below 200Hz) at both 86dB and 96dB SPL/1m. Minimum impedance dips to about 5 ohms with a couple of resonance peaks. This is a DIY project, not a finished retail product: Murphy sold ~$168 pre-built pairs for a while but no longer does, so it now requires sourcing a used/discontinued Pioneer SP-BS22-LR pair plus building the crossover and swapping the tweeter yourself. The mod itself is public domain, but there is no current turnkey way to buy this speaker.
Full Pioneer SP-BS22-LR (Philharmonic AAM Mod) review and specifications →
| Crossover Frequency | 3000Hz |
|---|---|
| Dimensions | 12.6"H x 7.1"W x 8.5"D (320.0 x 180.0 x 215.0 mm) |
| Drivers | 1x 4" curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1" silk dome tweeter (replacement) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) |
| Weight | 9 lbs / 4.1 kg |
| Woofer Cabinet | ported, rear |
