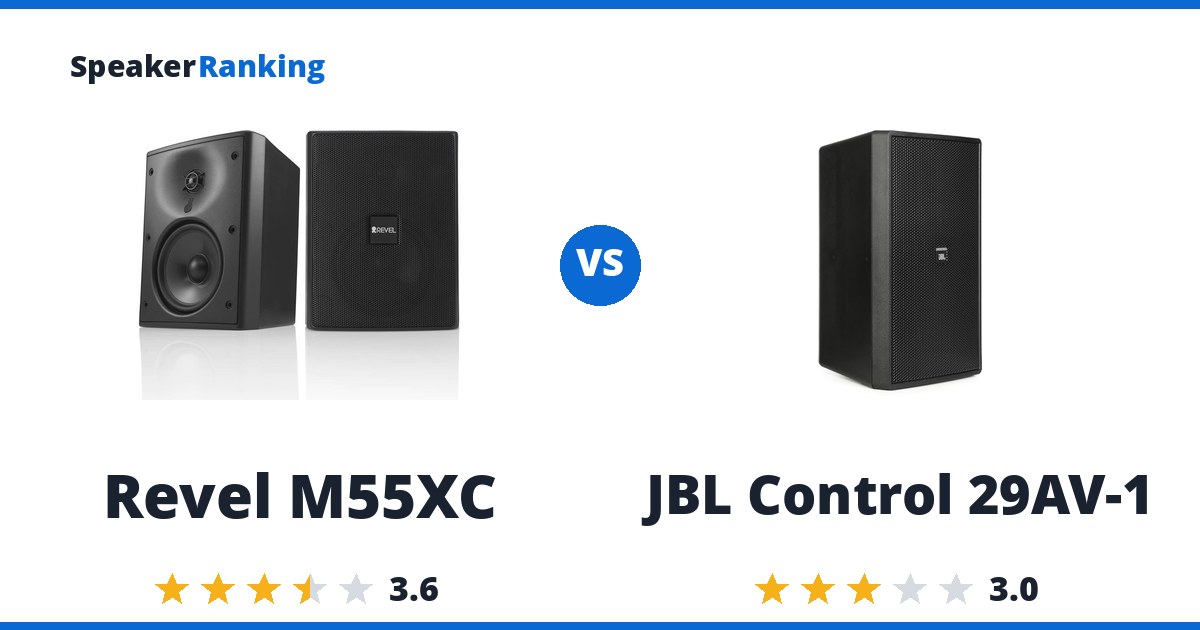

Revel M55XC vs JBL Control 29AV-1

Last updated: November 14, 2026

Quick answer: the JBL Control 29AV-1, if you are buying new. The Revel M55XC ranks higher than it (#5 vs #10 of 16 outdoor speakers, 3.6/5 vs 3.0/5) but is discontinued, so only consider it used; the JBL Control 29AV-1 is still sold new at $1,144.

Revel M55XC vs JBL Control 29AV-1

The Revel M55XC is the more accurate option. A compact discontinued weatherproof outdoor speaker with smooth off-axis sound and easy included mounting hardware. Its measured preference score, a predictor of how neutral it sounds, is 3.36 against 2.24 for the JBL Control 29AV-1. Watch for: Compact sealed enclosure limits bass output, with -6dB extension at 90.8Hz and rapid low-frequency roll-off below 100Hz.

The JBL Control 29AV-1 is the deeper-bass pick. A large outdoor speaker with an 8 inch woofer for deep bass, huge output and a built in transformer for multi-zone systems. Its bass reaches about 54.2Hz before falling 3dB, against 112.8Hz for the Revel M55XC. Watch for: Uneven raw frequency response through the crossover region and ragged on-axis treble yield a modest 2.24 preference score without DSP correction.

Buy the JBL Control 29AV-1, since the Revel M55XC is discontinued and only worth hunting down used.

Still deciding? The full Passive Home rankings cover every ranked option.

Measured Differences

Prices on this page were last checked November 18, 2026 at 8:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

Revel M55XC JBL Control 29AV-1
Price$420 per pair Discontinued$1,144 per pair
Ranked#5 of 16 in Outdoor Speakers#10 of 16 in Outdoor Speakers
Drivers5.25” carbon-infused polypropylene woofer, 1” aluminum dome tweeter with Acoustic Lens waveguide8” (200mm) Kevlar cone woofer, 1” (25mm) titanium diaphragm compression driver on rotatable 110° x 85° horn
ConfigurationPassive 2-wayPassive 2-way
Sensitivity86.5dB90dB
Impedance8 ohms8 ohms
Recommended Power20-70W-
EnclosureSealed, IP56 weather-resistantPorted high-impact polystyrene, all-weather
Dimensions9.8”H x 7.4”W x 7.1”D (248 x 188 x 181 mm)20.5”H x 12”W x 10.9”D (520 x 306 x 277 mm)
Weight7.5 lbs (3.4 kg)26.9 lbs (12.2 kg)
Bass Extension (-3dB)112.8Hz (measured, Audio Science Review)54.2Hz (measured, Audio Science Review)
Bass Extension (-6dB)90.8Hz (measured, Audio Science Review)48.3Hz (measured, Audio Science Review)
Bass Extension (-10dB)67.4Hz (measured, Audio Science Review)41.0Hz (measured, Audio Science Review)
Spinorama Preference Score3.362.24
Spinorama Preference Score with Perfect Sub6.894.50
Power Handling-300W

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
