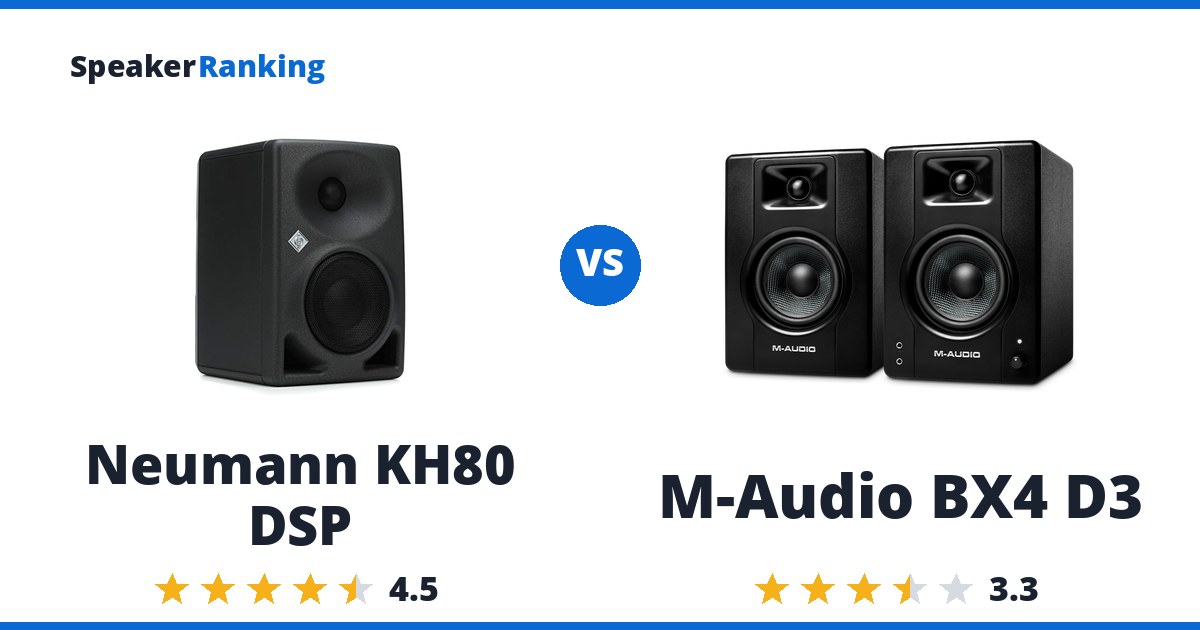

Neumann KH80 DSP vs M-Audio BX4 D3

Last updated: August 25, 2026

Short answer: the Neumann KH80 DSP for better sound quality, the M-Audio BX4 D3 for the lower price. The Neumann KH80 DSP ranks #7 of 64 powered bookshelf speakers at $598.98. The M-Audio BX4 D3 ranks #56 at $149, $449.98 cheaper.

What the Neumann KH80 DSP offers: Compact 2-way nearfield monitor - a 1” tweeter in an elliptical waveguide over a 4” mid-woofer, crossed over around 1.8kHz with steep 48dB/octave slopes. Exceptionally linear on-axis response, within about ±1.5dB, with essentially nothing worth equalizing beyond a minor, likely port-related wrinkle around 800Hz. Vertical dispersion is unusually wide and consistent for a monitor this size, holding together to roughly ±40° versus the ±20° or so typical of similarly compact designs - a benefit of the steep crossover slopes and waveguide minimizing comb filtering, so listening height and seating posture matter less than on most small monitors. Back-panel switches (freestanding, small/medium/large desk) tailor the low-mid response to compensate for desk-boundary reflections. Distortion in the midrange doesn’t change when high-passed to a subwoofer at 80Hz, showing the drivers already have a clean distortion profile on their own. Maintains good composure and linearity up to about 96dB SPL down to roughly 80Hz before an active protection circuit engages; tested with dense multitone program material rather than a sine sweep, output around 96dB costs only about 1dB in the midrange, putting realistic maximum SPL near 95dB. Watch for: High price for its size, at roughly $1,000/pair. The horizontal pattern stays wide and essentially constant out to about ±30° before beaming and narrowing further out (then flattening again near 2kHz) - a wide, controlled pattern in absolute terms, but one that reflects more high-frequency energy off nearby sidewalls than a narrower design would. At greater listening distances or in more reflective rooms (tested around 6 feet away at 75-80dB), that shows up as a top end that reads a bit hot despite the speaker measuring essentially flat on-axis - a byproduct of its directivity rather than its tonal balance, and mostly moot for genuine nearfield desktop use inside about a meter. The estimated in-room response shows a shallow dip around 1-2kHz and a treble trend running 2-3dB above the midrange in that same far-field estimate. Multitone distortion for a single speaker climbs into the 3-5% range at 96dB SPL, though that’s only really relevant well above typical nearfield listening levels. Bass rolls off below its F3 of 57Hz (F10 48Hz), so the 4” mid-woofer still needs a subwoofer for real low-end content. The companion app for EQ/setup is iPad-only, with no Android or Bluetooth option despite being control-only, and the in-room calibration microphone is a separate purchase in most cases. In a separate comparison test, the smoother-measuring KH80 actually sounded smaller and less present than the cheaper JBL 305P MKII, which had more perceived bass and clarity despite measuring worse on paper.

What the M-Audio BX4 D3 offers: Affordable compact powered pair with 4.5-inch Kevlar woofers, rear EQ controls, balanced TRS, RCA and front-panel aux/headphone connections. Spinorama predicts a 5.14 preference score with a subwoofer and useful nearfield bass extension near 62Hz. Watch for: The third-party measurement is low confidence, and the small shared-amplifier design has limited output and bass headroom. Its raw no-subwoofer preference score is modest, the rear port complicates wall placement, and only the left cabinet contains amplification and controls.

Buy the Neumann KH80 DSP if sound quality matters more than the price. Buy the M-Audio BX4 D3 if the price matters more than sound quality.

If sound quality matters at all to you, skip the M-Audio BX4 D3. It ranks near the bottom of the 64 powered bookshelf speakers, so look higher up the list instead.

Buy the Neumann KH80 DSP at Amazon ($598.98) →Buy the M-Audio BX4 D3 at Amazon ($149/pair) →

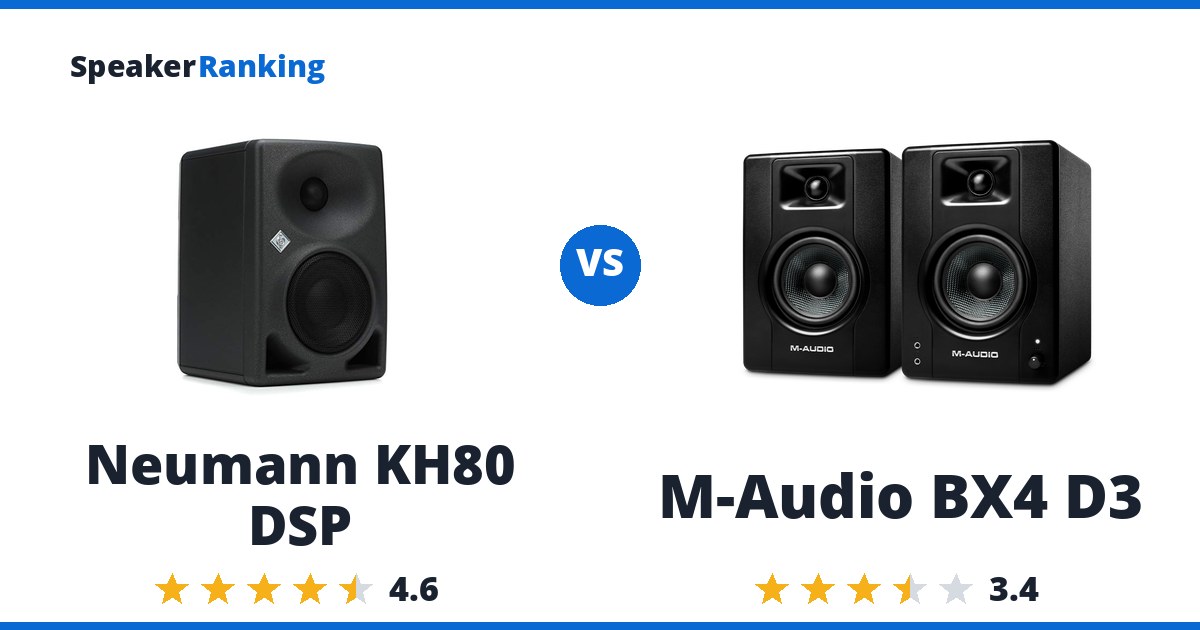

Neumann KH80 DSP vs M-Audio BX4 D3

Specifications Side By Side

Neumann KH80 DSP M-Audio BX4 D3
Price$598.98$149/pair
Ranked#7 of 64 in Medium Size Powered Bookshelf Speakers#56 of 64 in Medium Size Powered Bookshelf Speakers
Dimensions13.6"H x 10.8"W x 9.6"D (345.4 x 274.3 x 243.8 mm)8.9H x 6.1W x 6.9D in
Frequency Response57 Hz - 25 kHz (+-3 dB) (Manufacturer specified)-
InputsXLRTRS, RCA, 3.5mm aux; headphone output
Weight9 lbs / 4.1 kg each9.8 lbs/pair
Drivers4.1" woofer, 1" fabric dome tweeter1" dome tweeter, 4.5" Kevlar woofer
AppYes (MA 1 alignment)-
Bass Extension (-10dB)51Hz (measured, Erin’s Audio Corner)-
Bass Extension (-3dB)57Hz (measured, Erin’s Audio Corner)-
BluetoothNo-
DSPYes-
EQYes (via DSP)-
Max SPL110.7dB @ 1m-
Sensitivity91.9dB (measured at 0.3V/1m, Erin’s Audio Corner)-
Output Power140W (90W woofer + 50W tweeter)-
Enclosure-2-way powered stereo pair, rear-ported
Power Output-120W peak system
Buy the Neumann KH80 DSP at Amazon ($598.98) →Buy the M-Audio BX4 D3 at Amazon ($149/pair) →

More useful head-to-heads from the same speaker class:

Prices on this page were last checked August 25, 2026 at 6:19 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

The Two Speakers In Full

Neumann KH80 DSP: $598.98 Amazon Bhphotovideo eBay

Neumann KH80 DSP ranking card

Pros: Compact 2-way nearfield monitor - a 1” tweeter in an elliptical waveguide over a 4” mid-woofer, crossed over around 1.8kHz with steep 48dB/octave slopes. Exceptionally linear on-axis response, within about ±1.5dB, with essentially nothing worth equalizing beyond a minor, likely port-related wrinkle around 800Hz. Vertical dispersion is unusually wide and consistent for a monitor this size, holding together to roughly ±40° versus the ±20° or so typical of similarly compact designs - a benefit of the steep crossover slopes and waveguide minimizing comb filtering, so listening height and seating posture matter less than on most small monitors. Back-panel switches (freestanding, small/medium/large desk) tailor the low-mid response to compensate for desk-boundary reflections. Distortion in the midrange doesn’t change when high-passed to a subwoofer at 80Hz, showing the drivers already have a clean distortion profile on their own. Maintains good composure and linearity up to about 96dB SPL down to roughly 80Hz before an active protection circuit engages; tested with dense multitone program material rather than a sine sweep, output around 96dB costs only about 1dB in the midrange, putting realistic maximum SPL near 95dB.

Cons: High price for its size, at roughly $1,000/pair. The horizontal pattern stays wide and essentially constant out to about ±30° before beaming and narrowing further out (then flattening again near 2kHz) - a wide, controlled pattern in absolute terms, but one that reflects more high-frequency energy off nearby sidewalls than a narrower design would. At greater listening distances or in more reflective rooms (tested around 6 feet away at 75-80dB), that shows up as a top end that reads a bit hot despite the speaker measuring essentially flat on-axis - a byproduct of its directivity rather than its tonal balance, and mostly moot for genuine nearfield desktop use inside about a meter. The estimated in-room response shows a shallow dip around 1-2kHz and a treble trend running 2-3dB above the midrange in that same far-field estimate. Multitone distortion for a single speaker climbs into the 3-5% range at 96dB SPL, though that’s only really relevant well above typical nearfield listening levels. Bass rolls off below its F3 of 57Hz (F10 48Hz), so the 4” mid-woofer still needs a subwoofer for real low-end content. The companion app for EQ/setup is iPad-only, with no Android or Bluetooth option despite being control-only, and the in-room calibration microphone is a separate purchase in most cases. In a separate comparison test, the smoother-measuring KH80 actually sounded smaller and less present than the cheaper JBL 305P MKII, which had more perceived bass and clarity despite measuring worse on paper.

Full Neumann KH80 DSP review and specifications →

AppYes (MA 1 alignment)
Bass Extension (-10dB)51Hz (measured, Erin's Audio Corner)
Bass Extension (-3dB)57Hz (measured, Erin's Audio Corner)
BluetoothNo
DSPYes
Dimensions13.6"H x 10.8"W x 9.6"D (345.4 x 274.3 x 243.8 mm)
Drivers4.1" woofer, 1" fabric dome tweeter
EQYes (via DSP)
Frequency Response57 Hz - 25 kHz (+-3 dB) (Manufacturer specified)
InputsXLR
Max SPL110.7dB @ 1m
Output Power140W (90W woofer + 50W tweeter)
Sensitivity91.9dB (measured at 0.3V/1m, Erin's Audio Corner)
Weight9 lbs / 4.1 kg each
Check current price at Amazon ($598.98) →Check current price at Bhphotovideo ($599) →Search eBay for Neumann KH80 DSP →

M-Audio BX4 D3: $149/pair Amazon eBay

M-Audio BX4 D3 ranking card

Pros: Affordable compact powered pair with 4.5-inch Kevlar woofers, rear EQ controls, balanced TRS, RCA and front-panel aux/headphone connections. Spinorama predicts a 5.14 preference score with a subwoofer and useful nearfield bass extension near 62Hz.

Cons: The third-party measurement is low confidence, and the small shared-amplifier design has limited output and bass headroom. Its raw no-subwoofer preference score is modest, the rear port complicates wall placement, and only the left cabinet contains amplification and controls.

Full M-Audio BX4 D3 review and specifications →

Dimensions8.9H x 6.1W x 6.9D in
Drivers1" dome tweeter, 4.5" Kevlar woofer
Enclosure2-way powered stereo pair, rear-ported
InputsTRS, RCA, 3.5mm aux; headphone output
Power Output120W peak system
Weight9.8 lbs/pair
Check current price at Amazon ($149/pair) →Search eBay for M-Audio BX4 D3 →
