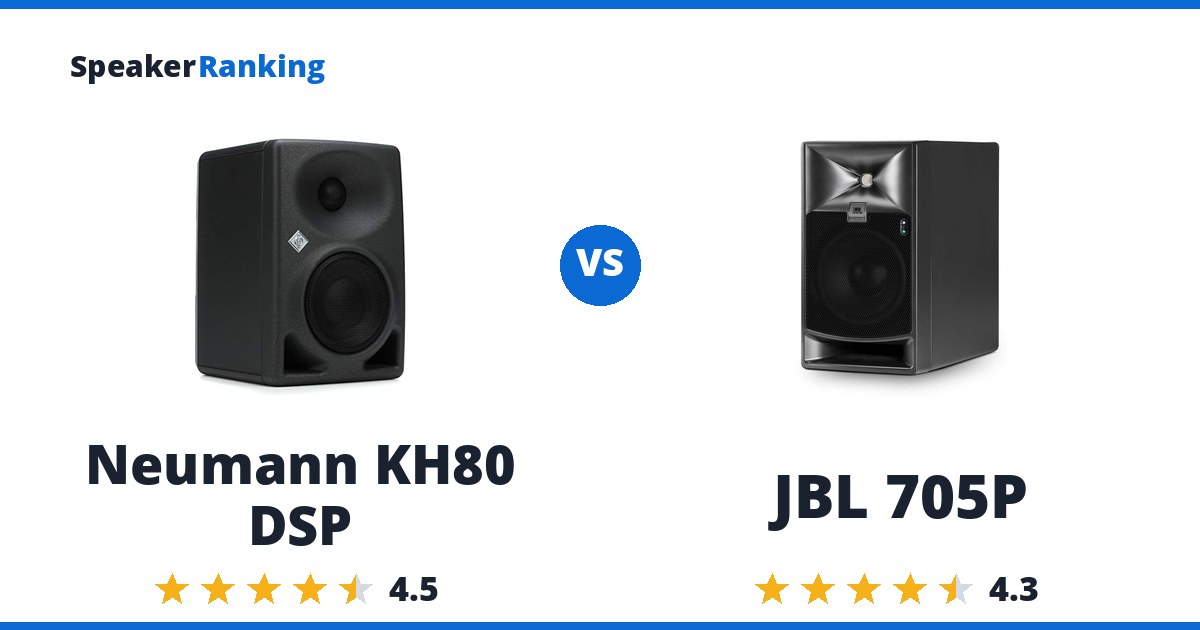

Neumann KH80 DSP vs JBL 705P

Last updated: October 27, 2026

Short answer: the JBL 705P for measured flatness, the Neumann KH80 DSP for a compact nearfield footprint. The 705P’s CEA2034 spinorama is flat with excellent directivity, similar to its larger 708P sibling, though a cancellation around 750Hz and a boost at the 1.75kHz crossover appear on axis. The KH80 DSP pairs a 1” tweeter in an elliptical waveguide with a 4” mid-woofer crossed near 1.8kHz, but it is priced high for its size.

Neumann KH80 DSP vs JBL 705P

Buy the Neumann KH80 DSP. It is rated higher for sound quality than the JBL 705P and costs less, which makes it the one to get unless you need something the other one does better.

Still deciding? The full Powered Home rankings cover every ranked option.

Measured Differences

Prices on this page were last checked November 14, 2026 at 6:17 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

Neumann KH80 DSP JBL 705P
Price$1,198 per pair$2,198 per pair
Ranked#4 of 108 in Medium Size Powered Bookshelf Speakers#43 of 108 in Medium Size Powered Bookshelf Speakers
Dimensions13.6”H x 10.8”W x 9.6”D (345.4 x 274.3 x 243.8 mm)10.6”H x 5.9”W x 10.8”D (268 x 151 x 274 mm)
Frequency Response57 Hz - 25 kHz (+-3 dB) (Manufacturer specified)39Hz - 36kHz (Manufacturer specified)
InputsXLRXLR/TRS combo (analog), XLR AES3 (digital)
Weight9 lbs (4.1 kg) each12.6 lbs (5.7 kg) each
Drivers4.1” woofer, 1” fabric dome tweeter5” woofer, 2409H 1” compression driver
AppYes (MA 1 alignment)No
Bass Extension (-10dB)51Hz (measured, Erin’s Audio Corner)38.9Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points)
Bass Extension (-3dB)57Hz (measured, Erin’s Audio Corner)47.6Hz (measured, Audio Science Review)
BluetoothNoNo
DSPYesNo
EQYes (via DSP)No
Sensitivity91.9dB (measured at 0.3V/1m, Erin’s Audio Corner)-
Amplifier Power140W (90W woofer + 50W tweeter)500W total (250W woofer, 250W tweeter)
Maximum SPL110.7dB @ 1m (manufacturer specified)-
Spinorama Preference Score5.894.70
Spinorama Preference Score with Perfect Sub8.256.71
XLR InputYesYes
RCA InputNoNo
TRS InputNoYes
Optical InputNoNo
Coaxial InputNoNo
USB InputNoNo
HDMI InputNoNo
AES InputNoYes
Aux InputNoNo

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
