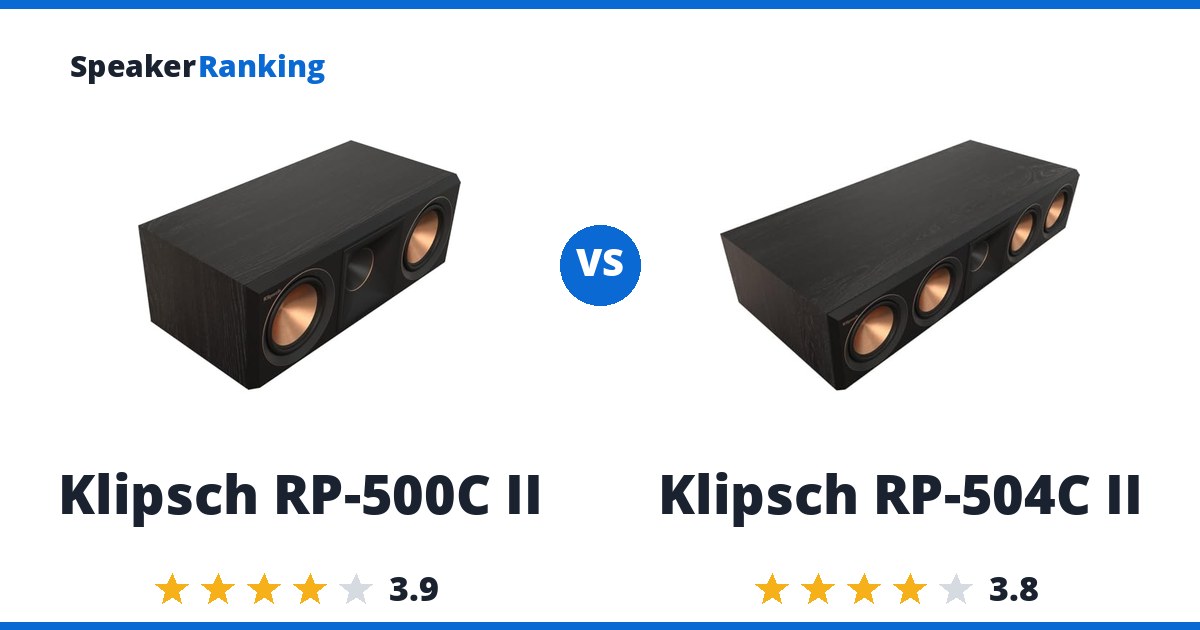

Klipsch RP-500C II vs Klipsch RP-504C II

Last updated: October 27, 2026

Short answer: the Klipsch RP-500C II. Measured sound quality puts it at #43 of 134 center channel speakers, rated 3.9/5, at $329.99; the Klipsch RP-504C II ranks #49, rated 3.8/5, and costs $499.99, so there is not much of a tradeoff to weigh.

Klipsch RP-500C II vs Klipsch RP-504C II

The case for the Klipsch RP-500C II: A horn loaded center channel that is very easy to drive and sounds good for the money, with lively, loud dialogue. The tradeoff: On-axis response is uneven (1.09dB average deviation), and the horn’s directivity changes more across frequency than any other center here (4.34dB directivity index deviation), so tone shifts between the direct sound and room reflections.

The Klipsch RP-504C II is the deeper-bass choice. A large horn loaded center channel with four woofers, very high sensitivity and very deep bass for a center channel. Its bass reaches about 71.8Hz before falling 3dB, against 82Hz for the Klipsch RP-500C II. The catch: On-axis response is the least even of the Klipsch centers (1.13dB average deviation), and directivity varies strongly with frequency (4.27dB directivity index deviation), so the tone changes for off-center seats and in reflective rooms.

Buy the Klipsch RP-500C II. It is rated higher for sound quality than the Klipsch RP-504C II and costs less, so only choose the other one for a particular feature it does better.

Want more options? Browse the full Passive Home rankings.

Measured Differences

Prices on this page were last checked November 18, 2026 at 8:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

Specifications Side By Side

Klipsch RP-500C II Klipsch RP-504C II
Price$329.99 each$499.99 each
Ranked#43 of 134 in Center Channel Speakers#49 of 134 in Center Channel Speakers
Drivers1” titanium LTS vented tweeter with Tractrix horn, 2x 5.25” Cerametallic woofers1” titanium LTS vented tweeter with Tractrix horn, 4x 5.25” Cerametallic woofers
Frequency Response56Hz-25kHz ±3dB (manufacturer specified)50Hz-25kHz ±3dB (manufacturer specified)
Sensitivity94dB (2.83V/1m, manufacturer specified)96dB (2.83V/1m, manufacturer specified)
Impedance8 ohms nominal (manufacturer specified)8 ohms nominal (manufacturer specified)
Woofer Cabinetported (rear Tractrix port)ported (rear Tractrix ports)
Dimensions6.9”H x 19.3”W x 10.6”D (174 x 491 x 269 mm)6.9”H x 32”W x 15.1”D (174 x 814 x 383 mm)
Weight18.3 lbs (8.3 kg)36.4 lbs (16.5 kg)
Bass Extension (-3dB)82.0Hz (measured, Erin’s Audio Corner)71.8Hz (measured, Erin’s Audio Corner)
Bass Extension (-10dB)about 54.4Hz (measured, Erin’s Audio Corner)about 43.4Hz (measured, Erin’s Audio Corner)
Spinorama Preference Score4.534.58
Spinorama Preference Score with Perfect Sub7.286.83
DIY KitNoNo

Where the Ratings Come From

This comparison is generated from the ratings, specifications and measurements on each product’s own page, and it updates when that data changes. How we rank explains how each rating is decided.
