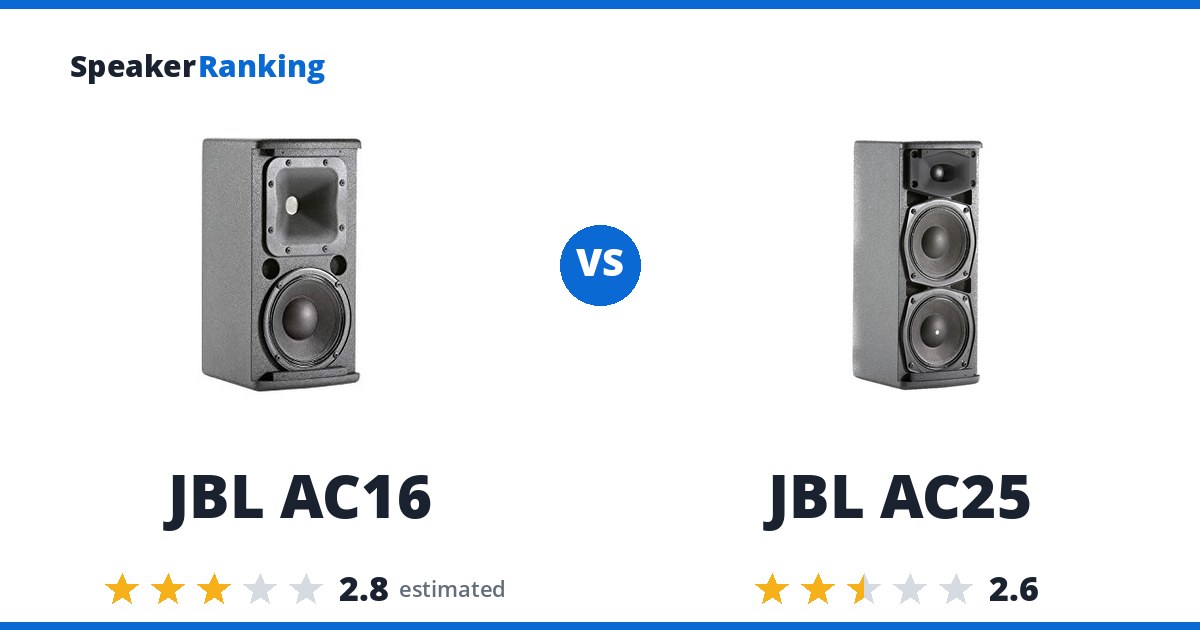

Short answer: the JBL AC16, though neither ranks well in its class. It ranks #13 of 26 surface-mount and background music speakers by sound quality, rated 2.8/5, at $674; the JBL AC25 ranks #18, rated 2.6/5, and costs $814.67, so there is not much of a tradeoff to weigh. Both are rated below 3.0/5 among the 26 surface-mount and background music speakers; for better sound, the JBL Control 24CT ranks #1 at $350.
Why pick the JBL AC16: A compact JBL Professional installation speaker from the same AC range as the measured JBL AC25: a single 6.5” woofer with a compression driver on a waveguide. The tradeoff: No independent measurements yet, so it can’t be compared with ranked PA speakers.
The case for the JBL AC25: An ultra-compact two-way installation speaker from JBL Professional with two 5.25” woofers and a tweeter. Watch for: Bass is very limited, so it needs a subwoofer.
Buy the JBL AC16. It is rated higher for sound quality than the JBL AC25 and costs less, which makes it the one to get unless you need something the other one does better.
About the ratings: the JBL AC16’s rating is estimated from measured siblings and predecessors rather than its own measurements, with a likely range of 2.4 to 3.2, so this verdict could change once it is measured.
Looking for alternatives? See the complete PA & Live Sound rankings.
Specifications Side By Side
| JBL AC16 | JBL AC25 | |
|---|---|---|
| Price | $674.00 each Passive | $814.67 each Passive |
| Ranked | #13 of 26 in Surface-Mount and Background Music Speakers Estimated | #18 of 26 in Surface-Mount and Background Music Speakers |
| Bass Extension (-3dB) | 65Hz (manufacturer specified) | 124.5Hz (measured, Audio Science Review) |
| Rigging | 5 x M8 points; 4 x M6 rear for OmniMount/MultiMount | 4 x M8 points; 4 x M6 rear for MultiMount |
| Passive | Yes | Yes |
| Configuration | Passive 2-way installation speaker | - |
| Drivers | 6.5” woofer, 1” compression driver | 2x 5.25” woofers, tweeter |
| Frequency Response | 55Hz - 20kHz (-10dB, manufacturer specified) | - |
| Coverage | 90° x 90° | - |
| Power Handling | 250W | - |
| Maximum SPL | 110dB (manufacturer specified) | 115dB peak (manufacturer specified) |
| Sensitivity | 90dB | - |
| Weight | 15.9 lbs (7.2 kg) | 16.5 lbs (7.5 kg) |
| XLR Input | No | - |
| Bluetooth | No | No |
| DSP | No (passive) | - |
| Amplifier Power | Passive speaker; requires external amplification | - |
| Bass Extension (-10dB) | - | about 84.3Hz (measured, Audio Science Review) |
| Spinorama Preference Score | - | 0.43 |
| Spinorama Preference Score with Perfect Sub | - | 4.01 |
| DIY Kit | - | No |
Related Speaker Comparisons
More top alternatives to JBL AC16:
- Yamaha VXS8 vs JBL AC16
- JBL AC16 vs Electro-Voice EVID-S8.2
- JBL AC16 vs Yamaha VXS1ML
- Electro-Voice EVID-S8.2 vs JBL AC25
- JBL AC25 vs Bose DesignMax DM8SE
Prices on this page were last checked October 11, 2026 at 4:59 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
JBL AC16: $674.00 each Passive Estimated Amazon eBay
Same family: the JBL AC15 (smaller model, ranked lower, estimated 2.6/5), the JBL AC25 (larger model, ranked lower, rated 2.6/5), the JBL AC26 (larger model, ranked higher, estimated 2.9/5), the JBL AC18/26 (larger model, ranked higher, estimated 3/5) and the JBL AC28/26 (larger model, ranked higher, estimated 3.1/5).
Pros: A compact JBL Professional installation speaker from the same AC range as the measured JBL AC25: a single 6.5” woofer with a compression driver on a waveguide. JBL rates it at 90dB sensitivity and 110dB maximum SPL with 90° x 90° coverage and bass to 55Hz (-10dB), in an enclosure weighing 7.2 kg with mounting points for walls and ceilings.
Cons: No independent measurements yet, so it can’t be compared with ranked PA speakers. It is a passive installation speaker that needs an amplifier and, for best results, JBL’s recommended EQ, and the only measured AC model scored poorly, so treat the estimate with caution.
Full JBL AC16 review and specifications →
| Amplifier Power | Passive speaker; requires external amplification |
|---|---|
| Bass Extension (-3dB) | 65Hz (manufacturer specified) |
| Bluetooth | No |
| Configuration | Passive 2-way installation speaker |
| Coverage | 90° x 90° |
| DSP | No (passive) |
| Drivers | 6.5” woofer, 1” compression driver |
| Frequency Response | 55Hz - 20kHz (-10dB, manufacturer specified) |
| Maximum SPL | 110dB (manufacturer specified) |
| Passive | Yes |
| Power Handling | 250W |
| Rigging | 5 x M8 points; 4 x M6 rear for OmniMount/MultiMount |
| Sensitivity | 90dB |
| Weight | 15.9 lbs (7.2 kg) |
| XLR Input | No |
- Links
- Reviews, Comparisons and Sound Samples
- No independent measurement review is linked for this model; it is ranked from hands-on listening and comparison against similarly priced speakers.
- Head-to-Head Comparisons
JBL AC25: $814.67 each Passive Amazon eBay
Same family: the JBL AC15 (smaller model, ranked higher, estimated 2.6/5), the JBL AC16 (smaller model, ranked higher, estimated 2.8/5), the JBL AC26 (larger model, ranked higher, estimated 2.9/5), the JBL AC18/26 (larger model, ranked higher, estimated 3/5) and the JBL AC28/26 (larger model, ranked higher, estimated 3.1/5).
Pros: An ultra-compact two-way installation speaker from JBL Professional with two 5.25” woofers and a tweeter. Audio Science Review measured a preference score of 0.43 that reaches 4.01 with an ideal subwoofer, with 0.79 listening window deviation. Measured bass extension of 124.5Hz (-3dB).
Cons: Bass is very limited, so it needs a subwoofer. Audio Science Review found an uneven response (0.89 average on-axis deviation). Bass reaches 124.5Hz (-3dB) and about 84Hz (-10dB).
Full JBL AC25 review and specifications →
| Bass Extension (-10dB) | about 84.3Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 124.5Hz (measured, Audio Science Review) |
| Bluetooth | No |
| DIY Kit | No |
| Drivers | 2x 5.25” woofers, tweeter |
| Maximum SPL | 115dB peak (manufacturer specified) |
| Passive | Yes |
| Rigging | 4 x M8 points; 4 x M6 rear for MultiMount |
| Spinorama Preference Score | 0.43 |
| Spinorama Preference Score with Perfect Sub | 4.01 |
| Weight | 16.5 lbs (7.5 kg) |
