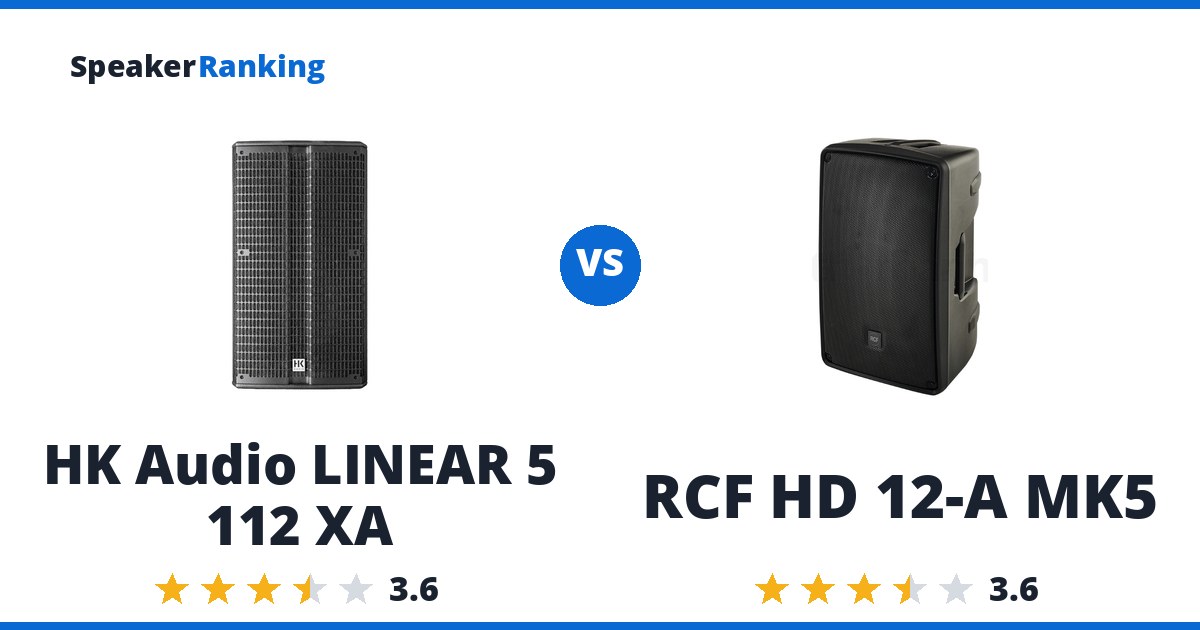

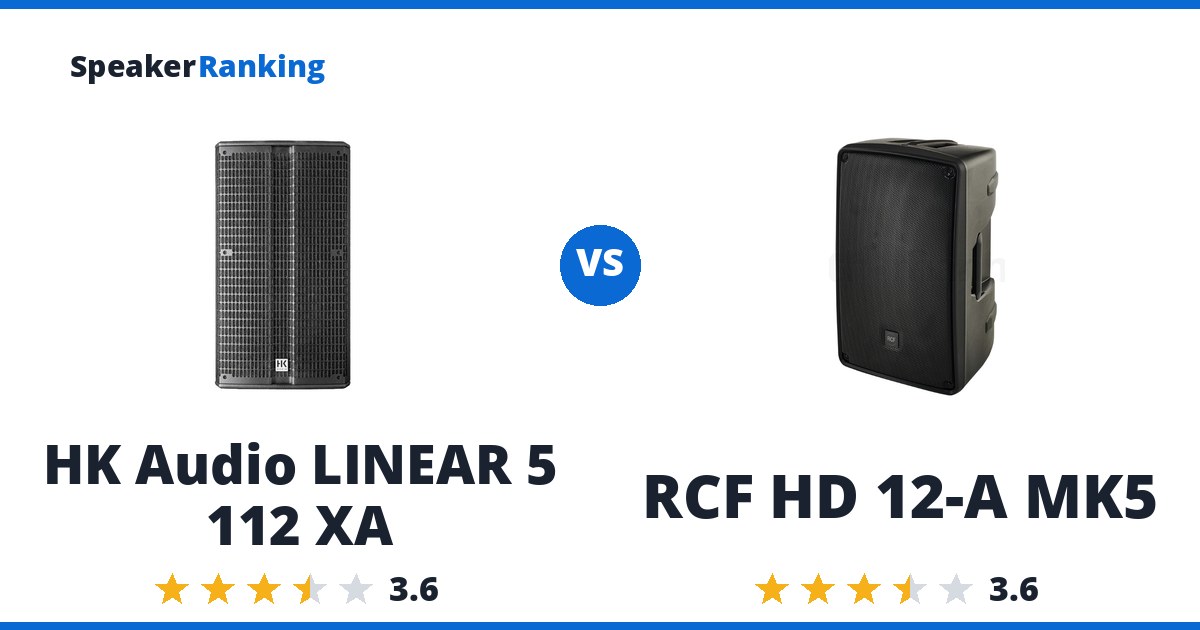

HK Audio LINEAR 5 112 XA vs RCF HD 12-A MK5

Short answer: the HD 12-A MK5. It’s current, cheaper, and its measured extension reaches deeper without needing a subwoofer as urgently. These rank #27 and #28 out of 37 12-inch powered PA speakers, priced at $800 and $600, a $200 gap.

The LINEAR 5 112 XA trades bass extension for output and versatility. Its high-quality vendor data returns a 4.60 ideal-subwoofer preference score, and the compact monitor-capable enclosure reaches a claimed 136dB peak, with a rotatable 60° x 40° horn to concentrate output over distance. Its own cons are direct: measured bass extension is only about 87Hz, so it’s best treated as a mid/high cabinet over subwoofers rather than a stand-alone full-range main, and it’s an older discontinued generation with limited onboard user processing.

The HD 12-A MK5 is a current, accessible RCF main. The 18.3kg cabinet offers 130dB claimed peak output, 90° x 60° coverage and RCF FiRPHASE/Bass Motion Control processing at a comparatively accessible price, and medium-quality vendor data indicates useful extension into the low 60Hz region. Its own cons note the truncated Spinorama measurement can’t produce a preference score, so tonal confidence is lower than for fully scored leaders, and controls are intentionally simple, omitting app control, networking and a multi-input mixer.

Buy the HD 12-A MK5 for a current, more affordable main speaker with deeper measured bass extension.

Buy the LINEAR 5 112 XA only if you specifically want its higher claimed peak output and monitor-capable rotatable horn, and plan to run it over subwoofers.

The RCF HD 12-A MK5 is not a sound-quality pick. It sits near the bottom of the 37 12-inch two-way powered pa speakers; there are better options higher up.

Specifications Side By Side

Related Speaker Comparisons

More useful head-to-heads from the same speaker class:

• Yamaha DBR12 vs HK Audio LINEAR 5 112 FA
• RCF ART 712-A MK5 vs HK Audio LINEAR 5 112 FA
• LD Systems Stinger 12 A G3 vs Martin Audio XP12
• RCF ART 712-A MK5 vs HK Audio LINEAR 5 112 XA
• HK Audio LINEAR 5 112 XA vs LD Systems Stinger 12 A G3

Prices on this page were last checked September 7, 2026 at 7:47 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.

As an eBay Partner, we may be compensated if you make a purchase.

The Two Speakers In Full

HK Audio LINEAR 5 112 XA: $800.00 eBay

Pros: Its high-quality vendor data returns a 4.60 ideal-subwoofer preference score, and the compact monitor-capable enclosure reaches a claimed 136dB peak. The rotatable 60° x 40° horn helps concentrate output over longer distances.

Cons: Measured bass extension is only about 87Hz, so this XA model is best treated as a mid/high cabinet over subwoofers rather than a stand-alone full-range main. It is an older discontinued generation with limited onboard user processing.

Full HK Audio LINEAR 5 112 XA review and specifications →

Amplifier Power	1,000W peak (Class D bi-amped, manufacturer specified)
Bass Extension (-3dB)	95Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	Hybrid birch plywood construction
Configuration	Active 2-way bass-reflex PA speaker/monitor
Coverage	60° x 40°, rotatable
Crossover Frequency	1.65kHz active (24dB/octave)
DSP	Yes, crossover, EQ and limiting
Dimensions	26.3"H x 14.6"W x 11.8"D (668 x 370 x 300 mm)
Drivers	12" woofer, 1" compression driver
Frequency Response	100Hz - 18kHz (±3dB, manufacturer specified); 72Hz - 20kHz (-10dB)
Inputs	2 x XLR input, 2 x XLR thru, XLR mix output
Maximum SPL	136dB peak (manufacturer specified)
Rigging	Three M8 points; DuoTilt 3°/7° pole mount
Weight	46.5 lbs / 21.1 kg

• Links
  • HK Audio LINEAR 5 112 XA Product Information
• Reviews, Comparisons and Sound Samples
  • Spinorama Measurements
• Head-to-Head Comparisons
  • HK Audio LINEAR 5 112 XA vs HK Audio LINEAR 5 112 FA
  • HK Audio LINEAR 5 112 XA vs LD Systems Stinger 12 A G3
  • HK Audio LINEAR 5 112 XA vs RCF ART 712-A MK5

RCF HD 12-A MK5: $600.00 B&H Photo Video Guitar Center eBay

Pros: The current 18.3kg cabinet offers 130dB claimed peak output, 90° x 60° coverage and RCF FiRPHASE/Bass Motion Control processing at a comparatively accessible price. Medium-quality vendor data indicates useful extension into the low 60Hz region.

Cons: The truncated Spinorama measurement cannot produce a preference score, so tonal confidence is lower than for the fully scored leaders. Controls are intentionally simple and omit app control, networking and a multi-input mixer.

Full RCF HD 12-A MK5 review and specifications →

Amplifier Power	1400W peak / 700W RMS (1000W LF + 400W HF peak)
Bass Extension (-3dB)	63Hz (measured, vendor Spinorama data)
Bluetooth	No
Cabinet Material	PP composite
Configuration	Active 2-way bass-reflex PA speaker
Coverage	90° x 60°
Crossover Frequency	1800Hz
DSP	Yes, FiRPHASE and Bass Motion Control
Dimensions	25.5"H x 15"W x 15"D (647 x 380 x 380 mm)
Drivers	12" woofer, 1.4" compression driver
Frequency Response	45Hz - 20kHz (manufacturer specified)
Inputs	XLR/TRS combo input and XLR link
Maximum SPL	130dB peak (manufacturer specified)
Rigging	2 x M10 inserts; 35mm pole mount
Weight	40.3 lbs / 18.3 kg
