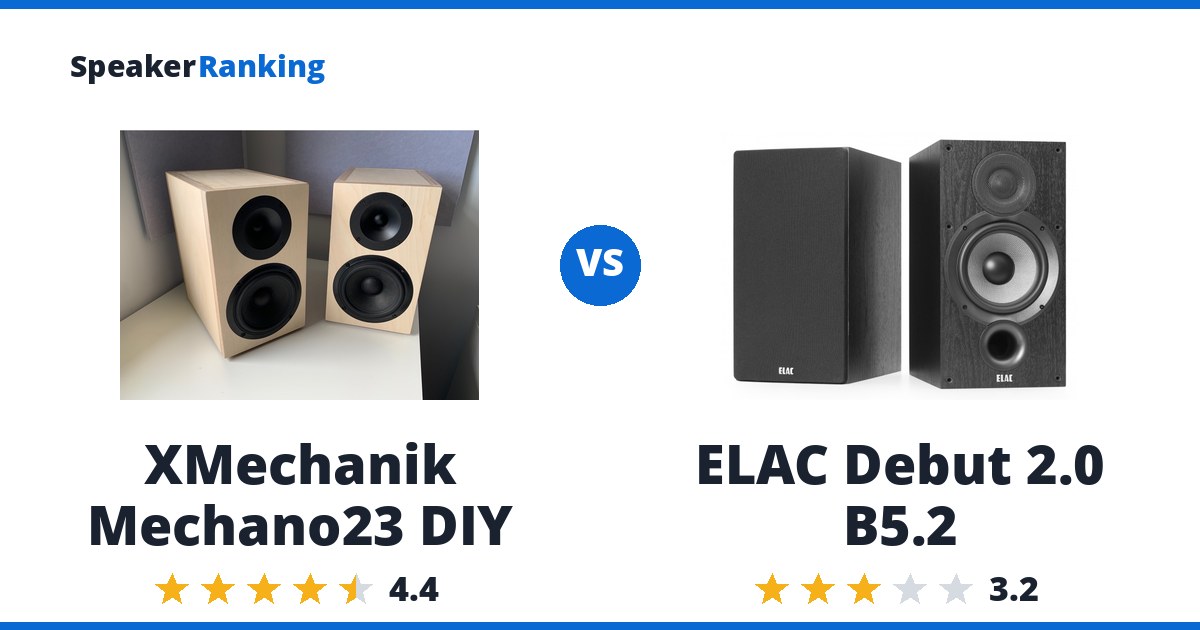

Short answer: the XMechanik Mechano23 DIY. It ranks #6 of 87 bookshelf speakers by sound quality at $48; the ELAC Debut 2.0 B5.2 ranks #47 and costs $269, so there is little reason to consider the other one.
What the XMechanik Mechano23 DIY offers: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Watch for: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
What the ELAC Debut 2.0 B5.2 offers: Good horizontal directivity: the off-axis curves track the on-axis response closely, so the broad tonal error responds predictably to EQ. Erin demonstrated that a single high-shelf filter centered near 1.6kHz, about -2dB with Q near 2, substantially improves linearity. Moderate roughly +/-50-60 degree horizontal coverage balances room interaction and image focus. The front port makes close-to-wall placement practical. Erin measured F3 near 60Hz and F10 near 40Hz, useful extension for a compact 5.25-inch two-way. Harmonic distortion is mostly below 1% at 86dB/1m, and low-frequency distortion is better than its size might suggest. Compact cabinet and inexpensive pair pricing make it a workable EQ-assisted desktop or small-room system. Watch for: Erin measured a broad +3dB step beginning around 1.5kHz; the resulting elevated upper range sounds tonally uneven even though it is not a narrow, sharp resonance. Native response spans roughly -2.6 to +4dB around the mean, so this is not a neutral speaker without correction. Sensitivity is only about 83dB after correcting the shelf, demanding materially more amplifier voltage than ELAC’s 86dB specification implies. Vertical response changes substantially outside roughly +/-10 degrees of tweeter height. Dynamic compression is the larger limitation: at the highest sweep level it loses roughly 1-1.5dB through the midrange, and even the 86dB trace shows unusual nonlinearity that may involve crossover heating. At about 96dB, multitone distortion rises audibly around 600Hz; an 80-120Hz subwoofer crossover helps but does not turn it into a high-output design. Erin recommends the larger B6.2 instead when EQ is unavailable.
Buy the XMechanik Mechano23 DIY. It ranks higher for sound quality than the ELAC Debut 2.0 B5.2 and costs less, so there is no real case for the other one.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| XMechanik Mechano23 DIY | ELAC Debut 2.0 B5.2 | |
|---|---|---|
| Price | $200 per pair DIY parts | $269.00 per pair |
| Ranked | #6 of 87 in Medium Size Bookshelf Speakers | #47 of 87 in Medium Size Bookshelf Speakers |
| Enclosure | ported | - |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer | 5.25" aramid-fiber woofer, 1" cloth-dome tweeter |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) | 13.4"H x 7.1"W x 9.2"D (341 x 180 x 234 mm) |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) | About 83dB after recommended EQ (measured, Erin's Audio Corner; 86dB manufacturer specified) |
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) | 60Hz (measured, Erin's Audio Corner) |
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) | 40Hz (measured, Erin's Audio Corner) |
| Port Tuning | Approximately 45Hz | - |
| Cabinet Material | 18mm Baltic birch plywood | - |
| Country | Design origin: United States (ASR forum); assembled by buyer | - |
| Spinorama Preference Score | 4.70 | 4.13 |
| Spinorama Preference Score with Perfect Sub | 7.16 | 6.39 |
| Impedance | - | 6 ohms nominal (manufacturer specified) |
| Weight | - | 13 lbs (5.9 kg) each |
| Woofer Cabinet | - | ported, front |
Related Speaker Comparisons
How XMechanik Mechano23 DIY compares with other leading options:
- XMechanik Mechano23 DIY vs Audio First Fidelia
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- Ascend Sierra 1 v2 vs XMechanik Mechano23 DIY
- KEF LS50 Meta vs XMechanik Mechano23 DIY
- Ascend Acoustics HTM-200SE2 vs XMechanik Mechano23 DIY
Prices on this page were last checked September 16, 2026 at 12:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
XMechanik Mechano23 DIY: $200 per pair DIY parts Madisound (Tweeter) Madisound (Woofer) eBay
Pros: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Measured bass extension of 77.6Hz (-3dB), with a measured sensitivity of 85.1dB.
Cons: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
Full XMechanik Mechano23 DIY review and specifications →
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| Cabinet Material | 18mm Baltic birch plywood |
| Country | Design origin: United States (ASR forum); assembled by buyer |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer |
| Enclosure | ported |
| Port Tuning | Approximately 45Hz |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) |
| Spinorama Preference Score | 4.70 |
| Spinorama Preference Score with Perfect Sub | 7.16 |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- XMechanik Mechano23 DIY vs Ascend Acoustics HTM-200SE2
- XMechanik Mechano23 DIY vs Arendal 1961 Monitor
- XMechanik Mechano23 DIY vs KEF LS50 Meta
- XMechanik Mechano23 DIY vs Ascend Sierra 1 v2
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- XMechanik Mechano23 DIY vs Ascend Acoustics Luna V2 Mini-Monitor Titan
- XMechanik Mechano23 DIY vs Aalto Speakers Aalto 1 EVO
- XMechanik Mechano23 DIY vs Audio First Fidelia
- See all 20 comparisons
ELAC Debut 2.0 B5.2: $269.00 per pair Amazon eBay
Pros: Good horizontal directivity: the off-axis curves track the on-axis response closely, so the broad tonal error responds predictably to EQ. Erin demonstrated that a single high-shelf filter centered near 1.6kHz, about -2dB with Q near 2, substantially improves linearity. Moderate roughly +/-50-60 degree horizontal coverage balances room interaction and image focus. The front port makes close-to-wall placement practical. Erin measured F3 near 60Hz and F10 near 40Hz, useful extension for a compact 5.25-inch two-way. Harmonic distortion is mostly below 1% at 86dB/1m, and low-frequency distortion is better than its size might suggest. Compact cabinet and inexpensive pair pricing make it a workable EQ-assisted desktop or small-room system. Measured bass extension of 60Hz (-3dB), with a measured sensitivity of 83dB.
Cons: Erin measured a broad +3dB step beginning around 1.5kHz; the resulting elevated upper range sounds tonally uneven even though it is not a narrow, sharp resonance. Native response spans roughly -2.6 to +4dB around the mean, so this is not a neutral speaker without correction. Sensitivity is only about 83dB after correcting the shelf, demanding materially more amplifier voltage than ELAC’s 86dB specification implies. Vertical response changes substantially outside roughly +/-10 degrees of tweeter height. Dynamic compression is the larger limitation: at the highest sweep level it loses roughly 1-1.5dB through the midrange, and even the 86dB trace shows unusual nonlinearity that may involve crossover heating. At about 96dB, multitone distortion rises audibly around 600Hz; an 80-120Hz subwoofer crossover helps but does not turn it into a high-output design. Erin recommends the larger B6.2 instead when EQ is unavailable.
Full ELAC Debut 2.0 B5.2 review and specifications →
| Bass Extension (-10dB) | 40Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 60Hz (measured, Erin's Audio Corner) |
| Dimensions | 13.4"H x 7.1"W x 9.2"D (341 x 180 x 234 mm) |
| Drivers | 5.25" aramid-fiber woofer, 1" cloth-dome tweeter |
| Impedance | 6 ohms nominal (manufacturer specified) |
| Sensitivity | About 83dB after recommended EQ (measured, Erin's Audio Corner; 86dB manufacturer specified) |
| Spinorama Preference Score | 4.13 |
| Spinorama Preference Score with Perfect Sub | 6.39 |
| Weight | 13 lbs (5.9 kg) each |
| Woofer Cabinet | ported, front |
