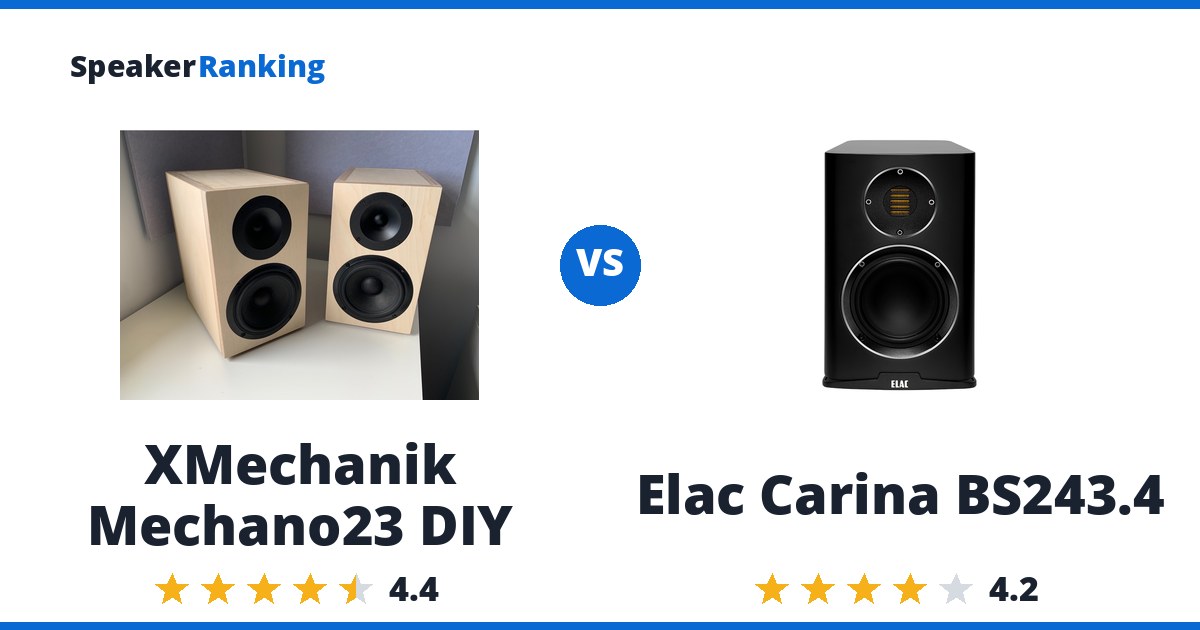

Short answer: the XMechanik Mechano23 DIY. It ranks #6 of 87 bookshelf speakers by sound quality at $48; the Elac Carina BS243.4 ranks #16 and costs $1199, which makes this an easy call rather than a real tradeoff.
What the XMechanik Mechano23 DIY offers: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Watch for: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
What the Elac Carina BS243.4 offers: JET folded-ribbon tweeter - ELAC’s signature technology, normally reserved for its pricier lines - mounted over a 5.25” aluminum-cone woofer, a genuinely differentiated tweeter for a sub-$1,200/pair stand-mount. Positively reviewed by Stereophile and The Absolute Sound for fatigue-free treble detail. Watch for: On-axis deviation (aad_on_axis 0.525) and listening-window smoothness (0.269) are middling for this batch - more ripple in the on-axis response than the pricier active options here. Moderate 85dB sensitivity paired with a 4.8-ohm minimum impedance wants a reasonably powerful amp. Bass extension is average for a 5.25” 2-way at 55.7Hz (-3dB) / 41.5Hz (-10dB).
Buy the XMechanik Mechano23 DIY. It ranks higher for sound quality than the Elac Carina BS243.4 and costs less, so the other one has nothing left to offer.
Looking for alternatives? See the complete Passive Home rankings.
Specifications Side By Side
| XMechanik Mechano23 DIY | Elac Carina BS243.4 | |
|---|---|---|
| Price | $200 per pair DIY parts | $1,199 per pair |
| Ranked | #6 of 87 in Medium Size Bookshelf Speakers | #16 of 87 in Medium Size Bookshelf Speakers |
| Enclosure | ported | - |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer | JET folded-ribbon tweeter, 5.25" aluminum cone woofer |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) | 8.5" x 12.6" x 9.6" (216 x 319 x 245 mm) each |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) | 85dB (2.83V/1m) |
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) | 55.7Hz (measured, spinorama.org) |
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) | 41.5Hz (measured, spinorama.org) |
| Port Tuning | Approximately 45Hz | - |
| Cabinet Material | 18mm Baltic birch plywood | - |
| Country | Design origin: United States (ASR forum); assembled by buyer | - |
| Spinorama Preference Score | 4.70 | 3.94 |
| Spinorama Preference Score with Perfect Sub | 7.16 | 6.07 |
| Impedance | - | 6 ohm nominal, 4.8 ohm minimum |
| Weight | - | 14.8 lbs (6.7 kg) each |
| Woofer Cabinet | - | Bass reflex |
Related Speaker Comparisons
How XMechanik Mechano23 DIY compares with other leading options:
- XMechanik Mechano23 DIY vs Audio First Fidelia
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- Ascend Sierra 1 v2 vs XMechanik Mechano23 DIY
- KEF LS50 Meta vs XMechanik Mechano23 DIY
- Ascend Acoustics HTM-200SE2 vs XMechanik Mechano23 DIY
Prices on this page were last checked September 16, 2026 at 12:41 AM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
XMechanik Mechano23 DIY: $200 per pair DIY parts Madisound (Tweeter) Madisound (Woofer) eBay
Pros: The bass alignment is unusually well damped, with a measured Q of 0.336, among the lowest of any speaker in this catalog, so the -3dB point at 77.6Hz rolls off cleanly instead of building into a resonant bump the way many small ported designs do. On axis deviation measures a tight 0.195dB average, and Audio Science Review’s independent Klippel NFS review called the predicted in room response nearly perfect, with directivity matching that beats some commercial designs costing many times more, all from about $200 in parts. Measured bass extension of 77.6Hz (-3dB), with a measured sensitivity of 85.1dB.
Cons: This is a true DIY project. There is no assembled unit to buy, drivers come from Madisound, the crossover kit comes separately from EZ Speaker Solutions, and the birch plywood cabinet has to be built and finished by hand. Listening window smoothness measures a moderate 0.47 and the sound power directivity index has more variation (standard deviation 4.02) than the tightest speakers in this catalog, so off axis energy isn’t quite as evenly controlled as the excellent on axis figures suggest.
Full XMechanik Mechano23 DIY review and specifications →
| Bass Extension (-10dB) | 42.4Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 77.6Hz (measured, Audio Science Review) |
| Cabinet Material | 18mm Baltic birch plywood |
| Country | Design origin: United States (ASR forum); assembled by buyer |
| Dimensions | 11.4"H x 6.9"W x 10.4"D (290 x 174 x 263 mm) |
| Drivers | Scan-Speak Discovery H2606/9200 1" horn loaded textile dome tweeter, SB Acoustics SB13PFCR25-4 5" fiber cone woofer |
| Enclosure | ported |
| Port Tuning | Approximately 45Hz |
| Sensitivity | 85.1dB @ 2.83V/1m (measured, Audio Science Review) |
| Spinorama Preference Score | 4.70 |
| Spinorama Preference Score with Perfect Sub | 7.16 |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- XMechanik Mechano23 DIY vs Ascend Acoustics HTM-200SE2
- XMechanik Mechano23 DIY vs Arendal 1961 Monitor
- XMechanik Mechano23 DIY vs KEF LS50 Meta
- XMechanik Mechano23 DIY vs Ascend Sierra 1 v2
- XMechanik Mechano23 DIY vs Philharmonic Ceramic Mini
- XMechanik Mechano23 DIY vs Ascend Acoustics Luna V2 Mini-Monitor Titan
- XMechanik Mechano23 DIY vs Aalto Speakers Aalto 1 EVO
- XMechanik Mechano23 DIY vs Audio First Fidelia
- See all 20 comparisons
Elac Carina BS243.4: $1,199 per pair B&H Photo Video ELAC America eBay
Pros: JET folded-ribbon tweeter - ELAC’s signature technology, normally reserved for its pricier lines - mounted over a 5.25” aluminum-cone woofer, a genuinely differentiated tweeter for a sub-$1,200/pair stand-mount. Positively reviewed by Stereophile and The Absolute Sound for fatigue-free treble detail. Measured bass extension of 55.7Hz (-3dB).
Cons: On-axis deviation (aad_on_axis 0.525) and listening-window smoothness (0.269) are middling for this batch - more ripple in the on-axis response than the pricier active options here. Moderate 85dB sensitivity paired with a 4.8-ohm minimum impedance wants a reasonably powerful amp. Bass extension is average for a 5.25” 2-way at 55.7Hz (-3dB) / 41.5Hz (-10dB).
Full Elac Carina BS243.4 review and specifications →
| Bass Extension (-10dB) | 41.5Hz (measured, spinorama.org) |
|---|---|
| Bass Extension (-3dB) | 55.7Hz (measured, spinorama.org) |
| Dimensions | 8.5" x 12.6" x 9.6" (216 x 319 x 245 mm) each |
| Drivers | JET folded-ribbon tweeter, 5.25" aluminum cone woofer |
| Impedance | 6 ohm nominal, 4.8 ohm minimum |
| Sensitivity | 85dB (2.83V/1m) |
| Spinorama Preference Score | 3.94 |
| Spinorama Preference Score with Perfect Sub | 6.07 |
| Weight | 14.8 lbs (6.7 kg) each |
| Woofer Cabinet | Bass reflex |
