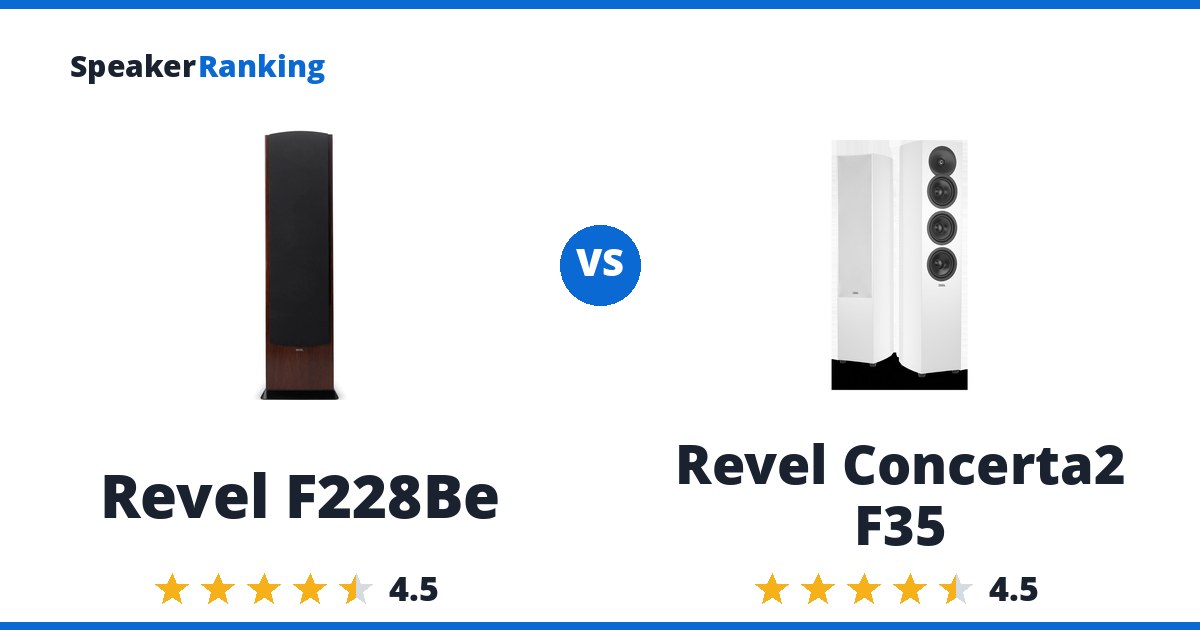

Short answer: the Revel F228Be for better sound quality, the Revel Concerta2 F35 for the lower price. The Revel F228Be ranks #15 of 56 floorstanding speakers at $7000. The Revel Concerta2 F35 ranks #18 at $900, $6100 cheaper.
What the Revel F228Be gets right: CEA2034 spinorama shows an essentially flat on-axis response with very nice directivity. The catch: Minimum impedance dips to 3.4 ohms with a secondary rise around 2kHz, calling for an amplifier comfortable with a demanding load.
What the Revel Concerta2 F35 offers: Two-and-a-half-way, four-driver design: a 1” aluminum dome tweeter on a waveguide, a 5.25” mid-range, and dual 5.25” mid-bass drivers in a rear-ported cabinet. Watch for: F3 of 61Hz and F10 of 39Hz mean a subwoofer is needed for real bass extension.
Buy the Revel F228Be if sound quality matters more than the price. Buy the Revel Concerta2 F35 if the price matters more than sound quality.
Specifications Side By Side
| Revel F228Be | Revel Concerta2 F35 | |
|---|---|---|
| Price | $7000 | $900 |
| Ranked | #15 of 56 in Large Size Floorstanding Speakers | #18 of 56 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 25Hz (measured, Audio Science Review) | 50Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 61Hz (measured, Audio Science Review) | 70Hz (measured, Erin’s Audio Corner) |
| Dimensions | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) | 40.3"H x 8.4"W x 12.2"D (1023.6 x 213.4 x 309.9 mm) |
| Impedance | 8 ohms | 6 ohms nominal (3.8 ohms minimum, measured by Erin’s Audio Corner) |
| Drivers | Dual 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter | 3x 5.25" deep anodized aluminum cone woofers, 1" Aluminum Tweeter |
| Sensitivity | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) | 89.4dB (measured, Erin’s Audio Corner; 90dB manufacturer specified) |
| Weight | 112.4 lbs / 51 kg each | 41 lbs / 18.6 kg each |
| Woofer Cabinet | ported, front | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- MoFi SourcePoint 888 vs Revel F206
- Revel F226Be vs JBL Studio 698
- JBL HDI-3800 vs Revel F208
- Focal Chora 816 vs Revel F228Be
- Revel F228Be vs Emotiva Airmotiv T2+
The Two Speakers In Full
Revel F228Be: $7000 Crutchfield
Pros: CEA2034 spinorama shows an essentially flat on-axis response with very nice directivity. Predicted in-room response is nearly perfect, with a smooth slope down from bass to treble. Horizontal beamwidth of about ±70 degrees is wide and holds up well until narrowing above 8kHz. Vertical directivity offers more degrees of listening-height freedom than a typical bookshelf design, a benefit of this tower’s driver layout. Distortion is extremely low across the full audio range at 86dB SPL/1m and stays comfortable even at 96dB SPL/1m. Near-field measurements of the individual drivers show nice, well-integrated crossover behavior with only low-level resonances.
Cons: Minimum impedance dips to 3.4 ohms with a secondary rise around 2kHz, calling for an amplifier comfortable with a demanding load. Very expensive and very heavy (51 kg each).
Full Revel F228Be review and specifications →
| Bass Extension (-10dB) | 25Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 61Hz (measured, Audio Science Review) |
| Dimensions | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) |
| Drivers | Dual 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter |
| Impedance | 8 ohms |
| Sensitivity | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) |
| Weight | 112.4 lbs / 51 kg each |
| Woofer Cabinet | ported, front |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Revel Concerta2 F35: $900 Crutchfield
Pros: Two-and-a-half-way, four-driver design: a 1” aluminum dome tweeter on a waveguide, a 5.25” mid-range, and dual 5.25” mid-bass drivers in a rear-ported cabinet. Measured sensitivity of 89.4dB closely matches the 90dB spec, and distortion looks good at both 86dB and 96dB, holding up well even with a high-pass filter applied. At its sale price (around $900/pair, down from full retail), the reviewer calls it a “no-brainer,” undercutting comparable budget floorstanders like the ELAC DF63. Frequency response and directivity mismatches are largely EQ-able, since most of what shows up in measurements traces to physical tweeter/mid-range separation rather than a fundamental flaw. Compression is fairly well controlled for the price - about 1dB of loss around 100Hz under long-term compression, described as “par for the course” at this cost.
Cons: F3 of 61Hz and F10 of 39Hz mean a subwoofer is needed for real bass extension. A dip in the lower midrange/2-3kHz region reduces attack and detail, and a peak around 5kHz adds some edge and sibilance in the lower treble. A peak in off-axis energy around 3kHz reflects off sidewalls at roughly 60-70° off-axis and arrives louder than the direct sound - this specific issue can’t be fixed with EQ (boosting the direct sound would boost the stronger reflection too) and would need acoustic absorption to properly address, though the reviewer considers it a minor, optional fix at this price. A couple of minor resonances appear in the impedance plot, including one around 300Hz that may partly explain a subtle sense of vocal warmth noticed in listening, though it’s more likely room-related. Minimum impedance around 3.8 ohms. Short-term compression testing shows some increased distortion in the tweeter and higher-frequency compression at loud output.
Full Revel Concerta2 F35 review and specifications →
| Bass Extension (-10dB) | 50Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 70Hz (measured, Erin's Audio Corner) |
| Dimensions | 40.3"H x 8.4"W x 12.2"D (1023.6 x 213.4 x 309.9 mm) |
| Drivers | 3x 5.25" deep anodized aluminum cone woofers, 1" Aluminum Tweeter |
| Impedance | 6 ohms nominal (3.8 ohms minimum, measured by Erin's Audio Corner) |
| Sensitivity | 89.4dB (measured, Erin's Audio Corner; 90dB manufacturer specified) |
| Weight | 41 lbs / 18.6 kg each |
| Woofer Cabinet | ported, rear |
