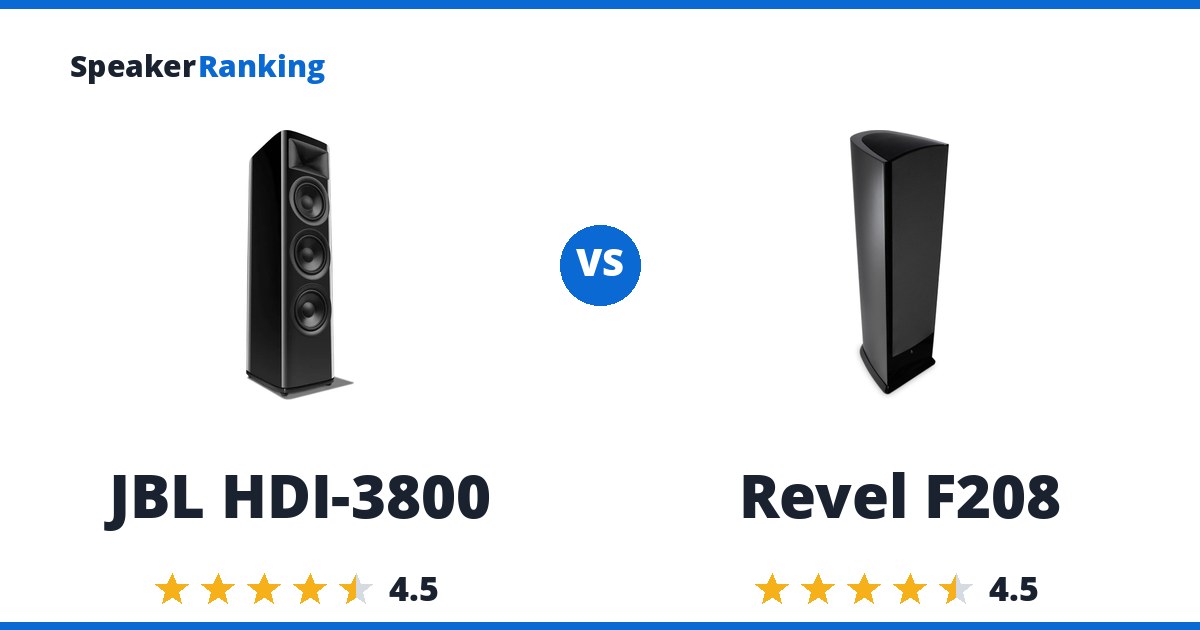

Short answer: the JBL HDI-3800 for directivity and dynamics, the Revel F208 for a flat on-axis response. The F208 measures fairly even on-axis with sensitivity matching its roughly 87-88dB spec, but shows directivity error and tweeter ripple right at the 2.2kHz crossover. The HDI-3800’s compression driver and HDI horn give exceptional horizontal directivity, high output and effortless transients, its flaw a narrow 8-10kHz elevation that improves when toed out.
Buy the JBL HDI-3800 or the Revel F208, whichever you find used in better condition; both are discontinued. For a new speaker, start with the MoFi SourcePoint 888 instead.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| JBL HDI-3800 | Revel F208 | |
|---|---|---|
| Price | $5,000 per pair Discontinued | $4,800 per pair used, Discontinued |
| Ranked | #14 of 74 in Large Size Floorstanding Speakers | #16 of 74 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 28Hz (measured, Erin’s Audio Corner) | 24Hz (measured, Audio Science Review) |
| Bass Extension (-3dB) | 37Hz (measured, Erin’s Audio Corner) | 47Hz (measured, Audio Science Review) |
| Dimensions | 43.3”H x 11.8”W x 16.4”D (1100.5 x 300.0 x 417.8 mm) | 46.6”H x 13.5”W x 14.8”D (1183.6 x 342.9 x 375.9 mm) |
| Impedance | 4 ohms nominal (3.8 ohms minimum, measured by Erin’s Audio Corner) | 8 ohms nominal, 3.5 ohms minimum (measured, Audio Science Review) |
| Sensitivity | 92dB (measured average, Erin’s Audio Corner) | 88.2dB (measured by Audio Science Review; 88.5dB manufacturer specified) |
| Drivers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers | Dual 8” (20 cm) Aluminum Cone, Cast-frame Woofers, 5.25” (13.3 cm) Aluminum Cone, Cast-frame Midrange, 1” (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide |
| Weight | 83.8 lbs (38.0 kg) each | 79.4 lbs (36 kg) each |
| Woofer Cabinet | ported, rear | ported, front |
| Spinorama Preference Score | 5.62 | 6.35 |
| Spinorama Preference Score with Perfect Sub | 7.03 | 7.67 |
| DIY Kit | No | No |
Related Speaker Comparisons
More top alternatives to JBL HDI-3800:
- KEF Blade Two Meta vs JBL HDI-3800
- JBL HDI-3800 vs MoFi SourcePoint V10 Master Edition
- MoFi SourcePoint 888 vs JBL HDI-3800
- JBL HDI-3800 vs Revel F328Be
- Ascend Acoustics ELX Ribbon Tower vs JBL HDI-3800
Prices on this page were last checked October 2, 2026 at 10:18 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
JBL HDI-3800: $5,000 per pair Discontinued eBay
Pros: 2410H-2 1” Teonex compression driver matched to a custom High-Definition Imaging (HDI) horn geometry achieves exceptional horizontal directivity control, high output capability, and effortless transient response. Triple 8” Advanced Aluminum Matrix woofers deliver deep, authoritative bass extension down to an F3 of 37Hz and F10 of 28Hz with minimal low-frequency compression. Outstanding sensitivity (92dB SPL at 2.83V/1m) and ultra-low THD/multitone distortion allow extremely high undistorted SPL output in large home theater spaces. Measured bass extension of 37Hz (-3dB), with a measured sensitivity of 92dB.
Cons: On-axis frequency response features a narrow upper-frequency elevation around 8-10kHz, performing noticeably smoother when toed out 10-20° off-axis. Vertical directivity handoff across the triple woofer layout creates vertical soundstage height tilt depending on listening distance and ear height. Minimum impedance dips to 3.8 ohms, requiring high-current amplifier stability. Substantial cabinet dimensions and 38kg weight require significant room real estate. Discontinued.
Full JBL HDI-3800 review and specifications →
| Bass Extension (-10dB) | 28Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 37Hz (measured, Erin’s Audio Corner) |
| DIY Kit | No |
| Dimensions | 43.3”H x 11.8”W x 16.4”D (1100.5 x 300.0 x 417.8 mm) |
| Drivers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers |
| Impedance | 4 ohms nominal (3.8 ohms minimum, measured by Erin’s Audio Corner) |
| Sensitivity | 92dB (measured average, Erin’s Audio Corner) |
| Spinorama Preference Score | 5.62 |
| Spinorama Preference Score with Perfect Sub | 7.03 |
| Weight | 83.8 lbs (38.0 kg) each |
| Woofer Cabinet | ported, rear |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Revel F208: $4,800 per pair used Discontinued eBay
Newer model: the Revel F228Be, ranked lower, rated 4.5/5.
Pros: CEA2034 spinorama shows a fairly even on-axis response with sensitivity matching spec at ~87-88dB. Predicted in-room response is a smooth, textbook-quality downward slope that should translate well to most rooms without correction. Early reflections sum so cleanly with the direct sound that side-wall absorption isn’t recommended: it would work against the speaker’s naturally well-integrated off-axis behavior. Distortion stays below 0.5% from 100Hz up at 96dB/1m, with all distortion components falling below audible threshold above 200Hz. Very wide horizontal directivity of about ±75 degrees. Measured performance was judged very close to Revel’s own flagship Salon2, and Revel’s speakers (including this one) are developed using Harman’s double-blind listening test methodology. Preference score of 7.4 (7.7 with a subwoofer added). Measured bass extension of 47Hz (-3dB), with a measured sensitivity of 88.2dB.
Cons: Some directivity error and tweeter-response ripple right at the 2.2kHz crossover point. A notable on-axis dip at about 4kHz, attributed to probable cabinet diffraction. Cumulative spectral decay (waterfall) shows an unexplained resonance around 4-5kHz that the reviewer couldn’t pin down a clear cause for. Vertical directivity shows narrowband interference nulls just above and below the tweeter axis (roughly 2-3kHz), typical of a non-coaxial tower with vertically separated drivers, so listening height matters more than it would with a coincident design. Minimum impedance dips to 3.4 ohms, calling for a robust, high-current amplifier. Distortion climbs substantially below about 80-100Hz (up to ~5% in the deep bass) when driven hard, an excursion-limited trade-off typical of towers at high output. Isolating the woofers alone shows their usable range ending around 500-700Hz at the crossover, with somewhat elevated (though still low in absolute terms) 2nd/3rd harmonic distortion in the 100-300Hz region. Discontinued.
Full Revel F208 review and specifications →
| Bass Extension (-10dB) | 24Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 47Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 46.6”H x 13.5”W x 14.8”D (1183.6 x 342.9 x 375.9 mm) |
| Drivers | Dual 8” (20 cm) Aluminum Cone, Cast-frame Woofers, 5.25” (13.3 cm) Aluminum Cone, Cast-frame Midrange, 1” (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide |
| Impedance | 8 ohms nominal, 3.5 ohms minimum (measured, Audio Science Review) |
| Sensitivity | 88.2dB (measured by Audio Science Review; 88.5dB manufacturer specified) |
| Spinorama Preference Score | 6.35 |
| Spinorama Preference Score with Perfect Sub | 7.67 |
| Weight | 79.4 lbs (36 kg) each |
| Woofer Cabinet | ported, front |
