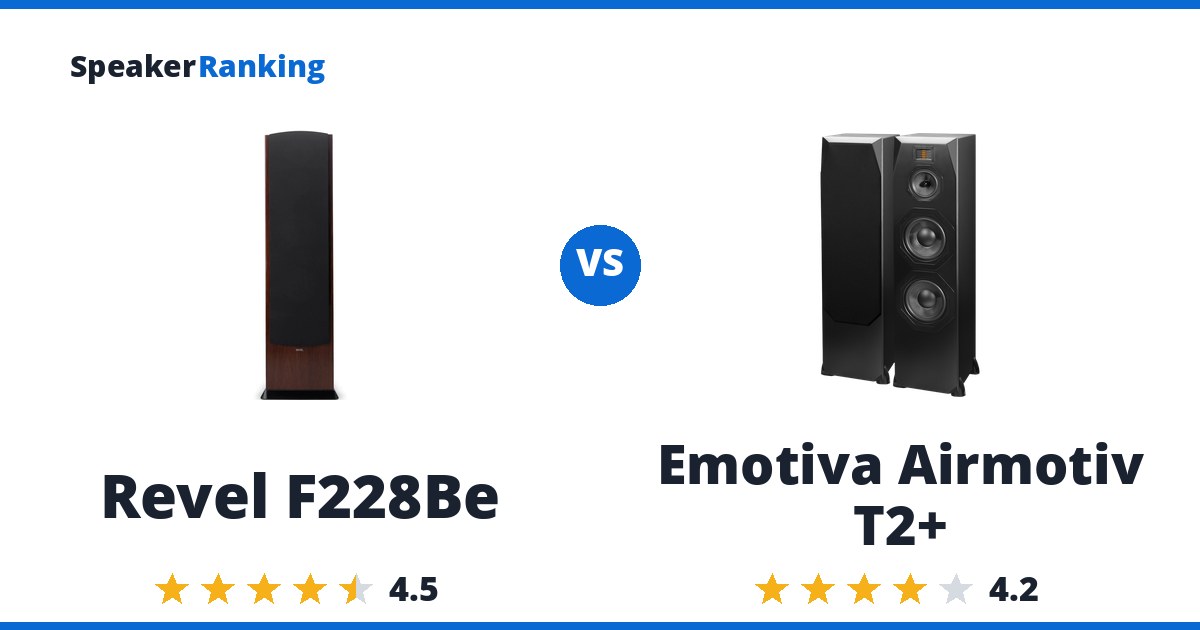

Short answer: the Revel F228Be for better sound quality, the Emotiva Airmotiv T2+ for the lower price. The Revel F228Be ranks #15 of 56 floorstanding speakers at $7000. The Emotiva Airmotiv T2+ ranks #22 at $999, $6001 cheaper.
On the Revel F228Be side: CEA2034 spinorama shows an essentially flat on-axis response with very nice directivity. Set against that: Minimum impedance dips to 3.4 ohms with a secondary rise around 2kHz, calling for an amplifier comfortable with a demanding load.
The case for the Emotiva Airmotiv T2+: High-value three-way tower with strong output and unusually deep usable sealed-room bass for the price. The tradeoff: The nominal 4-ohm system approaches 3 ohms near 100Hz in Erin’s measurement, so a high-current amplifier is preferable.
Buy the Revel F228Be if sound quality matters more than the price. Buy the Emotiva Airmotiv T2+ if the price matters more than sound quality.
Specifications Side By Side
| Revel F228Be | Emotiva Airmotiv T2+ | |
|---|---|---|
| Price | $7000 | $999/pair |
| Ranked | #15 of 56 in Large Size Floorstanding Speakers | #22 of 56 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 25Hz (measured, Audio Science Review) | 32Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 61Hz (measured, Audio Science Review) | 62Hz (measured, Erin’s Audio Corner) |
| Dimensions | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) | 42.7"H x 12.2"W x 12.3"D |
| Impedance | 8 ohms | Approximately 3 ohms minimum near 100Hz (measured, Erin’s Audio Corner) |
| Drivers | Dual 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter | 32mm folded-ribbon tweeter; 5.25" midrange; dual 8" woofers |
| Sensitivity | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) | Approximately 89.5dB/2.83V/1m (measured, Erin’s Audio Corner) |
| Weight | 112.4 lbs / 51 kg each | 56.9 lb each |
| Woofer Cabinet | ported, front | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Revel F226Be vs JBL Studio 698
- JBL HDI-3800 vs Revel F208
- KEF Reference 203 vs Revel F208
- Focal Chora 816 vs Revel F228Be
- Revel F228Be vs Revel Concerta2 F35
The Two Speakers In Full
Revel F228Be: $7000 Crutchfield
Pros: CEA2034 spinorama shows an essentially flat on-axis response with very nice directivity. Predicted in-room response is nearly perfect, with a smooth slope down from bass to treble. Horizontal beamwidth of about ±70 degrees is wide and holds up well until narrowing above 8kHz. Vertical directivity offers more degrees of listening-height freedom than a typical bookshelf design, a benefit of this tower’s driver layout. Distortion is extremely low across the full audio range at 86dB SPL/1m and stays comfortable even at 96dB SPL/1m. Near-field measurements of the individual drivers show nice, well-integrated crossover behavior with only low-level resonances.
Cons: Minimum impedance dips to 3.4 ohms with a secondary rise around 2kHz, calling for an amplifier comfortable with a demanding load. Very expensive and very heavy (51 kg each).
Full Revel F228Be review and specifications →
| Bass Extension (-10dB) | 25Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 61Hz (measured, Audio Science Review) |
| Dimensions | 50.9"H x 13.5"W x 17.6"D (1292.9 x 342.9 x 447 mm) |
| Drivers | Dual 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1" (25mm) Beryllium dome, with acoustic lens waveguide tweeter |
| Impedance | 8 ohms |
| Sensitivity | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) |
| Weight | 112.4 lbs / 51 kg each |
| Woofer Cabinet | ported, front |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Emotiva Airmotiv T2+: $999/pair Emotiva
Pros: High-value three-way tower with strong output and unusually deep usable sealed-room bass for the price. Erin measured F3 at 62Hz and F10 at 32Hz, with sensitivity just under 90dB/2.83V/1m. Dual 8-inch woven-fiber woofers relieve the 5.25-inch midrange, and the 32mm folded-ribbon tweeter provides broad horizontal coverage. Approximately +/-2.5dB response linearity, solid cabinet bracing and low compression allow substantial playback levels; the gradual low-frequency roll-off integrates well with either room gain or a subwoofer.
Cons: The nominal 4-ohm system approaches 3 ohms near 100Hz in Erin’s measurement, so a high-current amplifier is preferable. Horizontal and especially vertical directivity through the midrange/tweeter transition is less uniform than the best waveguided or coaxial designs; listener height and nearby reflections matter, and EQ cannot correct the narrowing mismatch. The large rear-ported cabinet needs placement clearance, and its deep F10 should not be confused with flat 30Hz output at cinema levels.
Full Emotiva Airmotiv T2+ review and specifications →
| Bass Extension (-10dB) | 32Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 62Hz (measured, Erin's Audio Corner) |
| Dimensions | 42.7"H x 12.2"W x 12.3"D |
| Drivers | 32mm folded-ribbon tweeter; 5.25" midrange; dual 8" woofers |
| Impedance | Approximately 3 ohms minimum near 100Hz (measured, Erin's Audio Corner) |
| Sensitivity | Approximately 89.5dB/2.83V/1m (measured, Erin's Audio Corner) |
| Weight | 56.9 lb each |
| Woofer Cabinet | ported, rear |
