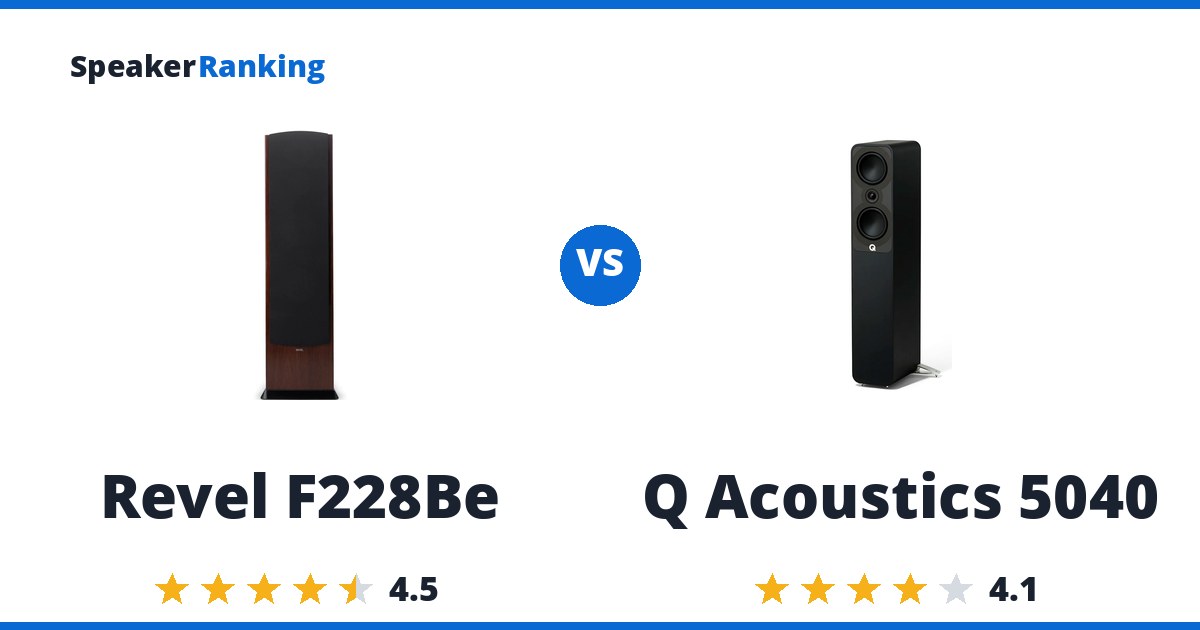

Short answer: the Revel F228Be, the less placement-sensitive tower. The Q Acoustics 5040 uses C3 driver profile technology for smooth midrange integration and controlled cone breakup, but a mid-bass scoop around 200Hz produces an F3 of 70Hz and forces boundary placement 11-22 inches from the front wall. The F228Be is essentially flat on-axis with very nice directivity, though it dips to 3.4 ohms.
Buy the Revel F228Be if sound quality matters more than the price. Buy the Q Acoustics 5040 if the price matters more than sound quality.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| Revel F228Be | Q Acoustics 5040 | |
|---|---|---|
| Price | $9,000 per pair | $2,472.98 per pair |
| Ranked | #17 of 74 in Large Size Floorstanding Speakers | #41 of 74 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 25Hz (measured, Audio Science Review) | 39Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 61Hz (measured, Audio Science Review) | 70Hz (measured, Erin’s Audio Corner) |
| Dimensions | 50.9”H x 13.5”W x 17.6”D (1292.9 x 342.9 x 447 mm) | 38.1”H x 11.5”W x 14.2”D (967 x 293 x 361 mm) |
| Impedance | 8 ohms | 6 ohms nominal (3.0 ohms minimum, measured by Erin’s Audio Corner) |
| Drivers | Dual 8” (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4” (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1” (25mm) Beryllium dome, with acoustic lens waveguide tweeter | 0.88 in. decoupled dome tweeter, twin 5.0 in. C3 Continuous Curved Cone woofers |
| Sensitivity | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) | 91.5dB (measured average, Erin’s Audio Corner) |
| Weight | 112.4 lbs (51 kg) each | 39.7 lbs (18.0 kg) each |
| Woofer Cabinet | ported, front | ported, rear |
| Spinorama Preference Score | 6.01 | 3.80 |
| Spinorama Preference Score with Perfect Sub | 7.51 | 6.41 |
| DIY Kit | No | No |
Related Speaker Comparisons
More worthwhile head-to-heads for Revel F228Be:
- KEF Blade Two Meta vs Revel F228Be
- MoFi SourcePoint V10 Master Edition vs Revel F228Be
- MoFi SourcePoint 888 vs Revel F228Be
- Revel F228Be vs Revel F328Be
- Radiant Acoustics Clarity 66 vs Revel F228Be
Prices on this page were last checked October 3, 2026 at 10:26 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
Revel F228Be: $9,000 per pair Crutchfield eBay
Older model: the Revel F208 (ranked higher, rated 4.5/5).
Pros: CEA2034 spinorama shows an essentially flat on-axis response with very nice directivity. Predicted in-room response is nearly perfect, with a smooth slope down from bass to treble. Horizontal beamwidth of about ±70 degrees is wide and holds up well until narrowing above 8kHz. Vertical directivity offers more degrees of listening-height freedom than a typical bookshelf design, a benefit of this tower’s driver layout. Distortion is extremely low across the full audio range at 86dB SPL/1m and stays comfortable even at 96dB SPL/1m. Near-field measurements of the individual drivers show nice, well-integrated crossover behavior with only low-level resonances. Measured bass extension of 61Hz (-3dB), with a measured sensitivity of 89.3dB.
Cons: Minimum impedance dips to 3.4 ohms with a secondary rise around 2kHz, calling for an amplifier comfortable with a demanding load. Very expensive and very heavy (51 kg each).
Full Revel F228Be review and specifications →
| Bass Extension (-10dB) | 25Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 61Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 50.9”H x 13.5”W x 17.6”D (1292.9 x 342.9 x 447 mm) |
| Drivers | Dual 8” (200mm) Deep Ceramic Composite aluminum cones, with cast frames woofers, 5-1/4” (130mm) Deep Ceramic Composite aluminum cone, with cast frame midrange, 1” (25mm) Beryllium dome, with acoustic lens waveguide tweeter |
| Impedance | 8 ohms |
| Sensitivity | 89.3dB (300Hz-3kHz @ 2.83V/1m, measured by Audio Science Review; 90dB manufacturer specified) |
| Spinorama Preference Score | 6.01 |
| Spinorama Preference Score with Perfect Sub | 7.51 |
| Weight | 112.4 lbs (51 kg) each |
| Woofer Cabinet | ported, front |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Q Acoustics 5040: $2,472.98 per pair Amazon eBay
Pros: C3 (Continuous Curved Cone) driver profile technology provides smooth midrange integration, controlled cone breakup, and improved bass damping. High voltage sensitivity (91.5dB SPL at 2.83V/1m) allows loud listening with low-to-moderate amplifier wattage. Cabinet features Point-to-Point (P2P) internal bracing and Helmholtz Pressure Equalizer (HPE) tubes to suppress internal standing waves and panel vibrations. Measured bass extension of 70Hz (-3dB), with a measured sensitivity of 91.5dB.
Cons: Free-field frequency response exhibits a noticeable mid-bass scoop around 200Hz (~6dB lower than mean SPL), causing an F3 of 70Hz (F10 of 39Hz) in open space and requiring boundary placement (11-22 inches from front wall) to reinforce upper bass output. Measurements indicate an enclosure resonance near 300Hz visible in sound power data. Minimum impedance drops to 3.0 ohms, demanding a stable 4-ohm rated amplifier despite high sensitivity.
Full Q Acoustics 5040 review and specifications →
| Bass Extension (-10dB) | 39Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 70Hz (measured, Erin’s Audio Corner) |
| DIY Kit | No |
| Dimensions | 38.1”H x 11.5”W x 14.2”D (967 x 293 x 361 mm) |
| Drivers | 0.88 in. decoupled dome tweeter, twin 5.0 in. C3 Continuous Curved Cone woofers |
| Impedance | 6 ohms nominal (3.0 ohms minimum, measured by Erin’s Audio Corner) |
| Sensitivity | 91.5dB (measured average, Erin’s Audio Corner) |
| Spinorama Preference Score | 3.80 |
| Spinorama Preference Score with Perfect Sub | 6.41 |
| Weight | 39.7 lbs (18.0 kg) each |
| Woofer Cabinet | ported, rear |
