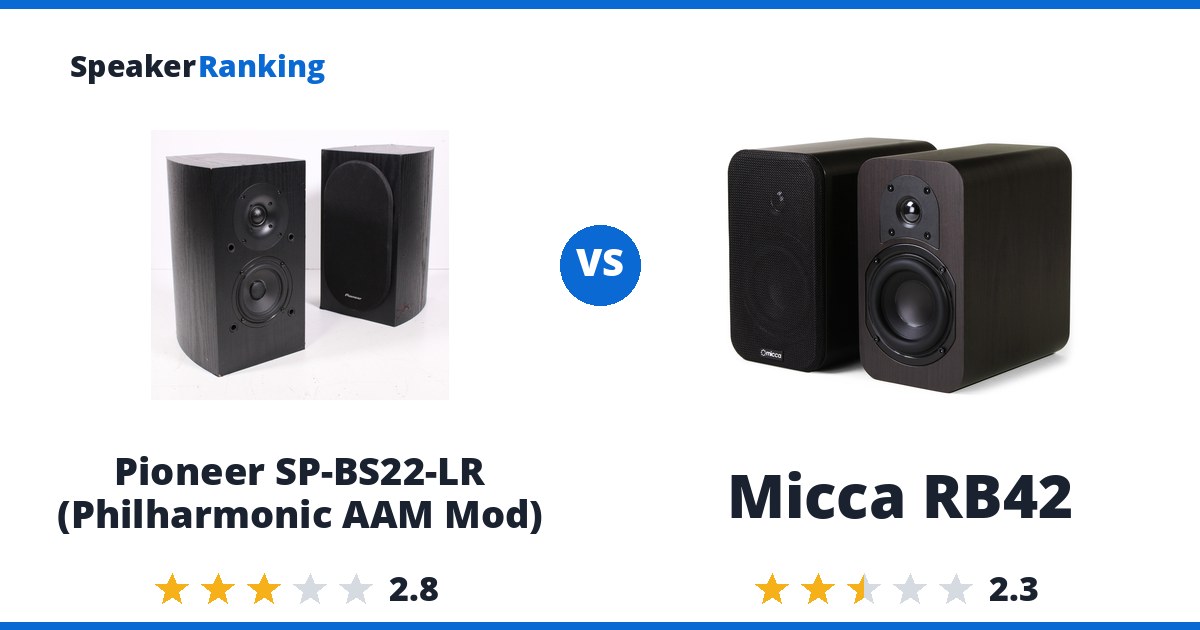

Short answer: the Pioneer SP-BS22-LR in Philharmonic AAM form, though neither ranks well in its class. The Micca RB42’s curved cabinet fit and finish look far more expensive than the speaker is, but its spinorama shows significant peaks and valleys in the on-axis and listening-window response starting a few kHz up. The AAM mod by Dennis Murphy of the discontinued budget Pioneer shows only some directivity error near the crossover. Both are rated below 3.0/5 among the 90 bookshelf speakers; for better sound, the Neumi BS5 ranks #22 at $139.99.
Buy the Micca RB42 new; the Pioneer SP-BS22-LR (Philharmonic AAM Mod) is no longer sold new, so it only makes sense as a used find.
Looking for alternatives? See the complete Passive Home rankings.
Specifications Side By Side
| Pioneer SP-BS22-LR (Philharmonic AAM Mod) | Micca RB42 | |
|---|---|---|
| Price | $168 per pair Discontinued | $159.99 per pair |
| Ranked | #63 of 90 in Medium Size Bookshelf Speakers | #75 of 90 in Medium Size Bookshelf Speakers |
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) | 85Hz (measured, Audio Science Review) - the reviewer noted an artificial boost around 100-300Hz, so true extension may be worse than this on-axis reading suggests |
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) | 62Hz (measured, Audio Science Review) - the reviewer noted an artificial boost around 100-300Hz, so true extension may be worse than this on-axis reading suggests |
| Drivers | 1x 4” curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1” silk dome tweeter (replacement) | 4” coated paper woofer, 0.75” silk dome tweeter |
| Weight | 9 lbs (4.1 kg) | 6 lbs (2.7 kg) each (per retailer listing) |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) | 80dB (2.83V/1m, measured, Audio Science Review) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) | 4-8 ohms |
| Crossover Frequency | 3000Hz | - |
| Dimensions | 12.6”H x 7.1”W x 8.5”D (320.0 x 180.0 x 215.0 mm) | 8.7H x 4.9W x 7.9D in |
| Woofer Cabinet | ported, rear | ported, front |
| Spinorama Preference Score | 5.07 | 4.59 |
| Spinorama Preference Score with Perfect Sub | 7.82 | 6.87 |
| DIY Kit | Yes | No |
| Frequency Response | - | 50Hz - 20kHz (Manufacturer specified, typical in-room) |
| Power Handling | - | 15-100W each |
Related Speaker Comparisons
More top alternatives to Pioneer SP-BS22-LR (Philharmonic AAM Mod):
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Ascend Sierra 1 v2
- KEF LS50 Meta vs Pioneer SP-BS22-LR (Philharmonic AAM Mod)
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Arendal 1961 Monitor
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Revel M105
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Klipsch RP-500M II
Prices on this page were last checked October 2, 2026 at 10:18 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
Pioneer SP-BS22-LR (Philharmonic AAM Mod): $168 per pair Discontinued eBay
Pros: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued, budget Pioneer SP-BS22-LR: the stock tweeter is swapped for a Peerless BC25TG15 dome and a redesigned 3rd-order crossover is built to match it to the stock 4” woofer. CEA2034 spinorama shows only small variations from a flat on-axis response with some directivity error near the crossover, a marked improvement over the unmodified Pioneer, which the reviewer notes shows much more variation from flat. Distortion at 86dB SPL/1m is reasonably controlled above 200Hz, and tweeter distortion barely rises even at 96dB SPL/1m. Measured bass extension of 78Hz (-3dB), with a measured sensitivity of 83dB.
Cons: Some directivity error appears near the crossover frequency. Distortion climbs in the woofer’s range (below 200Hz) at both 86dB and 96dB SPL/1m. Minimum impedance dips to about 5 ohms with a couple of resonance peaks. This is a DIY project, not a finished retail product: Murphy sold ~$168 pre-built pairs for a while but no longer does, so it now requires sourcing a used/discontinued Pioneer SP-BS22-LR pair plus building the crossover and swapping the tweeter yourself. The mod itself is public domain, but there is no current turnkey way to buy this speaker.
Full Pioneer SP-BS22-LR (Philharmonic AAM Mod) review and specifications →
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) |
| Crossover Frequency | 3000Hz |
| DIY Kit | Yes |
| Dimensions | 12.6”H x 7.1”W x 8.5”D (320.0 x 180.0 x 215.0 mm) |
| Drivers | 1x 4” curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1” silk dome tweeter (replacement) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) |
| Spinorama Preference Score | 5.07 |
| Spinorama Preference Score with Perfect Sub | 7.82 |
| Weight | 9 lbs (4.1 kg) |
| Woofer Cabinet | ported, rear |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Dynaudio X14
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs MartinLogan Motion 4i
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs ELAC BS U5
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs JBL L52 Classic
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Dynaudio Emit M10
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Parts Express Copperhead Desktop Kit
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs JBL Stage A120
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs ELAC Uni-Fi 2.0 UB52
- See all 36 comparisons
Micca RB42: $159.99 per pair Amazon eBay
Pros: Curved cabinet fit and finish look closer to a speaker costing three times as much. Rated for a wide 15-100W amplifier range with 4-8 ohm compatibility, giving flexibility with modest amplification. Measured bass extension of 85Hz (-3dB), with a measured sensitivity of 80dB.
Cons: CEA2034 spinorama shows significant peaks and valleys in the on-axis and listening-window response starting a few kHz up, with excess high-frequency energy the reviewer found fatiguing over time despite an initial impression of “detail.” Off-axis response diverges heavily from on-axis, meaning tonality shifts with room and listening position in ways EQ can’t correct. Distorts and the woofer visibly flaps under moderate volume; low 83dB sensitivity makes it a harder amplifier load than its size suggests.
Full Micca RB42 review and specifications →
| Bass Extension (-10dB) | 62Hz (measured, Audio Science Review) - the reviewer noted an artificial boost around 100-300Hz, so true extension may be worse than this on-axis reading suggests |
|---|---|
| Bass Extension (-3dB) | 85Hz (measured, Audio Science Review) - the reviewer noted an artificial boost around 100-300Hz, so true extension may be worse than this on-axis reading suggests |
| DIY Kit | No |
| Dimensions | 8.7H x 4.9W x 7.9D in |
| Drivers | 4” coated paper woofer, 0.75” silk dome tweeter |
| Frequency Response | 50Hz - 20kHz (Manufacturer specified, typical in-room) |
| Impedance | 4-8 ohms |
| Power Handling | 15-100W each |
| Sensitivity | 80dB (2.83V/1m, measured, Audio Science Review) |
| Spinorama Preference Score | 4.59 |
| Spinorama Preference Score with Perfect Sub | 6.87 |
| Weight | 6 lbs (2.7 kg) each (per retailer listing) |
| Woofer Cabinet | ported, front |
