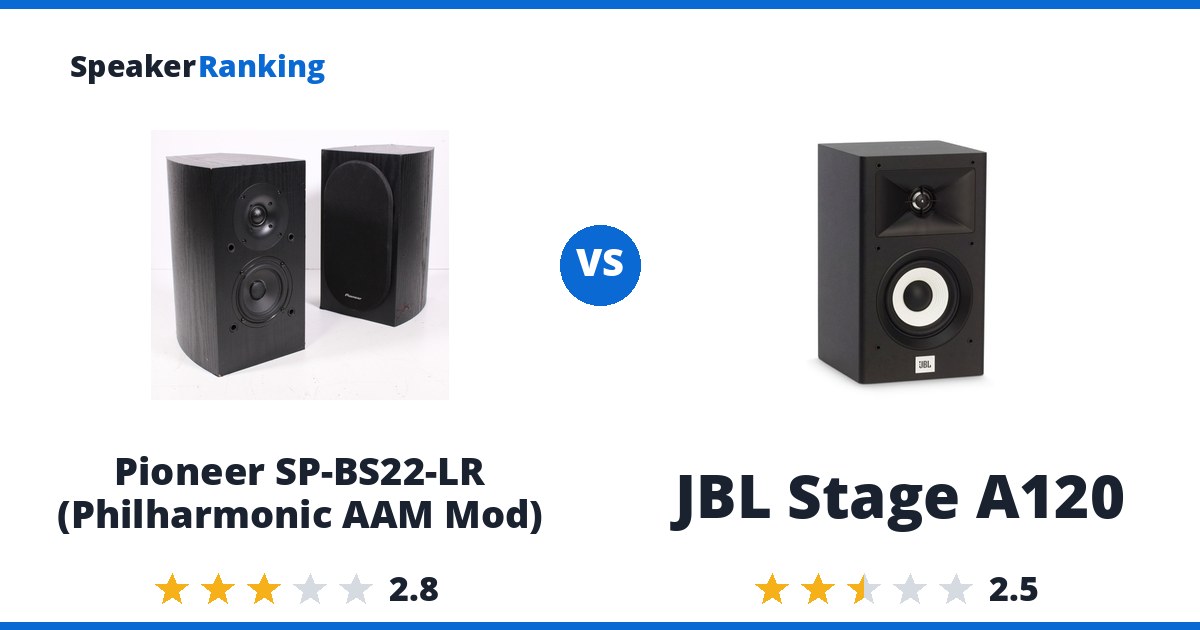

Short answer: the Pioneer SP-BS22-LR (Philharmonic AAM Mod). It ranks #33 of 56 bookshelf speakers by sound quality at $168; the JBL Stage A120 ranks #36 and costs $299, so there is not much of a tradeoff to weigh.
What the Pioneer SP-BS22-LR (Philharmonic AAM Mod) gets right: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued. The catch: Some directivity error appears near the crossover frequency.
The case for the JBL Stage A120: Comes with a port bung, letting you experiment between ported and sealed configurations - the reviewer found the sound improved somewhat with the port sealed. The tradeoff: A pronounced “Batman”-shaped frequency response: boosted bass, a scooped midrange, and elevated treble (about 3-4dB above the midrange), driven partly by confirmed cabinet panel resonance around 800Hz-1.7kHz.
Buy the Pioneer SP-BS22-LR (Philharmonic AAM Mod). It ranks higher for sound quality than the JBL Stage A120 and costs less, so there is no real case for the other one.
Specifications Side By Side
| Pioneer SP-BS22-LR (Philharmonic AAM Mod) | JBL Stage A120 | |
|---|---|---|
| Price | $168 | $299 Discontinued |
| Ranked | #33 of 56 in Medium Size Bookshelf Speakers | #36 of 56 in Medium Size Bookshelf Speakers |
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) | 71Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) | 53Hz (measured, Erin’s Audio Corner) |
| Drivers | 1x 4" curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1" silk dome tweeter (replacement) | 0.75" tweeter + 5" woofer |
| Weight | 9 lbs / 4.1 kg | 10.6 lbs / 4.8 kg |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) | 83dB (measured, Erin’s Audio Corner) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) | 6 ohms |
| Crossover Frequency | 3000Hz | - |
| Dimensions | 12.6"H x 7.1"W x 8.5"D (320.0 x 180.0 x 215.0 mm) | 11.3"H x 6.8"W x 7.4"D (285.8 x 171.5 x 188.9 mm) |
| Woofer Cabinet | ported, rear | ported |
| Discontinued | - | Yes |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- JBL Studio 530 vs Parts Express Copperhead Desktop Kit
- ELAC Uni-Fi 2.0 UB52 vs Polk T15
- ELAC Uni-Fi 2.0 UB52 vs Micca RB42
- Boston Acoustics A25 vs Pioneer SP-BS22-LR (Philharmonic AAM Mod)
- JBL Stage A120 vs JBL Control 1 Pro
The Two Speakers In Full
Pioneer SP-BS22-LR (Philharmonic AAM Mod): $168
Pros: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued, budget Pioneer SP-BS22-LR: the stock tweeter is swapped for a Peerless BC25TG15 dome and a redesigned 3rd-order crossover is built to match it to the stock 4” woofer. CEA2034 spinorama shows only small variations from a flat on-axis response with some directivity error near the crossover, a marked improvement over the unmodified Pioneer, which the reviewer notes shows much more variation from flat. Distortion at 86dB SPL/1m is reasonably controlled above 200Hz, and tweeter distortion barely rises even at 96dB SPL/1m.
Cons: Some directivity error appears near the crossover frequency. Distortion climbs in the woofer’s range (below 200Hz) at both 86dB and 96dB SPL/1m. Minimum impedance dips to about 5 ohms with a couple of resonance peaks. This is a DIY project, not a finished retail product: Murphy sold ~$168 pre-built pairs for a while but no longer does, so it now requires sourcing a used/discontinued Pioneer SP-BS22-LR pair plus building the crossover and swapping the tweeter yourself. The mod itself is public domain, but there is no current turnkey way to buy this speaker.
Full Pioneer SP-BS22-LR (Philharmonic AAM Mod) review and specifications →
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) |
| Crossover Frequency | 3000Hz |
| Dimensions | 12.6"H x 7.1"W x 8.5"D (320.0 x 180.0 x 215.0 mm) |
| Drivers | 1x 4" curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1" silk dome tweeter (replacement) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) |
| Weight | 9 lbs / 4.1 kg |
| Woofer Cabinet | ported, rear |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs JBL L52 Classic
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Dynaudio X14
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Parts Express Copperhead Desktop Kit
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs JBL Stage 2 250B
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs ELAC Uni-Fi 2.0 UB52
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs ELAC BS U5
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs KEF Q100
- Pioneer SP-BS22-LR (Philharmonic AAM Mod) vs Dynaudio Emit M10
- See all 21 comparisons
JBL Stage A120: $299 Discontinued
Pros: Comes with a port bung, letting you experiment between ported and sealed configurations - the reviewer found the sound improved somewhat with the port sealed. Distortion at 96dB is broadly comparable to competitors in this price range outside of some elevated low-end THD. Wide horizontal radiation pattern for a compact bookshelf speaker in the low-to-midrange.
Cons: A pronounced “Batman”-shaped frequency response: boosted bass, a scooped midrange, and elevated treble (about 3-4dB above the midrange), driven partly by confirmed cabinet panel resonance around 800Hz-1.7kHz. Directivity shows significant back-to-back peaks and dips, making the speaker harder to correct with EQ since the off-axis sound doesn’t track the direct sound cleanly. Elevated treble that some might call “detailed” reads as an unwelcome boost to the reviewer rather than genuine resolution. Compression testing shows the low end degrading substantially at high output (102dB). Overall considered one of the weaker speakers the reviewer has tested in this class, with a competing model (Emotiva Airmotiv B1+) recommended instead at a similar price. Discontinued.
Full JBL Stage A120 review and specifications →
| Bass Extension (-10dB) | 53Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 71Hz (measured, Erin's Audio Corner) |
| Dimensions | 11.3"H x 6.8"W x 7.4"D (285.8 x 171.5 x 188.9 mm) |
| Discontinued | Yes |
| Drivers | 0.75" tweeter + 5" woofer |
| Impedance | 6 ohms |
| Sensitivity | 83dB (measured, Erin's Audio Corner) |
| Weight | 10.6 lbs / 4.8 kg |
| Woofer Cabinet | ported |
