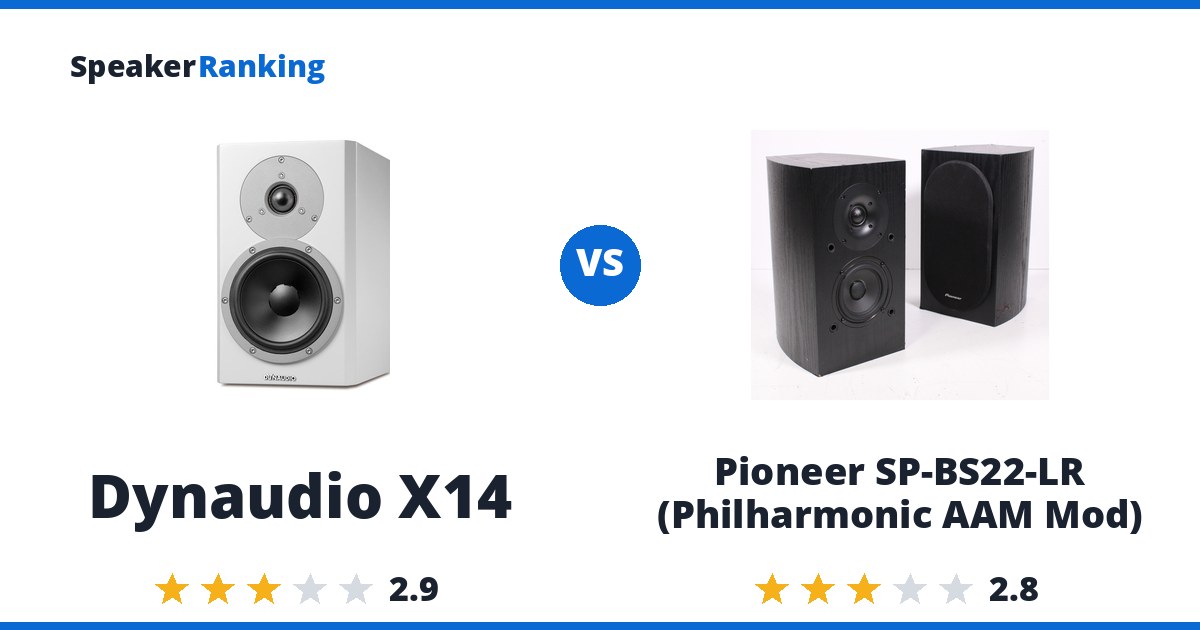

Short answer: the Dynaudio X14 for better sound quality, the Pioneer SP-BS22-LR (Philharmonic AAM Mod) for the lower price. The Dynaudio X14 ranks #32 of 56 bookshelf speakers at $1500. The Pioneer SP-BS22-LR (Philharmonic AAM Mod) ranks #33 at $168, $1332 cheaper.
The case for the Dynaudio X14: 1” silk-dome tweeter and 5.7” magnesium-silicate-polymer woofer in a compact two-way stand-mount, rated at 85dB sensitivity. The tradeoff: CEA2034 spinorama shows an uneven on-axis response from the lack of a waveguide to control tweeter beam width, plus a port resonance that boosts the lower midrange and imperfect crossover matching between the drivers.
What the Pioneer SP-BS22-LR (Philharmonic AAM Mod) gets right: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued. The catch: Some directivity error appears near the crossover frequency.
Buy the Dynaudio X14 if sound quality matters more than the price. Buy the Pioneer SP-BS22-LR (Philharmonic AAM Mod) if the price matters more than sound quality.
Specifications Side By Side
| Dynaudio X14 | Pioneer SP-BS22-LR (Philharmonic AAM Mod) | |
|---|---|---|
| Price | $1500 Discontinued | $168 |
| Ranked | #32 of 56 in Medium Size Bookshelf Speakers | #33 of 56 in Medium Size Bookshelf Speakers |
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) | 78Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) | 60Hz (measured, Audio Science Review) |
| Discontinued | Yes | - |
| Sensitivity | 82dB (2.83V/1m, measured, Audio Science Review) | 83dB (2.83V/1m, measured by Audio Science Review) |
| Impedance | 8 ohms nominal | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) |
| Frequency Response | 50Hz - 23kHz (+/-3dB) (Manufacturer specified) | - |
| Drivers | 1" silk dome tweeter, 5.7" magnesium-silicate-polymer woofer | 1x 4" curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1" silk dome tweeter (replacement) |
| Weight | 14.3 lbs / 6.5 kg each | 9 lbs / 4.1 kg |
| Dimensions | 11.2"H x 6.7"W x 10"D (285 x 170 x 255 mm) | 12.6"H x 7.1"W x 8.5"D (320.0 x 180.0 x 215.0 mm) |
| Woofer Cabinet | ported | ported, rear |
| Crossover Frequency | - | 3000Hz |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- JBL L52 Classic vs KEF Q100
- JBL L52 Classic vs ELAC Uni-Fi 2.0 UB52
- Ascend Sierra 1 v2 vs Acoustic Energy AE100 Mk2
- Dynaudio X14 vs Micca RB42
- Sony SS-CS5 M2 vs Dynaudio X14
The Two Speakers In Full
Dynaudio X14: $1500 Discontinued
Pros: 1” silk-dome tweeter and 5.7” magnesium-silicate-polymer woofer in a compact two-way stand-mount, rated at 85dB sensitivity.
Cons: CEA2034 spinorama shows an uneven on-axis response from the lack of a waveguide to control tweeter beam width, plus a port resonance that boosts the lower midrange and imperfect crossover matching between the drivers. Too much energy in the lower and upper treble reads as bright, and directivity narrows at higher frequencies rather than staying controlled. The reviewer’s verdict: out of the box, the objective performance isn’t that great, though EQ can make it a satisfying speaker. Discontinued.
Full Dynaudio X14 review and specifications →
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) |
| Dimensions | 11.2"H x 6.7"W x 10"D (285 x 170 x 255 mm) |
| Discontinued | Yes |
| Drivers | 1" silk dome tweeter, 5.7" magnesium-silicate-polymer woofer |
| Frequency Response | 50Hz - 23kHz (+/-3dB) (Manufacturer specified) |
| Impedance | 8 ohms nominal |
| Sensitivity | 82dB (2.83V/1m, measured, Audio Science Review) |
| Weight | 14.3 lbs / 6.5 kg each |
| Woofer Cabinet | ported |
As an eBay Partner, we may be compensated if you make a purchase.
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Pioneer SP-BS22-LR (Philharmonic AAM Mod): $168
Pros: This is Dennis Murphy’s “Affordable Accuracy Monitor” (AAM) mod of the discontinued, budget Pioneer SP-BS22-LR: the stock tweeter is swapped for a Peerless BC25TG15 dome and a redesigned 3rd-order crossover is built to match it to the stock 4” woofer. CEA2034 spinorama shows only small variations from a flat on-axis response with some directivity error near the crossover, a marked improvement over the unmodified Pioneer, which the reviewer notes shows much more variation from flat. Distortion at 86dB SPL/1m is reasonably controlled above 200Hz, and tweeter distortion barely rises even at 96dB SPL/1m.
Cons: Some directivity error appears near the crossover frequency. Distortion climbs in the woofer’s range (below 200Hz) at both 86dB and 96dB SPL/1m. Minimum impedance dips to about 5 ohms with a couple of resonance peaks. This is a DIY project, not a finished retail product: Murphy sold ~$168 pre-built pairs for a while but no longer does, so it now requires sourcing a used/discontinued Pioneer SP-BS22-LR pair plus building the crossover and swapping the tweeter yourself. The mod itself is public domain, but there is no current turnkey way to buy this speaker.
Full Pioneer SP-BS22-LR (Philharmonic AAM Mod) review and specifications →
| Bass Extension (-10dB) | 60Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 78Hz (measured, Audio Science Review) |
| Crossover Frequency | 3000Hz |
| Dimensions | 12.6"H x 7.1"W x 8.5"D (320.0 x 180.0 x 215.0 mm) |
| Drivers | 1x 4" curvilinear-cone woofer (stock Pioneer), 1x Peerless BC25TG15 1" silk dome tweeter (replacement) |
| Impedance | 8 ohms nominal (approx. 5 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 83dB (2.83V/1m, measured by Audio Science Review) |
| Weight | 9 lbs / 4.1 kg |
| Woofer Cabinet | ported, rear |
