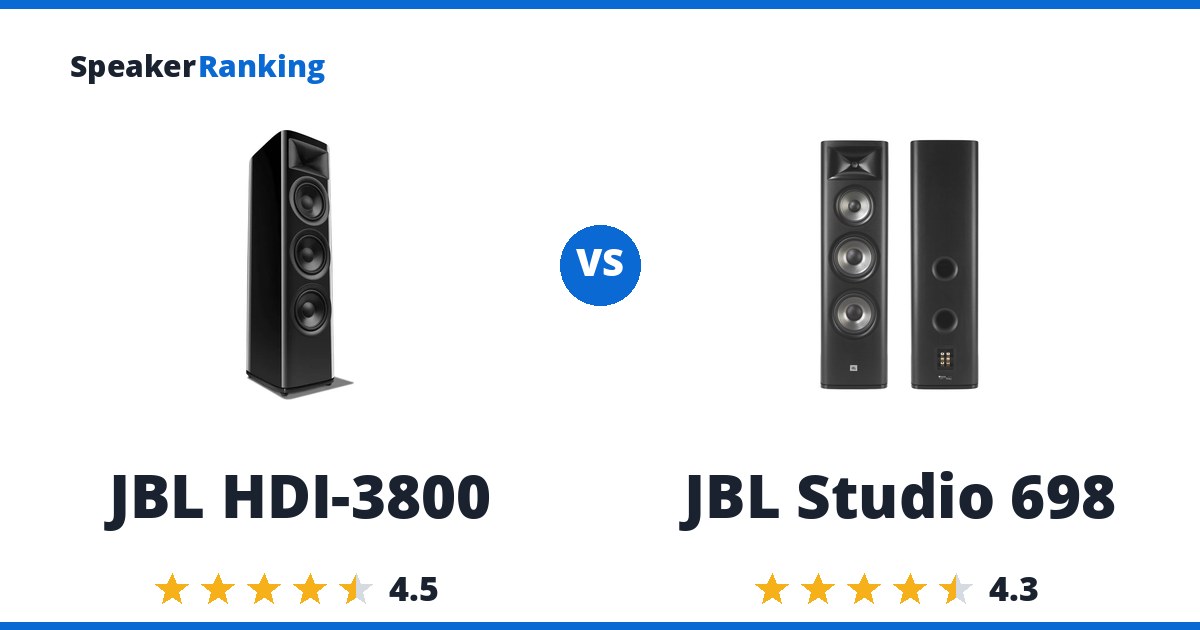

Short answer: the JBL HDI-3800 for better sound quality, the JBL Studio 698 for the lower price. The JBL HDI-3800 ranks #7 of 59 floorstanding speakers at $5000. The JBL Studio 698 ranks #18 at $699, $4301 cheaper.
The case for the JBL HDI-3800: 2410H-2 1” Teonex compression driver matched to a custom High-Definition Imaging (HDI) horn geometry achieves exceptional horizontal directivity control, high output capability, and effortless transient response. Watch for: On-axis frequency response features a narrow upper-frequency elevation around 8-10kHz, performing noticeably smoother when toed out 10-20° off-axis.
On the JBL Studio 698 side: High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. Set against that: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ.
Buy the JBL HDI-3800 if sound quality matters more than the price. Buy the JBL Studio 698 if the price matters more than sound quality.
Specifications Side By Side
| JBL HDI-3800 | JBL Studio 698 | |
|---|---|---|
| Price | $5,000.00 Discontinued | $699.00 |
| Ranked | #7 of 59 in Large Size Floorstanding Speakers | #18 of 59 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 28Hz (measured, Erin’s Audio Corner) | 34Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 37Hz (measured, Erin’s Audio Corner) | 53Hz (measured, Erin’s Audio Corner) |
| Dimensions | 43.3"H x 11.8"W x 16.4"D (1100.5 x 300.0 x 417.8 mm) | 41.7"H x 11.8"W x 15.7"D (1058 x 300 x 400 mm) |
| Discontinued | Yes | - |
| Impedance | 4 ohms nominal (3.8 ohms minimum, measured by Erin’s Audio Corner) | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin’s Audio Corner) |
| Sensitivity | 92dB (measured average, Erin’s Audio Corner) | 90dB (measured average, Erin’s Audio Corner) |
| Drivers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers |
| Weight | 83.8 lbs / 38.0 kg each | 78.9 lbs / 35.8 kg each |
| Woofer Cabinet | ported, rear | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Revel F206 vs JBL HDI-3600
- KEF R11 Meta vs Revel F206
- KEF R5 Meta vs Revel F206
- KEF Reference 203 vs JBL Studio 698
- JBL HDI-3800 vs Focal Chora 816
The Two Speakers In Full
JBL HDI-3800: $5,000.00 Discontinued
Pros: 2410H-2 1” Teonex compression driver matched to a custom High-Definition Imaging (HDI) horn geometry achieves exceptional horizontal directivity control, high output capability, and effortless transient response. Triple 8” Advanced Aluminum Matrix woofers deliver deep, authoritative bass extension down to an F3 of 37Hz and F10 of 28Hz with minimal low-frequency compression. Outstanding sensitivity (92dB SPL at 2.83V/1m) and ultra-low THD/multitone distortion allow extremely high undistorted SPL output in large home theater spaces.
Cons: On-axis frequency response features a narrow upper-frequency elevation around 8-10kHz, performing noticeably smoother when toed out 10-20° off-axis. Vertical directivity handoff across the triple woofer layout creates vertical soundstage height tilt depending on listening distance and ear height. Minimum impedance dips to 3.8 ohms, requiring high-current amplifier stability. Substantial cabinet dimensions and 38kg weight require significant room real estate. Discontinued.
Full JBL HDI-3800 review and specifications →
| Bass Extension (-10dB) | 28Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 37Hz (measured, Erin's Audio Corner) |
| Dimensions | 43.3"H x 11.8"W x 16.4"D (1100.5 x 300.0 x 417.8 mm) |
| Discontinued | Yes |
| Drivers | 1 in. 2410H-2 Teonex compression driver with HDI horn, triple 8 in. Advanced Aluminum Matrix cone woofers |
| Impedance | 4 ohms nominal (3.8 ohms minimum, measured by Erin's Audio Corner) |
| Sensitivity | 92dB (measured average, Erin's Audio Corner) |
| Weight | 83.8 lbs / 38.0 kg each |
| Woofer Cabinet | ported, rear |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
JBL Studio 698: $699.00 Amazon Crutchfield
Pros: High-Definition Imaging (HDI) horn waveguide paired with a 1” compression driver provides excellent high-frequency directivity control and seamless acoustic handoff to the 6” PolyPlas midrange. Dual 8” PolyPlas woofers deliver robust low-end authority with solid bass extension down to an F3 of 53Hz and F10 of 34Hz. High voltage sensitivity (90dB SPL at 2.83V/1m) and clean power handling provide effortless dynamic headroom and low distortion for home theater and music listening.
Cons: Measured response exhibits a prominent mid-bass emphasis bump around 80Hz that can sound overly thick or chesty in smaller rooms without DSP EQ. Treble response lacks top-octave ‘air’ above 12kHz compared to high-end dome or ribbon tweeters. Physically large, heavy cabinet (35.8 kg per speaker) requires careful room placement and a wide acoustic footprint.
Full JBL Studio 698 review and specifications →
| Bass Extension (-10dB) | 34Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 53Hz (measured, Erin's Audio Corner) |
| Dimensions | 41.7"H x 11.8"W x 15.7"D (1058 x 300 x 400 mm) |
| Drivers | 1 in. High-Definition Imaging compression driver, 6 in. PolyPlas midrange, dual 8 in. PolyPlas woofers |
| Impedance | 6 ohms nominal (4.1 ohms minimum above 80Hz, measured by Erin's Audio Corner) |
| Sensitivity | 90dB (measured average, Erin's Audio Corner) |
| Weight | 78.9 lbs / 35.8 kg each |
| Woofer Cabinet | ported, rear |
