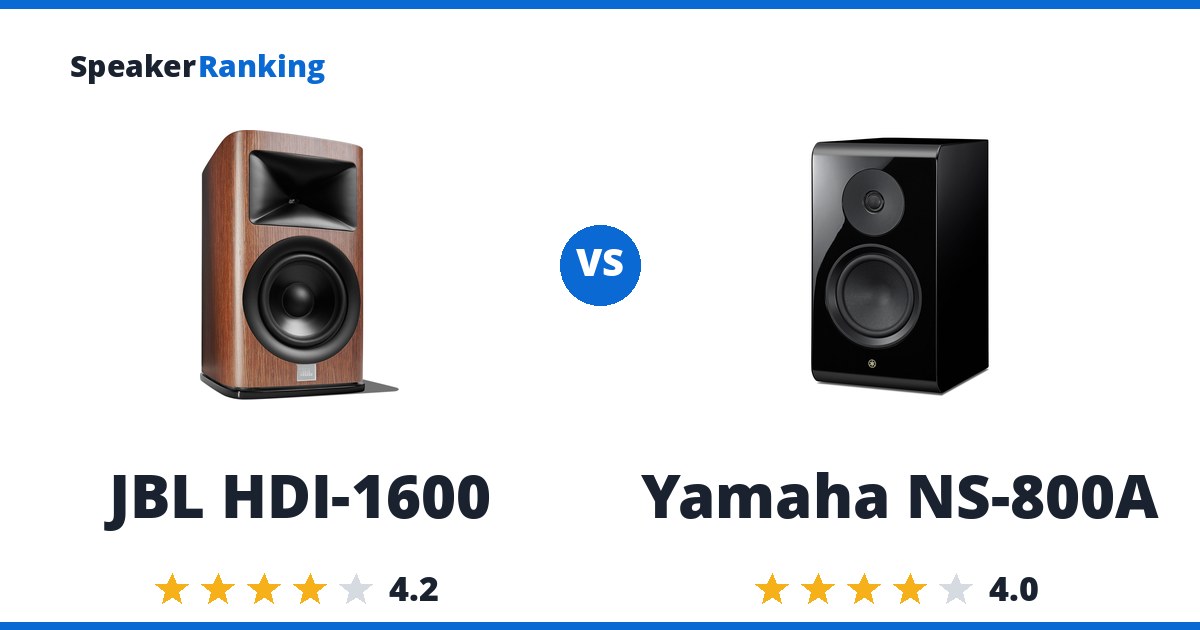

Short answer: the JBL HDI-1600 for a flatter, more accurate response; the Yamaha NS-800A for cabinet build. The HDI-1600’s spinorama is very flat through the critical mid and upper frequencies with a slight bass boost and very smooth early-window directivity, its only knock a dip above 10kHz on-axis. The Yamaha is exceptionally well built and resonance-free, but a wide 2kHz-10kHz scoop leaves it laidback and soft, well below the reviewer’s Audio First Fidelia reference.
Buy the Yamaha NS-800A, since the JBL HDI-1600 is discontinued and only worth hunting down used.
Still deciding? The full Passive Home rankings cover every ranked option.
Specifications Side By Side
| JBL HDI-1600 | Yamaha NS-800A | |
|---|---|---|
| Price | $1980 per pair Discontinued | $4,999.90 per pair |
| Ranked | #45 of 134 in Large Size Bookshelf Speakers | #58 of 134 in Large Size Bookshelf Speakers |
| Bass Extension (-3dB) | 55.7Hz (measured, Audio Science Review) | 68Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-10dB) | 40Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) | 35Hz (measured, Erin’s Audio Corner) |
| Impedance | 4 ohms nominal (measured, Audio Science Review) | 6 ohms nominal, 4.3 ohms minimum (measured above 80Hz, Erin’s Audio Corner) |
| Sensitivity | 85dB (2.83V/1m, measured, Audio Science Review) | 84.9dB (measured average 300Hz-3kHz @ 2.83V/1m, Erin’s Audio Corner; 86.5dB manufacturer specified) |
| Drivers | 1” tweeter + 6.5” woofer | 1.25” dome tweeter, 6.5” mid-woofer |
| Weight | 53.4 lbs (24.2 kg) | 28.7 lbs (13.0 kg) each |
| Dimensions | 14.6”H x 9.1”W x 11.4”D (370.0 x 230.0 x 288.9 mm) | 16.5”H x 9.1”W x 14.1”D (419.1 x 231.8 x 358.8 mm) |
| Woofer Cabinet | ported, rear | Bass reflex |
| Spinorama Preference Score | 5.37 (spinorama.org) | 4.66 |
| Spinorama Preference Score with Perfect Sub | 7.32 (spinorama.org) | 6.43 |
| DIY Kit | No | No |
| Crossover Frequency | - | 2600Hz |
| Power Handling | - | 40W nominal, 120W max |
Related Speaker Comparisons
More worthwhile head-to-heads for JBL HDI-1600:
- KEF R3 Meta vs JBL HDI-1600
- KEF Q Concerto Meta vs JBL HDI-1600
- MoFi SourcePoint 8 vs JBL HDI-1600
- Dynaudio Heritage Special vs JBL HDI-1600
- Wharfedale Linton 85 vs JBL HDI-1600
Prices on this page were last checked October 2, 2026 at 10:18 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
JBL HDI-1600: $1980 per pair Discontinued Crutchfield eBay
Pros: CEA2034 spinorama is very flat in the critical mid-to-upper frequencies, with a slight bass boost that should have a good subjective effect and very smooth early-window directivity. Predicted in-room response in a simulated average listening room closely tracks the reviewer’s own preferred target curve. Measured bass extension of 55.7Hz (-3dB), with a measured sensitivity of 85dB.
Cons: A dip appears above 10kHz on-axis. Cumulative spectral decay (waterfall) shows some messiness around the crossover along with a 700Hz resonance. Harmonic distortion rises to nearly 2% right at the 1.9kHz crossover point at 96dB SPL/1m. Discontinued.
Full JBL HDI-1600 review and specifications →
| Bass Extension (-10dB) | 40Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) |
|---|---|
| Bass Extension (-3dB) | 55.7Hz (measured, Audio Science Review) |
| DIY Kit | No |
| Dimensions | 14.6”H x 9.1”W x 11.4”D (370.0 x 230.0 x 288.9 mm) |
| Drivers | 1” tweeter + 6.5” woofer |
| Impedance | 4 ohms nominal (measured, Audio Science Review) |
| Sensitivity | 85dB (2.83V/1m, measured, Audio Science Review) |
| Spinorama Preference Score | 5.37 (spinorama.org) |
| Spinorama Preference Score with Perfect Sub | 7.32 (spinorama.org) |
| Weight | 53.4 lbs (24.2 kg) |
| Woofer Cabinet | ported, rear |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- JBL HDI-1600 vs Aalto Speakers Aalto 3 Passive
- JBL HDI-1600 vs Arendal 1723 Bookshelf S THX
- JBL HDI-1600 vs ELAC Debut 3.0 DB63
- JBL HDI-1600 vs Emotiva Airmotiv XB2
- JBL HDI-1600 vs Revel Concerta2 M16
- JBL HDI-1600 vs ELAC Uni-Fi Reference UBR62
- JBL HDI-1600 vs ELAC VELA BS 403
- JBL HDI-1600 vs Revel M126Be
- See all 29 comparisons
Yamaha NS-800A: $4,999.90 per pair The Music Room eBay
Pros: Exceptionally well-built cabinet with no internal resonance issues at all: confirmed clean in both burst decay and impedance measurements. Good, wide directivity (~75 degrees horizontal) that stays consistent enough to EQ successfully. Distortion is low, staying under 3% at 96dB, and dynamic range holds up well until right near its 102dB limit. A shallower, higher-frequency bass rolloff profile (F3 68Hz, F10 35Hz) means it can be placed closer to the wall (about a foot) without turning boomy, actually gaining bass presence rather than losing it. Measured bass extension of 68Hz (-3dB), with a measured sensitivity of 84.9dB.
Cons: A wide, roughly 2kHz-10kHz scoop in the upper-midrange/lower-treble gives it a laidback, soft, low-attack character: notably worse than the reviewer’s Audio First Fidelia reference in an A/B comparison. On top of that, treble breaks up badly above 10kHz, swinging up as much as 8dB: a significant, named flaw. Sounds inconsistently voiced as a result (bright on some material like cymbals and shakers, dull/laidback on vocals and instrument attack) until corrected with real parametric EQ (the reviewer needed a +2dB boost around 4.5kHz at Q0.5 plus taming the treble spike to bring it to life) combined with near-wall placement and 30-degree toe-out. Without that combination, it’s a tough sale for a $5000 bookshelf speaker.
Full Yamaha NS-800A review and specifications →
| Bass Extension (-10dB) | 35Hz (measured, Erin’s Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 68Hz (measured, Erin’s Audio Corner) |
| Crossover Frequency | 2600Hz |
| DIY Kit | No |
| Dimensions | 16.5”H x 9.1”W x 14.1”D (419.1 x 231.8 x 358.8 mm) |
| Drivers | 1.25” dome tweeter, 6.5” mid-woofer |
| Impedance | 6 ohms nominal, 4.3 ohms minimum (measured above 80Hz, Erin’s Audio Corner) |
| Power Handling | 40W nominal, 120W max |
| Sensitivity | 84.9dB (measured average 300Hz-3kHz @ 2.83V/1m, Erin’s Audio Corner; 86.5dB manufacturer specified) |
| Spinorama Preference Score | 4.66 |
| Spinorama Preference Score with Perfect Sub | 6.43 |
| Weight | 28.7 lbs (13.0 kg) each |
| Woofer Cabinet | Bass reflex |
