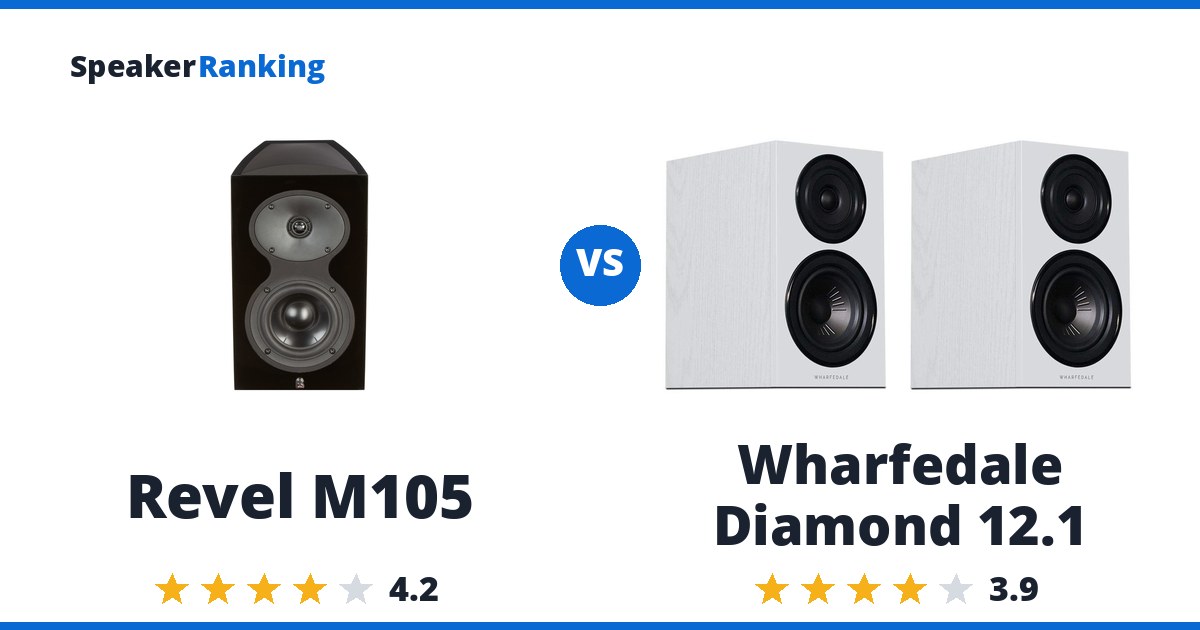

Short answer: the Revel M105 for better sound quality, the Wharfedale Diamond 12.1 for the lower price. The Revel M105 ranks #8 of 56 bookshelf speakers at $1500. The Wharfedale Diamond 12.1 ranks #13 at $599, $901 cheaper.
What the Revel M105 offers: CEA2034 spinorama shows an essentially flat on-axis response with only a small 5kHz peak, a smooth listening window, and clean waterfall decay. Watch for: Low nominal impedance demands a capable amplifier that can handle low-impedance loads.
What the Wharfedale Diamond 12.1 gets right: A budget two-way bookshelf speaker (5” polypropylene woofer, 1” textile dome tweeter) that measures well for its price: harmonic distortion at 86dB stays under 1% THD down to about 60Hz. The catch: A dip of about 3dB in the 1-3kHz crossover region (on-axis, in the predicted in-room response, and even off-axis) gives the speaker a soft, “laid-back” character that noticeably saps attack and transient bite from drums.
Buy the Revel M105 if sound quality matters more than the price. Buy the Wharfedale Diamond 12.1 if the price matters more than sound quality.
Specifications Side By Side
| Revel M105 | Wharfedale Diamond 12.1 | |
|---|---|---|
| Price | $1500 Discontinued | $599 Discontinued |
| Ranked | #8 of 56 in Medium Size Bookshelf Speakers | #13 of 56 in Medium Size Bookshelf Speakers |
| Bass Extension (-3dB) | 75Hz (measured, Audio Science Review) | 61Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-10dB) | 58Hz (measured, Audio Science Review) | 46Hz (measured, Erin’s Audio Corner) |
| Discontinued | Yes | Yes |
| Sensitivity | 85dB (2.83V/1m, measured, Audio Science Review) | 84dB (measured by Erin’s Audio Corner; 87dB manufacturer specified) |
| Impedance | 8 ohms nominal, low minimum | 8 ohms nominal (3.9 ohms minimum above 80Hz, measured, Erin’s Audio Corner) |
| Frequency Response | 60Hz - 44kHz (+/-3dB) (Manufacturer specified) | - |
| Drivers | 5.25" aluminum cone woofer, 1" aluminum tweeter with acoustic lens waveguide | 5" advanced polypropylene cone woofer, 1" textile dome tweeter |
| Weight | 15.4 lbs / 7 kg each | 15 lbs / 6.8 kg each |
| Dimensions | 14"H x 7.9"W x 9.8"D (355.6 x 200.7 x 248.9 mm) | 12.2"H x 7"W x 10.9"D (310 x 178 x 277 mm) |
| Woofer Cabinet | ported, rear | ported |
| Crossover Frequency | - | 2.6kHz |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- Arendal 1961 Monitor vs Moondrop M4P MTM
- Ascend Sierra 1 v2 vs Moondrop M4P MTM
- KEF LS50 Meta vs Moondrop M4P MTM
- Wharfedale Super Denton vs Wharfedale Diamond 12.1
- KEF LS50 Meta vs Wharfedale Diamond 12.1
The Two Speakers In Full
Revel M105: $1500 Discontinued
Pros: CEA2034 spinorama shows an essentially flat on-axis response with only a small 5kHz peak, a smooth listening window, and clean waterfall decay. Wide horizontal dispersion gives flexibility with toe-in. The reviewer called it reference-quality performance with minor EQ correction applied.
Cons: Low nominal impedance demands a capable amplifier that can handle low-impedance loads. Bass distortion runs high in the 80-250Hz range from woofer displacement, and maximum output is limited compared to larger designs. Discontinued.
Full Revel M105 review and specifications →
| Bass Extension (-10dB) | 58Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 75Hz (measured, Audio Science Review) |
| Dimensions | 14"H x 7.9"W x 9.8"D (355.6 x 200.7 x 248.9 mm) |
| Discontinued | Yes |
| Drivers | 5.25" aluminum cone woofer, 1" aluminum tweeter with acoustic lens waveguide |
| Frequency Response | 60Hz - 44kHz (+/-3dB) (Manufacturer specified) |
| Impedance | 8 ohms nominal, low minimum |
| Sensitivity | 85dB (2.83V/1m, measured, Audio Science Review) |
| Weight | 15.4 lbs / 7 kg each |
| Woofer Cabinet | ported, rear |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Wharfedale Diamond 12.1: $599 Discontinued
Pros: A budget two-way bookshelf speaker (5” polypropylene woofer, 1” textile dome tweeter) that measures well for its price: harmonic distortion at 86dB stays under 1% THD down to about 60Hz, genuinely good for a 5” mid-woofer. Wide horizontal radiation of about ±60° up to roughly 5kHz before the tweeter starts to beam. Tonally smooth and easy to listen to at moderate volumes, with a pleasant, non-fatiguing character the reviewer said he’d happily recommend to someone who wants noticeably better fit, finish and looks than typical speakers in the $300-400 range. A high-pass crossover around 80Hz meaningfully cleans up midrange multitone distortion, so pairing it with a subwoofer helps more than usual for a speaker this size.
Cons: A dip of about 3dB in the 1-3kHz crossover region (on-axis, in the predicted in-room response, and even off-axis) gives the speaker a soft, “laid-back” character that noticeably saps attack and transient bite from drums, guitar and other percussive material - possibly an intentional BBC-style dip, but one the reviewer would still prefer tuned flat. Vertical directivity is unusually tight for this class of speaker, holding together only within about ±5° of the tweeter axis before a real hole opens up in the response, so seating height matters a lot more than on most bookshelf designs. Diffraction artifacts around 3kHz and 5kHz show up as differences between the listening-window and on-axis curves. Distortion climbs well past acceptable levels at higher output - harmonic distortion exceeds 3% around 150Hz at 96dB (versus under 1% at 86dB), multitone distortion tops 10% at 96dB/1m, and real compression sets in between 96-102dB (about 1.5dB of lost dynamic range around 300Hz at 102dB/1m, roughly equivalent to 92dB for a pair at 4m in a room) - a genuine limitation on how loud or how far away this speaker can be pushed. Measured average sensitivity (84dB) runs a few dB below the 87dB spec. Only a 5” woofer, so a subwoofer is required for real bass. Discontinued.
Full Wharfedale Diamond 12.1 review and specifications →
| Bass Extension (-10dB) | 46Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 61Hz (measured, Erin's Audio Corner) |
| Crossover Frequency | 2.6kHz |
| Dimensions | 12.2"H x 7"W x 10.9"D (310 x 178 x 277 mm) |
| Discontinued | Yes |
| Drivers | 5" advanced polypropylene cone woofer, 1" textile dome tweeter |
| Impedance | 8 ohms nominal (3.9 ohms minimum above 80Hz, measured, Erin's Audio Corner) |
| Sensitivity | 84dB (measured by Erin's Audio Corner; 87dB manufacturer specified) |
| Weight | 15 lbs / 6.8 kg each |
| Woofer Cabinet | ported |
