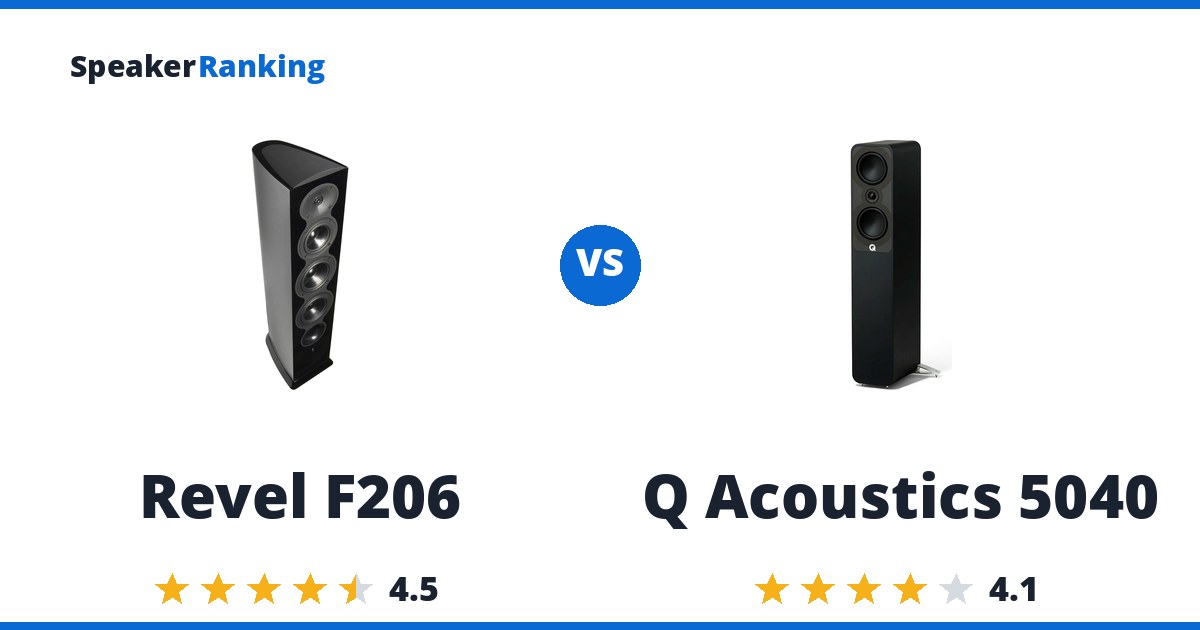

Short answer: the Revel F206 for better sound quality, the Q Acoustics 5040 for the lower price. The Revel F206 ranks #17 of 56 floorstanding speakers at $2000. The Q Acoustics 5040 ranks #25 at $1236.49, $763.51 cheaper.
The case for the Revel F206: CEA2034 spinorama shows a pretty even on-axis response. The tradeoff: Some directivity error and a small peak around 4.5kHz show up alongside the directivity error around 3kHz.
On the Q Acoustics 5040 side: C3 (Continuous Curved Cone) driver profile technology provides smooth midrange integration, controlled cone breakup, and improved bass damping. Set against that: Free-field frequency response exhibits a noticeable mid-bass scoop around 200Hz (~6dB lower than mean SPL).
Buy the Revel F206 if sound quality matters more than the price. Buy the Q Acoustics 5040 if the price matters more than sound quality.
Specifications Side By Side
| Revel F206 | Q Acoustics 5040 | |
|---|---|---|
| Price | $2000 used, Discontinued | $1,236.49 |
| Ranked | #17 of 56 in Large Size Floorstanding Speakers | #25 of 56 in Large Size Floorstanding Speakers |
| Bass Extension (-10dB) | 34Hz (measured, Audio Science Review) | 39Hz (measured, Erin’s Audio Corner) |
| Bass Extension (-3dB) | 60Hz (measured, Audio Science Review) | 70Hz (measured, Erin’s Audio Corner) |
| Dimensions | 40.3"H x 8.4"W x 12.2"D (1023.6 x 213.4 x 309.9 mm) | 38.1"H x 11.5"W x 14.2"D (967 x 293 x 361 mm) |
| Discontinued | Yes | - |
| Impedance | 4 ohms nominal (3.3 ohms minimum, measured by Audio Science Review) | 6 ohms nominal (3.0 ohms minimum, measured by Erin’s Audio Corner) |
| Drivers | Dual 6.5" (16.5 cm) Aluminum Cone, Cast-frame Woofers, 5.25" (13.3 cm) Aluminum Cone, Cast-frame Midrange, 1" (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide | 0.88 in. decoupled dome tweeter, twin 5.0 in. C3 Continuous Curved Cone woofers |
| Sensitivity | 87dB (measured, Audio Science Review) | 91.5dB (measured average, Erin’s Audio Corner) |
| Weight | 57.3 lbs / 26 kg each | 39.7 lbs / 18.0 kg each |
| Woofer Cabinet | ported, front | ported, rear |
Related Speaker Comparisons
More useful head-to-heads from the same speaker class:
- PSB Imagine T65 vs Definitive Technology BP-9020
- Revel F208 vs Revel Concerta2 F35
- PSB Imagine T65 vs ELAC DF63
- Revel F206 vs Polk Audio Reserve R700
- Revel F206 vs Emotiva Airmotiv T2+
The Two Speakers In Full
Revel F206: $2000 used, Discontinued
Pros: CEA2034 spinorama shows a pretty even on-axis response. Predicted in-room response is excellent, with a smooth downward slope. Horizontal beamwidth of about ±65 degrees is wide, if a bit uneven. Distortion is very nice at 86dB SPL/1m, falling below the frequency range where human hearing is most sensitive, and stays excellent even at 96dB SPL/1m. Near-field measurements of the individual drivers show nice suppression of port and woofer resonances. Really amazing value for the performance.
Cons: Some directivity error and a small peak around 4.5kHz show up alongside the directivity error around 3kHz. Vertical directivity means listening position needs to stay within the tweeter axis, though the reviewer notes there is some leeway. Minimum impedance dips to 3.3 ohms, calling for an amplifier comfortable with a demanding load. Discontinued.
Full Revel F206 review and specifications →
| Bass Extension (-10dB) | 34Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 60Hz (measured, Audio Science Review) |
| Dimensions | 40.3"H x 8.4"W x 12.2"D (1023.6 x 213.4 x 309.9 mm) |
| Discontinued | Yes |
| Drivers | Dual 6.5" (16.5 cm) Aluminum Cone, Cast-frame Woofers, 5.25" (13.3 cm) Aluminum Cone, Cast-frame Midrange, 1" (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide |
| Impedance | 4 ohms nominal (3.3 ohms minimum, measured by Audio Science Review) |
| Sensitivity | 87dB (measured, Audio Science Review) |
| Weight | 57.3 lbs / 26 kg each |
| Woofer Cabinet | ported, front |
As an eBay Partner, we may be compensated if you make a purchase.
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
Q Acoustics 5040: $1,236.49 Amazon
Pros: C3 (Continuous Curved Cone) driver profile technology provides smooth midrange integration, controlled cone breakup, and improved bass damping. High voltage sensitivity (91.5dB SPL at 2.83V/1m) allows loud listening with low-to-moderate amplifier wattage. Cabinet features Point-to-Point (P2P) internal bracing and Helmholtz Pressure Equalizer (HPE) tubes to suppress internal standing waves and panel vibrations.
Cons: Free-field frequency response exhibits a noticeable mid-bass scoop around 200Hz (~6dB lower than mean SPL), causing an F3 of 70Hz (F10 of 39Hz) in open space and requiring boundary placement (11-22 inches from front wall) to reinforce upper bass output. Measurements indicate an enclosure resonance near 300Hz visible in sound power data. Minimum impedance drops to 3.0 ohms, demanding a stable 4-ohm rated amplifier despite high sensitivity.
Full Q Acoustics 5040 review and specifications →
| Bass Extension (-10dB) | 39Hz (measured, Erin's Audio Corner) |
|---|---|
| Bass Extension (-3dB) | 70Hz (measured, Erin's Audio Corner) |
| Dimensions | 38.1"H x 11.5"W x 14.2"D (967 x 293 x 361 mm) |
| Drivers | 0.88 in. decoupled dome tweeter, twin 5.0 in. C3 Continuous Curved Cone woofers |
| Impedance | 6 ohms nominal (3.0 ohms minimum, measured by Erin's Audio Corner) |
| Sensitivity | 91.5dB (measured average, Erin's Audio Corner) |
| Weight | 39.7 lbs / 18.0 kg each |
| Woofer Cabinet | ported, rear |
