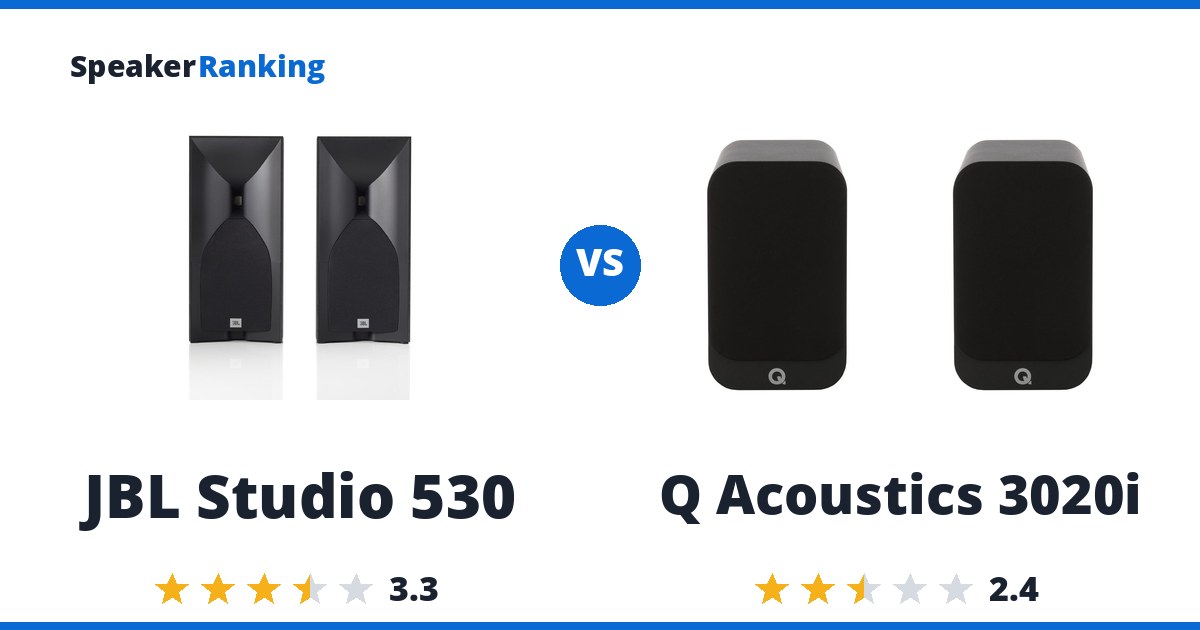

Short answer: the JBL Studio 530, which has fewer resonance problems. The Q Acoustics 3020i is attractively styled with recessed binding posts, but its on-axis response rises toward the top and dips in the 2-4kHz crossover region, with a significant resonance at 366Hz in the waterfall plot. The Studio 530 ranks #45 of 92 against the 3020i’s #73 of 92, its main fault a 1.4kHz tweeter resonance plus a 2kHz bump.
Buy the JBL Studio 530 only if you find one used in good condition; both are discontinued, and it is the better rated of the two. For a new speaker, start with the Ascend Acoustics HTM-200SE2 instead.
Want more options? Browse the full Passive Home rankings.
Specifications Side By Side
| JBL Studio 530 | Q Acoustics 3020i | |
|---|---|---|
| Price | $399 per pair Discontinued | $314.99 per pair Discontinued |
| Ranked | #45 of 92 in Medium Size Bookshelf Speakers | #73 of 92 in Medium Size Bookshelf Speakers |
| Bass Extension (-3dB) | 73.2Hz (measured, Audio Science Review) | 82.0Hz (measured, Audio Science Review) |
| Bass Extension (-10dB) | 40Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) | 49.8Hz (measured, Audio Science Review) |
| Crossover Frequency | 1.5kHz | 2.4kHz |
| Dimensions | 18.4”H x 8.4”W x 8.7”D (467 x 214 x 222 mm) | 10.9”H x 6.7”W x 11.1”D (278 x 170 x 282 mm) |
| Impedance | 6 ohms nominal (4 ohms minimum, measured by Audio Science Review) | 6 ohms nominal, 4 ohms minimum |
| Sensitivity | ~85dB (measured by Audio Science Review) | 86dB (2.83V/1m, manufacturer specified) |
| Drivers | 5.25” (130mm) PolyPlas™ cone woofer with SFG magnet, 1” (25mm) compression driver with Teonex® diaphragm on Bi-Radial® horn | 125mm (5”) bass driver, 22mm (0.9”) tweeter |
| Weight | 17 lbs (7.7 kg) each | 10.6 lbs (4.8 kg) each |
| Woofer Cabinet | ported | ported, reflex |
| Spinorama Preference Score | 5.21 (spinorama.org) | 3.86 |
| Spinorama Preference Score with Perfect Sub | 7.29 (spinorama.org) | 6.38 |
| DIY Kit | No | No |
Related Speaker Comparisons
How JBL Studio 530 compares with other leading options:
- JBL Studio 530 vs Ascend Sierra 1 v2
- KEF LS50 Meta vs JBL Studio 530
- JBL Studio 530 vs Arendal 1961 Monitor
- JBL Studio 530 vs Moondrop M4P MTM
- Revel M105 vs JBL Studio 530
Prices on this page were last checked October 3, 2026 at 10:26 PM UTC. Product prices and availability are accurate as of that date/time and are subject to change; the price and availability shown on Amazon at the time of purchase will apply to the purchase of this product.
As an eBay Partner, we may be compensated if you make a purchase.
The Two Speakers In Full
JBL Studio 530: $399 per pair Discontinued eBay
Pros: CEA2034 spinorama shows a fairly flat on-axis response. Predicted in-room response is very smooth aside from the high-frequency roll-off. Measured bass extension of 73.2Hz (-3dB), with a measured sensitivity of 85dB.
Cons: A peak around 1.4kHz is attributed to a tweeter resonance, and shows up as a distinct spike in harmonic distortion at that frequency along with a second resonance-driven bump around 2kHz. Response rolls off in the high frequencies and the tuning is a bit bass-shy overall. Cumulative spectral decay (waterfall) shows the same 1kHz-region resonances lingering in time. Discontinued.
Full JBL Studio 530 review and specifications →
| Bass Extension (-10dB) | 40Hz (derived, log-interpolated between spinorama.org -9dB/-12dB points) |
|---|---|
| Bass Extension (-3dB) | 73.2Hz (measured, Audio Science Review) |
| Crossover Frequency | 1.5kHz |
| DIY Kit | No |
| Dimensions | 18.4”H x 8.4”W x 8.7”D (467 x 214 x 222 mm) |
| Drivers | 5.25” (130mm) PolyPlas™ cone woofer with SFG magnet, 1” (25mm) compression driver with Teonex® diaphragm on Bi-Radial® horn |
| Impedance | 6 ohms nominal (4 ohms minimum, measured by Audio Science Review) |
| Sensitivity | ~85dB (measured by Audio Science Review) |
| Spinorama Preference Score | 5.21 (spinorama.org) |
| Spinorama Preference Score with Perfect Sub | 7.29 (spinorama.org) |
| Weight | 17 lbs (7.7 kg) each |
| Woofer Cabinet | ported |
- Links
- Reviews, Comparisons and Sound Samples
- Head-to-Head Comparisons
- JBL Studio 530 vs ELAC Debut 2.0 B5.2
- JBL Studio 530 vs Sony SS-CS5 M2
- JBL Studio 530 vs Paradigm Monitor SE Atom
- JBL Studio 530 vs JBL Stage 250B
- JBL Studio 530 vs Boston Acoustics A25
- JBL Studio 530 vs Dynaudio Emit M10
- JBL Studio 530 vs ELAC BS U5
- JBL Studio 530 vs Polk Audio XT15
- See all 37 comparisons
Q Acoustics 3020i: $314.99 per pair Discontinued eBay
Newer model: the Q Acoustics 3020c. It’s likely to perform similarly, though we don’t have measurements to confirm that yet.
Pros: UK-designed (Finkteam) with attractive styling, including recessed binding posts and custom connectors. Vertical directivity is good enough that the tweeter doesn’t need to be exactly at ear level. With EQ correction, especially high-frequency shelving and a sub-40Hz high-pass filter, Amir found performance “improves substantially.”. Measured bass extension of 82.0Hz (-3dB).
Cons: On-axis response shows a rising upper-frequency trend and a dip in the 2-4kHz crossover region alongside two resonance-related dips; a significant resonance appears at 366Hz in the waterfall plot. Horizontal directivity is narrow and uneven due to a woofer/tweeter beamwidth mismatch. Amir cautions the speaker is “merely a distortion generator” if played too low, and its low impedance demands a quality amplifier. Without EQ, Amir “can’t recommend the Q Acoustics 3020i.”. Discontinued; Q Acoustics now sells the 3030i and 3010c in its place.
Full Q Acoustics 3020i review and specifications →
| Bass Extension (-10dB) | 49.8Hz (measured, Audio Science Review) |
|---|---|
| Bass Extension (-3dB) | 82.0Hz (measured, Audio Science Review) |
| Crossover Frequency | 2.4kHz |
| DIY Kit | No |
| Dimensions | 10.9”H x 6.7”W x 11.1”D (278 x 170 x 282 mm) |
| Drivers | 125mm (5”) bass driver, 22mm (0.9”) tweeter |
| Impedance | 6 ohms nominal, 4 ohms minimum |
| Sensitivity | 86dB (2.83V/1m, manufacturer specified) |
| Spinorama Preference Score | 3.86 |
| Spinorama Preference Score with Perfect Sub | 6.38 |
| Weight | 10.6 lbs (4.8 kg) each |
| Woofer Cabinet | ported, reflex |
